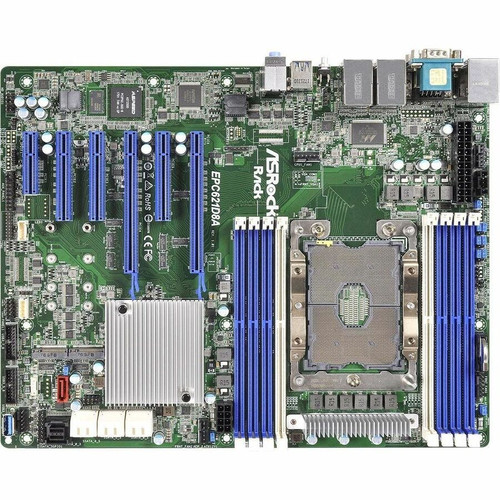

ASRock Server Motherboard Intel Chipset ATX LGA3647 Socket P Xeon Support Optane Memory Ready Processor LGA-3647 DDR4 EPC621D8A
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: Intel
Chipset Model: C621
Total Processor Supported: 1
Processor Socket: Socket P LGA-3647
Processor Generation Supported: 2nd Gen
Processor Supported: Xeon
Number of Memory Slots: 8
Memory Form Factor: DIMM,RDIMM,LRDIMM
Memory Speed Supported: 2933 MHz,2666 MHz,2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 3.0
Total Number of USB Ports: 4
Number of USB 3.2 Gen 1 Ports: 4
VGA: Yes
Number of Network (RJ-45) Ports: 5
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 3
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX server motherboard
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | EPC621D8A |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | EPC621D8A |
| Product Name | EPC621D8A Server Motherboard |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Total Processor Supported | 1 |
| Processor Socket | Socket P LGA-3647 |
| Processor Generation Supported | 2nd Gen |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | DIMM,RDIMM,LRDIMM |
| Memory Speed Supported | 2933 MHz,2666 MHz,2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Total Number of PCI Express Slots | 6 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 3 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
