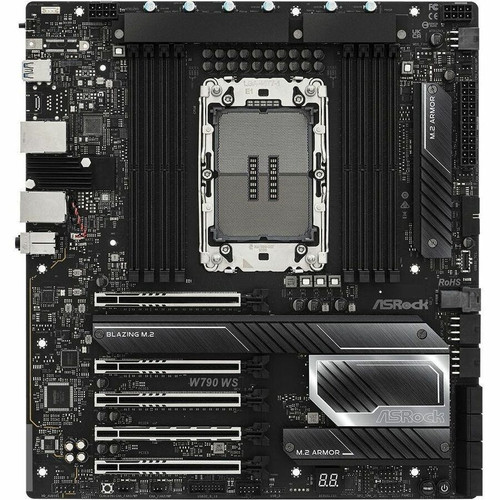

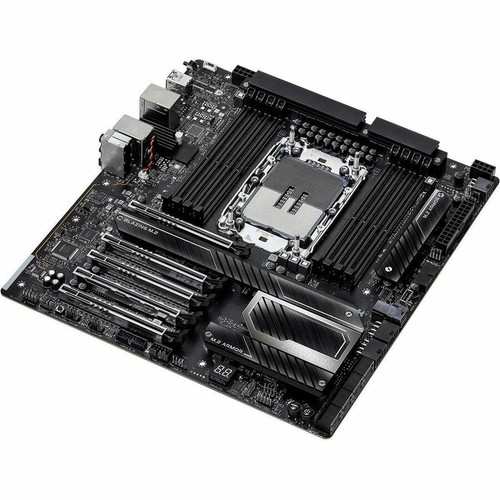

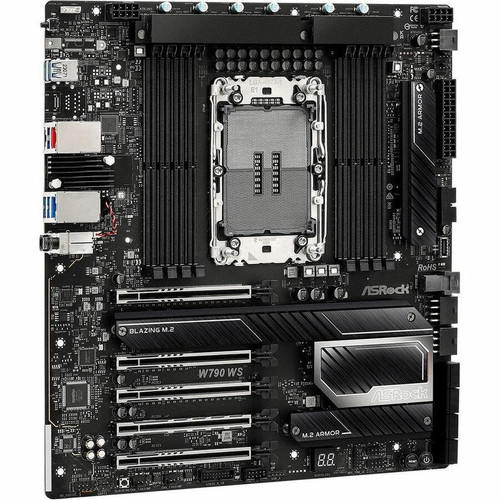

ASRock WS Extended ATX Workstation Motherboard Intel Socket LGA-4677 Xeon Processor Supported W790 WS R2.0 W790 WS R2.0 W790 WS R2.0
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- W790 WS R2.0 Gaming Desktop Motherboard
- 1 x User Manual
- 1 x I/O Shield
- 4 x SATA Data Cables
- 1 x CPU Carrier for LGA 4677 E1A
- 1 x CPU Carrier for LGA 4677 E1B
- 4 x Screws for M.2 Sockets
- 2 x Standoffs for M.2 Sockets
Marketing Information:
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
The server grade ultra low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
DDR5 ECC Memory Support
This workstation motherboard supports 8 DIMMs Quad-Channel DDR5 RDIMM ECC Memory overclocking with max capacity of 2048GB and is able to automatically detected and corrected data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
4 x PCIe Gen5 x16
This workstation motherboard supports 4 PCIe Gen5 x16 slots, deliver all the performance of PCIe Gen5 to your GPU and add-on cards. Fulfill all the professional design, deep learning, simulation and rendering applications.
Chipset Manufacturer: Intel
Chipset Model: W790
Total Processor Supported: 1
Processor Socket: Socket LGA-4677
Processor Generation Supported: 4th Gen
Processor Supported: Xeon
Number of Memory Slots: 8
Memory Form Factor: DIMM,RDIMM
Maximum Memory Supported: 2 TB
Memory Technology: DDR5 SDRAM
Error Checking: ECC
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,10,5
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Total Number of PCI Express Slots: 5
Number of PCI Express x16 Slots: 5
PCI Express Standard: PCI Express 5.0,PCI Express 4.0
Total Number of USB Ports: 5
Number of USB 3.2 Gen 1 Ports: 3
S/PDIF: Yes
Number of Network (RJ-45) Ports: 2
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 8
Number of Onboard USB 2.0 Ports: 3
Form Factor: Extended ATX
Width: 12" (304.80 mm)
Depth: 10.90" (276.86 mm)
Package Contents:
Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready)
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- Extended ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | W790 WS R2.0 |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | W790 WS R2.0 |
| Product Name | W790 WS R2.0 Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-4677 |
| Processor Generation Supported | 4th Gen |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | DIMM,RDIMM |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10,5 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x16 Slots | 5 |
| PCI Express Standard | PCI Express 5.0,PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 2.0 Ports | 3 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12" (304.80 mm) |
| Depth | 10.90" (276.86 mm) |
| Miscellaneous | |
| Package Contents |
|
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
