Asus 90AR0072-M00010 NUC 14 Pro Barebone Mini PC - Intel Core Ultra Platform - 96GB DDR5 Max - 2. 5GbE - Wi-Fi 6E - Thunderbolt 4 - Windows 11 Ready
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The NUC 14 Pro is engineered with a focus on connectivity and expansion. It features two M.2 slots for NVMe storage, one SATA interface for additional drives, and a dedicated expansion bay for adding specialized modules. Networking is robust, with 2.5 Gigabit Ethernet for high-bandwidth local connections and Wi-Fi 6E (802.11ax) for wireless flexibility, backed by Bluetooth 5.3 for peripheral pairing.

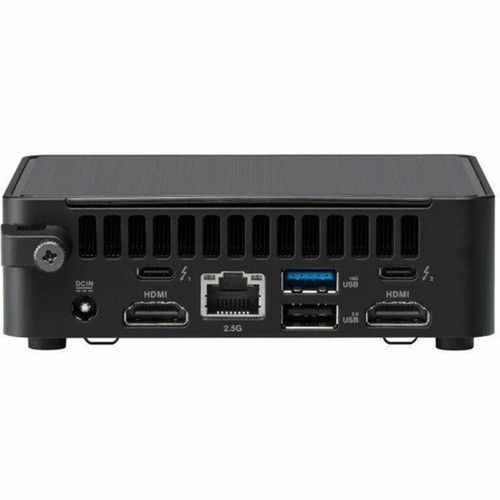

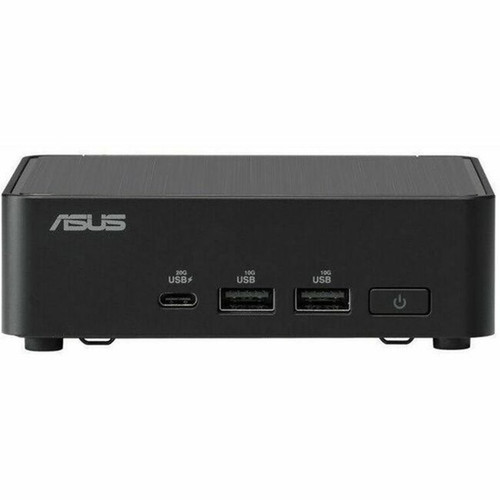

Front-panel connectivity includes a high-speed USB 3.2 Gen 2x2 Type-C port, while the rear panel hosts multiple USB 3.2 Gen 2 ports and two Thunderbolt 4 ports for docking stations, external GPUs, or fast storage arrays. Shared DDR5 graphics memory ensures adequate performance for display outputs and light graphical tasks without a discrete GPU.
Relevant factors for this section include Processor Supported, 64-bit Processing, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system eliminates the guesswork of compatibility, providing a tested foundation that supports Windows 11 out of the box. The inclusion of DDR5 memory technology not only boosts bandwidth but also improves power efficiency, contributing to the system's overall reliability in always-on scenarios.
Compact, Dependable Form Factor
Measuring just 1.61" x 5.67" x 4.41" and weighing under 1.7 lbs, this mini PC fits seamlessly into tight spaces while delivering consistent performance for 24/7 operation.
- VESA-mount compatible for hidden installations
- Low-power design reduces heat and noise
- Black finish blends into professional environments
Modern Connectivity Suite
Equipped with Thunderbolt 4, 2.5GbE, and Wi-Fi 6E, the NUC 14 Pro ensures fast data transfers, reliable networking, and future-ready wireless performance.
- Thunderbolt 4 supports 40Gbps data and dual 4K displays
- 2.5GbE ideal for NAS or server connections
- Wi-Fi 6E reduces interference in congested networks
Deployment / Use Cases
IT departments can deploy these units as thin clients or light-duty servers, leveraging the 2.5GbE port for fast network storage access. The barebone approach allows cost-effective standardization across departments while permitting hardware upgrades as needs evolve—such as adding more RAM for virtualized environments or faster NVMe storage for database applications.
For educational labs, healthcare carts, or industrial control panels, the NUC 14 Pro's fanless-optional design (depending on configuration) and rugged construction ensure dependable operation in diverse environments.
Digital Signage & Kiosk Solutions
The small size and VESA-mount capability make this mini PC perfect for driving displays in retail, hospitality, or corporate lobbies, where space is limited but performance must be unwavering.
Office & Remote Workstations
With Thunderbolt 4 docking support and robust networking, the NUC 14 Pro serves as a compact desktop for productivity suites, video conferencing, and multi-monitor setups without desk clutter.
Physical Profile

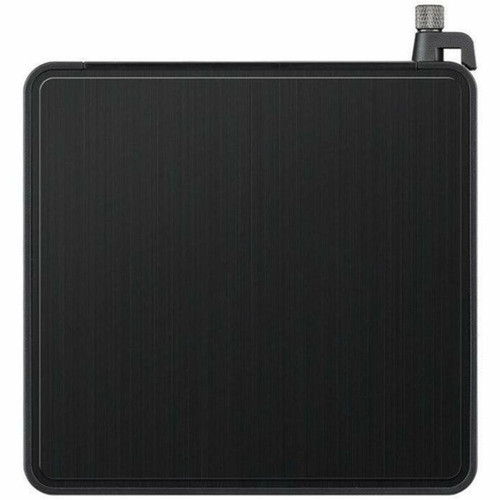

Encased in a sleek black chassis, the NUC 14 Pro measures 1.61" (41 mm) in height, 5.67" (144 mm) in width, and 4.41" (112 mm) in depth, with a weight of approximately 1.65 lb (750 g). This compact form factor allows for flexible placement—behind monitors, under desks, or mounted on walls using standard VESA brackets. The minimalist design prioritizes airflow and accessibility, with tool-less entry for easy upgrades to memory and storage.
- Width
- 5.67" (144 mm)
- Depth
- 4.41" (112 mm)
- Height
- 1.61" (41 mm)
- Weight
- 1.65 lb (750 g)
Highlights
- Supports Intel Core Ultra 7, Core Ultra 5, and Core 3 processors for scalable performance
- Expandable up to 96GB of DDR5-5600 memory across two slots
- Features 2.5 Gigabit Ethernet and Wi-Fi 6E (802.11ax) for high-speed wired and wireless networking
- Includes two Thunderbolt 4 ports for docking, external GPUs, or fast storage
- Offers five USB ports, including a front-panel USB 3.2 Gen 2x2 Type-C for quick access
- Provides two M.2 slots and one SATA interface for flexible storage configurations
- Compact mini PC form factor ideal for space-constrained deployments
- Windows 11 supported, ready for modern productivity and creative applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90AR0072M00010 |
| Brand Name | Asus |
| Product Line | NUC 14 Pro |
| Product Model | NUC14RVHi3 |
| Product Name | NUC 14 Pro NUC14RVHi3 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Supported | Core Ultra 7,Core Ultra 5,Core 3 |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| Display & Graphics | |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen 2x2 Type C |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 11 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 1.61" (41 mm) |
| Width | 5.67" (144 mm) |
| Depth | 4.41" (112 mm) |
| Weight (Approximate) | 1.65 lb (750 g) |
User Manual
FAQ
What processors are compatible with the Asus NUC 14 Pro Barebone?
The NUC 14 Pro supports Intel Core Ultra 7, Core Ultra 5, and Core 3 processors. These CPUs feature integrated Arc graphics and AI acceleration, making the system suitable for tasks ranging from office productivity to AI-enhanced applications and light multimedia work. You will need to purchase the processor separately and install it according to the provided guidelines.
How much memory can I install, and what type does it use?
This barebone system supports up to 96GB of DDR5 SDRAM across two memory slots, using the DDR5-5600/PC5-44800 standard. DDR5 memory offers higher bandwidth and improved power efficiency compared to previous generations, which enhances overall system responsiveness and multitasking capability for demanding workloads.
What storage options are available on the NUC 14 Pro?
The NUC 14 Pro includes two M.2 interfaces for NVMe SSDs and one SATA interface for additional storage drives. NVMe controllers provide fast data transfer speeds ideal for operating systems and applications, while the SATA port allows for cost-effective bulk storage. You can configure multiple drives to balance speed and capacity based on your needs.
What networking and connectivity features does it include?
Networking features include a 2.5 Gigabit Ethernet port for high-bandwidth wired connections, Wi-Fi 6E (IEEE 802.11ax) for reliable wireless performance, and Bluetooth 5.3 for peripheral connectivity. The system also has five USB ports (three USB 3.2 Gen 2 and one USB 3.2 Gen 2x2 Type-C) and two Thunderbolt 4 ports for versatile device expansion.
Is this mini PC ready to use out of the box?
As a barebone system, the NUC 14 Pro requires you to add a compatible processor, memory, storage, and operating system. It does not include these components pre-installed. This approach allows for customization to meet specific performance and budget requirements, making it ideal for IT professionals and system builders.
What are the physical dimensions and mounting options?
The NUC 14 Pro measures 1.61" (41 mm) in height, 5.67" (144 mm) in width, and 4.41" (112 mm) in depth, weighing approximately 1.65 lb (750 g). Its compact size and standard VESA mount compatibility enable flexible installation behind monitors, under desks, or on walls, making it suitable for environments where space is limited.
