Asus 90MR00Q1-M00040 PN63-S1-BB3000XFD Barebone Mini PC - Intel Core i3-1115G4 3GHz Dual-core - 64GB DDR4 - NVMe - 2. 5GbE - WiFi 6 - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the PN63-S1-BB3000XFD is an 11th Generation Intel Core i3-1115G4 processor featuring two cores with Intel Hyper-Threading technology, a 3.0GHz base clock, and turbo boost up to 4.10GHz. This efficient CPU delivers responsive performance for everyday productivity applications, web browsing, and light multitasking while maintaining low power consumption.
The system supports up to 64GB of DDR4-3200 memory across two accessible SODIMM slots, providing ample capacity for most business applications. Storage flexibility comes from dual M.2 interfaces supporting NVMe SSDs for maximum performance and a SATA interface for additional storage expansion. The integrated Intel UHD Graphics shares system memory and supports dual display output through HDMI and Mini DisplayPort connections.
Relevant factors for this section include Number of Processors Installed, Processor Socket, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This Asus barebone mini PC combines modern connectivity with compact design to deliver a versatile computing platform suitable for various deployment scenarios. The system's thoughtful engineering provides both performance headroom and installation flexibility in a package that occupies minimal desk or mounting space.
Modern Connectivity Suite
Includes 2.5 Gigabit Ethernet for high-speed wired networking, WiFi 6 (802.11ax) for wireless connectivity, and Bluetooth for peripheral connections. The front-panel USB Type-C port provides convenient access for modern devices and fast data transfers.
- 2.5GbE Ethernet
- WiFi 6 (802.11ax)
- Front USB Type-C
- Bluetooth 5.0
Compact Deployment Ready
With dimensions of just 2.28" × 4.72" × 5.12" and weighing only 1.65 pounds, this mini PC can be deployed in space-constrained environments. The black chassis features a professional appearance suitable for office settings.
- Mini PC form factor
- Professional black finish
- VESA mount compatible
- Energy Star certified
Deployment / Use Cases
The PN63-S1-BB3000XFD barebone system is engineered for environments where space efficiency and reliable performance are equally important. Its compact dimensions and modern connectivity make it suitable for various business and light commercial applications where traditional desktop towers would be impractical.
This system excels as a digital signage controller, thin client host, or point-of-sale terminal where its small footprint allows discreet installation behind displays or under counters. The dual display support enables extended desktop configurations for productivity workstations, while the 2.5GbE networking provides sufficient bandwidth for network-intensive applications. Educational institutions can deploy these systems in computer labs or classrooms where space is limited but modern computing capabilities are required.
Office Productivity Station
Configure with 8-16GB RAM and an NVMe SSD for responsive performance with office applications, email, web browsing, and video conferencing. The compact size fits easily on crowded desks or can be mounted out of sight.
Digital Signage & Kiosk Controller
The small form factor and dual display support make this system ideal for driving digital signage displays, interactive kiosks, or information terminals in retail, hospitality, or corporate environments.

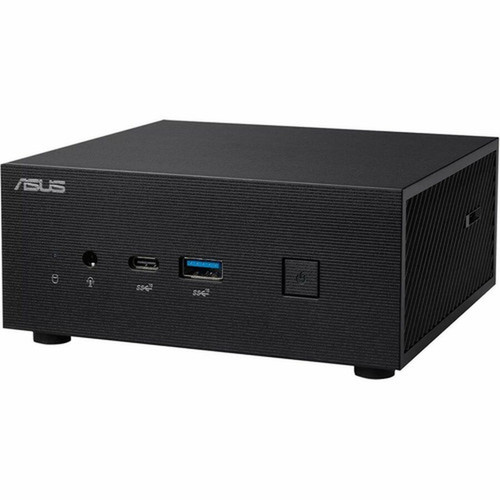

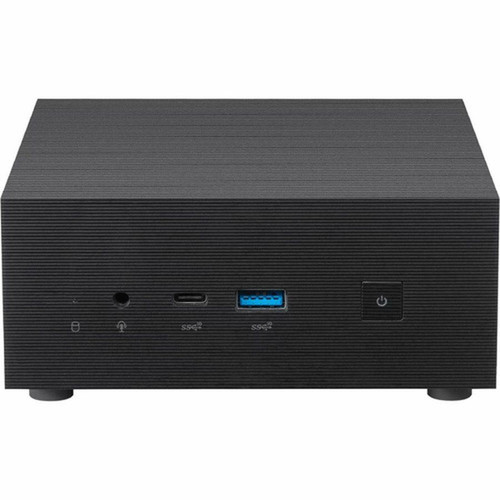

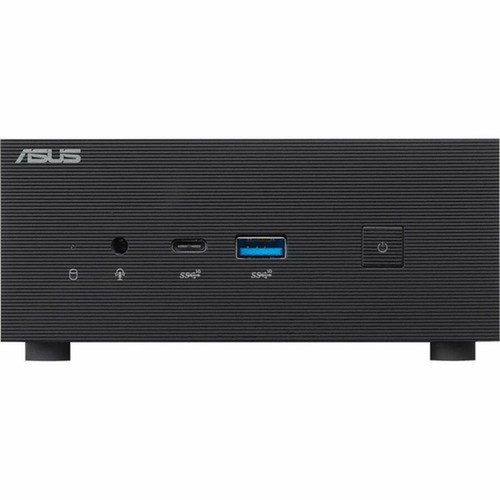

Physical Profile
The PN63-S1-BB3000XFD features a compact black chassis measuring 2.28 inches in height, 4.72 inches in width, and 5.12 inches in depth, with a total weight of approximately 1.65 pounds. This mini PC form factor enables flexible placement options including desktop use, VESA mounting behind compatible displays, or installation in confined spaces where traditional computers cannot fit. The professional black finish maintains a clean appearance in office environments, while the efficient 90W power supply minimizes energy consumption and heat output.
- Width
- 4.72" (120 mm)
- Depth
- 5.12" (130 mm)
- Height
- 2.28" (58 mm)
- Weight
- 1.65 lb (750 g)
What's in the Box
This barebone system includes the essential components needed to begin your build, with additional memory, storage, and operating system to be added according to your specific requirements.
Highlights
- 11th Gen Intel Core i3-1115G4 dual-core processor with 3.0GHz base clock and 4.10GHz turbo
- Supports up to 64GB DDR4-3200 memory across two accessible SODIMM slots
- Dual M.2 interfaces for NVMe SSD storage plus SATA interface for additional expansion
- 2.5 Gigabit Ethernet, WiFi 6 (802.11ax), and Bluetooth 5.0 connectivity
- Four USB ports including front-panel USB 3.2 Gen2 Type-C for modern devices
- HDMI and Mini DisplayPort outputs for dual display configurations
- Compact mini PC form factor (2.28" × 4.72" × 5.12") with professional black finish
- Windows 11 Pro, Windows 11 Home, and Windows 10 Pro operating system support
- Energy Star certified and RoHS compliant for environmental responsibility
- 90W power supply for efficient operation in always-on deployment scenarios
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90MR00Q1M00040 |
| Brand Name | Asus |
| Product Series | PN63-S1 |
| Product Model | PN63-S1-BB3000XFD |
| Product Name | PN63-S1-BB3000XFD Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Socket | Socket BGA-1449 |
| Processor Type | Core i3 |
| Processor Generation | 11th Gen |
| Processor Model | i3-1115G4 |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 3 GHz |
| Maximum Turbo Speed | 4.10 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| Display & Graphics | |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 1 |
| Mini DisplayPort | Yes |
| Operating System | |
| Operating System Supported | Windows 11 Pro,Windows 11 Home,Windows 10 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Weight (Approximate) | 1.65 lb (750 g) |
| Miscellaneous | |
| Package Contents | PN63-S1-BB3000XFD Barebone System Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What components do I need to add to make this barebone system operational?
To complete this Asus PN63-S1-BB3000XFD barebone system, you will need to install DDR4 SODIMM memory modules (up to 64GB supported across two slots), at least one storage device (NVMe SSD recommended for the M.2 interfaces or 2.5" SATA drive), and a licensed operating system such as Windows 11 Pro. The system includes the processor, motherboard, chassis, power adapter, and cooling solution pre-installed.
What wireless connectivity standards does this mini PC support?
This Asus barebone system features integrated WiFi 6 (802.11ax) wireless networking for high-speed wireless connections with improved efficiency in crowded environments. It also includes Bluetooth 5.0 technology for connecting wireless peripherals such as keyboards, mice, headsets, and speakers without requiring additional adapters.
Can this system drive dual monitors simultaneously?
Yes, the PN63-S1-BB3000XFD supports dual display output through its HDMI (rear) and Mini DisplayPort connections. The integrated Intel UHD Graphics can drive two independent displays at resolutions up to 4K, making this system suitable for extended desktop configurations in productivity environments or digital signage applications requiring multiple screens.
What type of memory is compatible with this barebone system?
This system requires DDR4 SODIMM memory modules operating at 3200MHz (PC4-25600). It features two memory slots supporting a maximum capacity of 64GB (32GB per slot). For optimal performance, use matched pairs of memory modules from the same manufacturer with identical specifications when populating both slots.
Is this mini PC suitable for mounting behind a display?
Yes, the compact dimensions (2.28" H × 4.72" W × 5.12" D) and lightweight design (1.65 lb) make this system ideal for VESA mounting behind compatible monitors or displays. The professional black finish and efficient thermal design allow for discreet installation in digital signage, kiosk, or space-constrained office environments where traditional desktop towers would be impractical.
What operating systems are officially supported on this hardware?
Asus officially supports Windows 11 Pro, Windows 11 Home, and Windows 10 Pro on the PN63-S1-BB3000XFD barebone system. The hardware includes necessary drivers for these operating systems, and the 11th Gen Intel processor with TPM 2.0 support meets the requirements for Windows 11 installation. Always verify specific application compatibility requirements for your intended use case.
