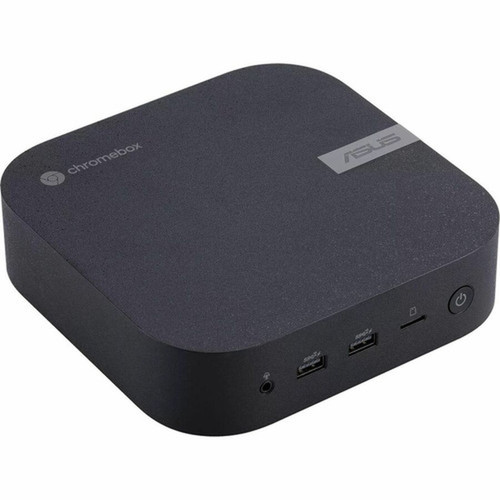

Asus 90MS02N1-M002X0 Chromebox 5 Mini PC - Intel Celeron 7305 - 8 GB DDR4 RAM - 128 GB PCIe NVMe SSD - 2. 5GbE - Thunderbolt 4
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Chromebox 5 is engineered for efficiency and connectivity in a minimal physical envelope. The Intel Celeron 7305 CPU provides balanced performance for cloud-based applications and multitasking, supported by 8 GB of DDR4 SDRAM configured as a single module for straightforward potential upgrades.
Storage is handled by a 128 GB M.2 NVMe SSD using the PCI Express 4.0 x4 interface, delivering significantly faster read/write speeds than traditional SATA drives for quicker boot times and application launches. Graphics are powered by Intel UHD Graphics with shared system memory, capable of driving HD displays and handling everyday visual tasks without a discrete GPU.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This Chromebox combines a highly compact design with modern connectivity and efficient performance, reducing desk clutter while maintaining capability for business-critical tasks. Its cloud-native architecture simplifies IT management through centralized updates and security policies.
Space-Saving Design
Measuring just 1.81" x 6.56" x 6.53" and weighing under 1.8 pounds, the Chromebox 5 can be mounted behind displays or tucked away, freeing up valuable workspace without sacrificing functionality.
- VESA mount compatible
- Minimal footprint
- Lightweight construction
Modern Connectivity Suite
With Thunderbolt 4, USB 3.2 Gen 2 ports, and 2.5 Gigabit Ethernet, this device supports high-speed data transfer, fast networking, and connection to advanced peripherals like docks and external storage.
- Thunderbolt 4 for 40 Gbps throughput
- 2.5GbE for network-intensive tasks
- Multiple USB generations for compatibility
Energy-Efficient Operation
The 65 W power supply and Energy Star certification reflect low power consumption during typical use, reducing electricity costs and environmental impact in always-on deployments.
- 65 W maximum draw
- Energy Star qualified
- RoHS compliant for reduced hazardous materials
Deployment / Use Cases
The Asus Chromebox 5 is particularly well-suited for environments where traditional desktop towers are impractical but full computing capability is still required. Its small size and Chrome OS management make it adaptable to various business scenarios.
In office settings, it serves as a primary workstation for employees whose workflows revolve around web applications, Google Workspace, and SaaS tools. The fast NVMe storage and capable memory configuration ensure smooth performance across multiple browser tabs and collaborative documents.
Digital Signage & Kiosks
The compact form factor and low power consumption make this Chromebox ideal for driving displays in retail, hospitality, or corporate lobbies. Chrome OS allows for remote management and content updates without local intervention.
- Mounts behind displays
- Remote management via Chrome Enterprise
- Low heat output for enclosed spaces
Conference Room & Collaboration Hubs
Deploy as a meeting room PC for wireless presentations, video conferencing, and document collaboration. Thunderbolt 4 supports docking stations for additional peripherals, while 2.5GbE ensures stable video streams.
- Supports Google Meet and web conferencing
- Fast connectivity for shared resources
- Minimal setup and maintenance
Physical Profile
The Chromebox 5 employs a minimalist dark chassis with dimensions of 1.81" (45.9 mm) in height, 6.56" (166.5 mm) in width, and 6.53" (165.8 mm) in depth. Weighing approximately 1.76 pounds (800 grams), it is easily portable between locations or for temporary setups.
The compact design includes a security slot for Kensington-style locks to prevent theft in public or shared environments. The small footprint allows placement horizontally or vertically, with ventilation designed to maintain stable thermals without audible fan noise during typical operation.
- Width
- 6.56" (166.50 mm)
- Depth
- 6.53" (165.80 mm)
- Height
- 1.81" (45.90 mm)
- Weight
- 1.76 lb (800 g)
What's in the Box
The package includes all essential components for immediate setup and operation.
Package contents include Chromebox5-sc018unent-o Chromebox Power Adapter, Chromebox5-sc018unent-o Chromebox. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Celeron 7305 processor for efficient everyday computing
- 8 GB DDR4 SDRAM supports smooth multitasking and application handling
- 128 GB PCIe NVMe 4.0 SSD delivers fast boot times and responsive performance
- 2.5 Gigabit Ethernet provides high-speed wired network connectivity
- Thunderbolt 4 port enables 40 Gbps data transfer and peripheral expansion
- Mini PC form factor saves space and allows flexible placement
- Chrome OS offers cloud-first architecture with built-in security
- Energy Star certified for reduced power consumption
- Security slot for physical theft prevention
- RoHS compliant with restricted hazardous materials
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90MS02N1M002X0 |
| Brand Name | Asus |
| Product Line | Chromebox 5 |
| Product Model | Chromebox5-sc018unent-o |
| Product Name | Chromebox5-sc018unent-o Chromebox |
| Product Type | Chromebox |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Processor Model | 7305 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Configuration | 1 x 8GB |
| Storage | |
| Total Solid State Drive Capacity | 128 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | RTL8125BG |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Number of Thunderbolt 4 Ports | 1 |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 1.81" (45.90 mm) |
| Width | 6.56" (166.50 mm) |
| Depth | 6.53" (165.80 mm) |
| Weight (Approximate) | 1.76 lb (800 g) |
| Miscellaneous | |
| Package Contents | Chromebox5-sc018unent-o Chromebox Power Adapter |
| Features | Security Slot |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What operating system does this Chromebox use?
This Asus Chromebox 5 runs Chrome OS, Google's cloud-centric operating system designed for fast boot times, automatic updates, and built-in security. Chrome OS is optimized for web applications, Google Workspace, and Android apps, providing a streamlined experience with minimal local maintenance and centralized management capabilities for business environments.
Can the memory or storage be upgraded in this Chromebox?
The Chromebox 5 comes with 8 GB of DDR4 SDRAM soldered to the motherboard, which is not user-upgradable. Storage is provided by a 128 GB M.2 NVMe SSD that may be replaceable depending on the specific chassis design, though opening the unit could void the warranty. For most users, the configured memory and storage are adequate for Chrome OS workloads.
What display outputs does this Mini PC support?
While specific video outputs aren't detailed in the specifications, Chromebox devices typically include HDMI and/or DisplayPort connections capable of supporting HD and often 4K displays. The Intel UHD Graphics can drive multiple monitors, making this unit suitable for dual-screen office setups or digital signage applications requiring extended desktop configurations.
How does the 2.5 Gigabit Ethernet benefit business use?
The 2.5 Gigabit Ethernet port provides network speeds up to 2.5 times faster than standard Gigabit Ethernet, improving performance for data-intensive tasks like large file transfers, video streaming, and cloud backups. This is particularly valuable in office environments with high-bandwidth demands or when the Chromebox is used for network-attached storage access or video conferencing systems.
What is the purpose of the Thunderbolt 4 port?
The Thunderbolt 4 port offers versatile high-speed connectivity supporting data transfer rates up to 40 Gbps, dual 4K display output, and power delivery. It allows connection to Thunderbolt docks, external GPUs, fast storage arrays, and other advanced peripherals, significantly expanding the Chromebox's capabilities beyond its compact form factor for professional workstation setups.
Is this Chromebox suitable for always-on deployments like digital signage?
Yes, the Chromebox 5 is well-suited for always-on applications due to its Energy Star certification, efficient 65 W power supply, and compact passive-cooled design that minimizes heat output. Chrome OS allows remote management and scheduling of content updates, while the security slot provides physical theft prevention, making it reliable for unattended digital signage, kiosks, or information displays in public spaces.
