Asus BNUC13BRFA200B01I NUC 13 Rugged Barebone System - Intel Atom x7211E - 16GB DDR5 - NVMe - 2. 5GbE - Wi-Fi 6 - Windows 11
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The technical foundation of this barebone system centers on Intel's Atom x7211E processor, which provides 64-bit computing capabilities with a thermal design power of just 6 watts. This low-power design makes the system suitable for always-on applications and environments where heat management is critical.
Memory architecture utilizes a single DDR5 SDRAM slot supporting up to 16GB, delivering faster data transfer rates compared to previous DDR generations. The integrated Intel UHD Graphics shares system memory, providing adequate visual performance for business applications and multimedia content.
Storage flexibility comes through dual M.2 interfaces supporting both NVMe and Serial ATA controllers, allowing for high-speed solid-state storage configurations. This combination of modern memory and storage technologies ensures responsive system performance in compact form factors.
Relevant factors for this section include Processor Type, Processor Model, 64-bit Processing, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system combines modern computing technologies with practical deployment features. The inclusion of both 2.5 Gigabit Ethernet and Wi-Fi 6 networking provides flexible connectivity options for different installation environments, from office networks to retail locations.
Windows 11 compatibility ensures access to current software ecosystems and security features, while the low 6-watt thermal design power contributes to energy efficiency in always-on applications.
Compact Rugged Design

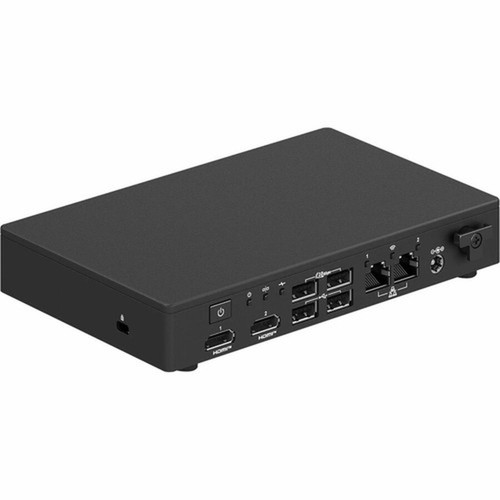

The NUC 13 Rugged chassis measures just 6.85" wide by 4.25" deep, making it ideal for wall mounting, kiosk integration, or space-limited deployments where traditional desktop systems won't fit.
- Small footprint deployment
- Rugged construction
- Portable when needed
Modern Connectivity Suite

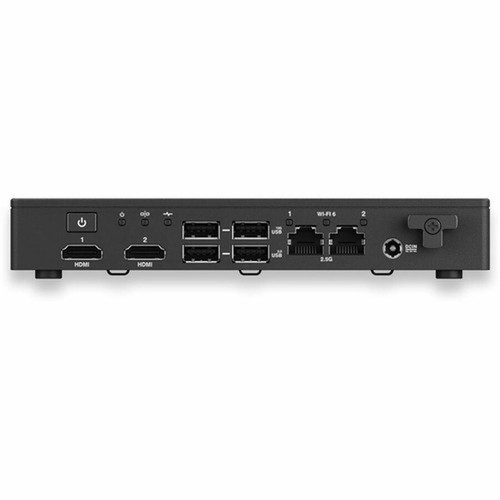

Dual 2.5 Gigabit Ethernet ports provide high-speed wired networking, while Wi-Fi 6 wireless connectivity ensures reliable network access in various deployment scenarios.
- 2.5GbE for fast data transfer
- Wi-Fi 6 for wireless flexibility
- Six USB ports for peripherals
Deployment / Use Cases
The Asus NUC 13 Rugged Barebone System excels in environments where space efficiency and reliability take priority over maximum computing power. Its compact dimensions allow installation in locations where traditional computers cannot fit, while the rugged design provides durability for continuous operation.
Common deployment scenarios include edge computing applications, thin client replacements, and specialized industrial computing where the small form factor and modern connectivity options provide practical solutions. The barebone configuration allows organizations to customize memory and storage to match specific application requirements while maintaining consistency in hardware platform and management.
Digital Signage & Kiosks
The compact size and rugged construction make this system ideal for digital signage installations, information kiosks, and interactive displays in public spaces, retail environments, or corporate lobbies.
Office Productivity Stations
With Windows 11 support and adequate connectivity, this system serves well as a compact office workstation for document processing, web applications, and communication tools in space-constrained work areas.
Physical Profile
Measuring 6.85 inches wide by 4.25 inches deep, this barebone system occupies minimal desk or mounting space. The compact chassis design facilitates installation in confined areas while maintaining accessibility to ports and interfaces for system management.
The rugged construction ensures durability in various environments, making the system suitable for deployments where standard desktop computers might be vulnerable to physical stress or environmental factors.
- Width
- 6.85" (174 mm)
- Depth
- 4.25" (108 mm)
What's in the Box
This barebone system package includes the essential components needed for deployment while allowing customization of memory and storage to match specific requirements.
Highlights
- Intel Atom x7211E processor for efficient computing performance
- Supports up to 16GB DDR5 memory for faster data transfer
- Dual M.2 interfaces with NVMe and SATA controller support
- 2.5 Gigabit Ethernet with dual RJ-45 ports for high-speed networking
- Wi-Fi 6 (802.11ax) wireless connectivity
- Six USB ports including USB 3.2 Gen 1 and USB 2.0 interfaces
- Windows 11 operating system compatibility
- Compact rugged chassis measuring 6.85" x 4.25"
- Low 6-watt thermal design power for energy efficiency
- RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | BNUC13BRFA200B01I |
| Brand Name | Asus |
| Product Line | NUC 13 Rugged |
| Product Name | NUC 13 Rugged Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Atom |
| Processor Model | x7211E |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 1 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| I/O Expansions | |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 11 |
| Power Description | |
| Thermal Design Power | 6 W |
| Physical Characteristics | |
| Width | 6.85" (174 mm) |
| Depth | 4.25" (108 mm) |
| Miscellaneous | |
| Package Contents | NUC 13 Rugged Barebone System AC Adapter |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What processor does this Asus NUC 13 Rugged system use?
This barebone system features the Intel Atom x7211E processor, which provides 64-bit computing capabilities with a thermal design power of just 6 watts. This processor delivers efficient performance for everyday computing tasks while maintaining low power consumption suitable for always-on applications and space-constrained deployments.
How much memory can I install in this barebone system?
The Asus NUC 13 Rugged supports up to 16GB of DDR5 SDRAM through a single memory slot. DDR5 technology provides faster data transfer rates compared to previous memory generations, enhancing overall system responsiveness. This memory configuration is suitable for office productivity applications, digital signage, and light-duty computing tasks.
What storage options does this system support?
This barebone system includes two M.2 interfaces that support both NVMe and Serial ATA storage controllers. This allows installation of high-speed NVMe solid-state drives for optimal performance or more economical SATA-based storage solutions. The dual interface support provides flexibility in configuring storage capacity and performance to match specific application requirements.
What networking capabilities does this system offer?
The system provides comprehensive networking with dual 2.5 Gigabit Ethernet ports for high-speed wired connections and Wi-Fi 6 (IEEE 802.11ax) wireless connectivity. The 2.5GbE ports enable faster data transfer for network-intensive applications, while Wi-Fi 6 offers improved wireless performance and reliability compared to previous wireless standards.
Is this system compatible with Windows 11?
Yes, the Asus NUC 13 Rugged Barebone System supports Windows 11 operating system. This compatibility ensures access to current software ecosystems, security features, and user interface enhancements. The system's hardware specifications meet the requirements for running Windows 11 effectively in business and light-computing environments.
What makes this system suitable for rugged deployments?
The NUC 13 Rugged chassis is designed for durability in various deployment environments. Its compact dimensions of 6.85" wide by 4.25" deep allow installation in space-constrained locations, while the rugged construction provides physical durability. The system's low 6-watt thermal design power contributes to reliable operation in environments where heat management is important, making it suitable for digital signage, kiosks, and industrial computing applications.
