Asus BNUC13BRFA400B00IW NUC 13 Rugged Barebone System - Intel Atom x7425E Quad-core - 16GB DDR5 RAM - Windows 11 Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the NUC 13 Rugged is the Intel Atom x7425E, a quad-core processor with a base clock of 1.50 GHz and turbo boost up to 3.40 GHz, offering 64-bit processing for modern workloads. The platform supports up to 16 GB of DDR5 SDRAM via a single memory slot, operating at DDR5-4800 (PC5-38400) speeds for responsive multitasking.
Storage flexibility is provided through NVMe and Serial ATA controllers, with two M.2 interfaces enabling fast solid-state drives. Graphics are handled by shared DDR5 memory, sufficient for display output and basic graphical tasks. The system’s 90 W power supply and 12 W thermal design power emphasize its efficiency and suitability for always-on deployments.
Relevant factors for this section include Processor Type, Processor Model, Processor Core, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system combines compact industrial design with modern connectivity, making it a versatile choice for embedded and edge computing solutions. Its rugged chassis and comprehensive port selection ensure reliable performance in environments where space and durability are priorities.
Modern Memory and Storage
DDR5 RAM and NVMe interfaces deliver faster data access and improved system responsiveness compared to older generations, supporting demanding applications efficiently.
- DDR5-4800 memory for high bandwidth
- Dual M.2 slots for NVMe SSDs
- Serial ATA support for additional storage
Robust Connectivity Suite
Dual 2.5 Gigabit Ethernet ports, Wi-Fi 6, and Bluetooth provide wired and wireless networking options, while six USB ports accommodate peripherals without system shutdown.
- 2.5GbE for high-speed networking
- Wi-Fi 6 for reliable wireless
- Multiple USB 3.2 and USB 2.0 ports
Deployment / Use Cases
The Asus NUC 13 Rugged Barebone System is engineered for scenarios where a small, dependable computing footprint is essential. Its industrial-grade build and wide operating system compatibility make it suitable for continuous operation in controlled environments.
Common applications include digital signage displays in retail or hospitality, interactive kiosks in public spaces, edge computing nodes for IoT data processing, and light industrial control systems. The included VESA mount allows for discreet behind-monitor installation, maximizing space utilization in tight setups.
Digital Signage and Kiosks
The compact size and HDMI output enable seamless integration into display setups, driving content reliably for advertising or information points.
Edge Computing and IoT
With efficient processing and robust networking, this system can handle data aggregation and light analytics at the network edge, reducing latency and bandwidth needs.
Physical Profile

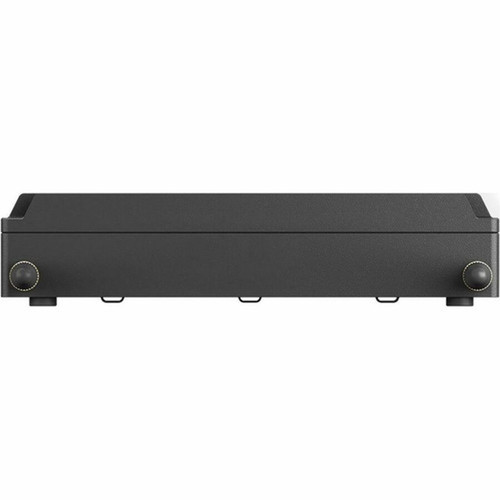

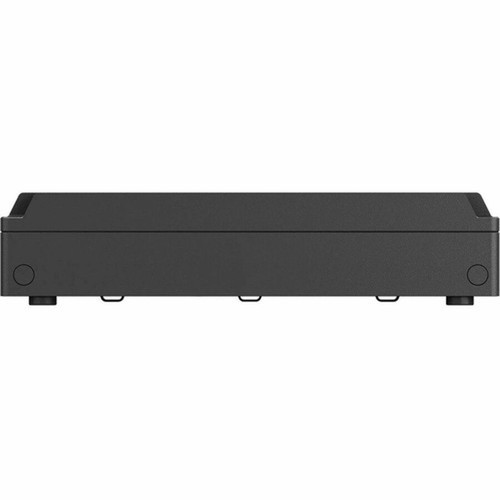

Encased in a black industrial chassis, the NUC 13 Rugged measures 1.41 inches in height, 6.85 inches in width, and 4.25 inches in depth (35.80 x 174 x 108 mm), with an approximate weight of 1.95 pounds (884 grams). This compact form factor is designed for flexible mounting, including VESA-compatible setups, making it easy to integrate into space-limited installations such as behind monitors or within enclosures.
- Width
- 6.85" (174 mm)
- Depth
- 4.25" (108 mm)
- Height
- 1.41" (35.80 mm)
- Weight
- 1.95 lb (884 g)
What's in the Box
The package includes all necessary components to set up the barebone system, ensuring a complete out-of-box experience for integration.
Highlights
- Intel Atom x7425E Quad-core processor with 1.50 GHz base and 3.40 GHz turbo speed
- 16 GB DDR5 SDRAM support for fast and efficient memory performance
- NVMe and Serial ATA storage controllers with two M.2 interfaces
- 2.5 Gigabit Ethernet and Wi-Fi 6 (802.11ax) for high-speed networking
- Six USB ports including USB 3.2 Gen 2 Type-A and onboard USB 2.0
- Windows 11 operating system support for modern software compatibility
- Compact industrial chassis with black finish and VESA mount capability
- 90 W power supply with low 12 W thermal design power for energy efficiency
- Bluetooth connectivity for peripheral and device pairing
- Three-year limited warranty and RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | BNUC13BRFA400B00IW |
| Brand Name | Asus |
| Product Line | NUC 13 Rugged |
| Product Name | NUC 13 Rugged Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Atom |
| Processor Model | x7425E |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 1.50 GHz |
| Maximum Turbo Speed | 3.40 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 1 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| Display & Graphics | |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| I/O Expansions | |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 11 |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Thermal Design Power | 12 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 1.41" (35.80 mm) |
| Width | 6.85" (174 mm) |
| Depth | 4.25" (108 mm) |
| Weight (Approximate) | 1.95 lb (884 g) |
| Miscellaneous | |
| Package Contents | NUC 13 Rugged Barebone System AC Adapter Power Cord Warranty Card Quick Start Guide VESA Mount Wi-Fi Antenna |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor does the Asus NUC 13 Rugged Barebone System use?
This system features the Intel Atom x7425E, a quad-core processor with a base clock speed of 1.50 GHz and a maximum turbo speed of 3.40 GHz. It supports 64-bit processing, providing efficient performance for light computing tasks, digital signage, and edge applications without excessive power consumption.
How much memory can I install in this barebone system?
The Asus NUC 13 Rugged supports up to 16 GB of DDR5 SDRAM through a single memory slot, operating at DDR5-4800 (PC5-38400) speeds. This allows for responsive multitasking and smooth operation of supported applications, with DDR5 technology offering improved bandwidth over previous generations.
What storage options are available with this barebone system?
Storage is managed via NVMe and Serial ATA controllers, with two M.2 interfaces available for installing fast NVMe solid-state drives. This setup enables high-speed data transfer and quick boot times, while also supporting traditional SATA drives if needed for additional storage capacity.
What networking features does this system include?
Networking capabilities include 2.5 Gigabit Ethernet with two RJ-45 ports for wired connections, along with Wi-Fi 6 (IEEE 802.11ax) and Bluetooth for wireless connectivity. This combination ensures reliable and high-speed network access, suitable for both stationary and flexible deployment environments.
Is this system compatible with Windows 11?
Yes, the Asus NUC 13 Rugged Barebone System supports Windows 11, providing a secure and modern operating system platform. This compatibility allows for the use of current software applications and security features, making it suitable for business and industrial use cases that require up-to-date OS support.
What is included in the box with this barebone system?
The package contains the NUC 13 Rugged Barebone System chassis, an AC adapter, a power cord, a warranty card, a quick start guide, a VESA mount for flexible installation, and a Wi-Fi antenna. These components provide everything needed to set up and integrate the system into your desired deployment.
