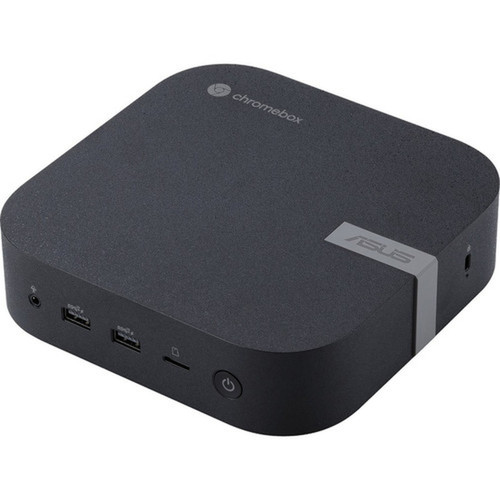

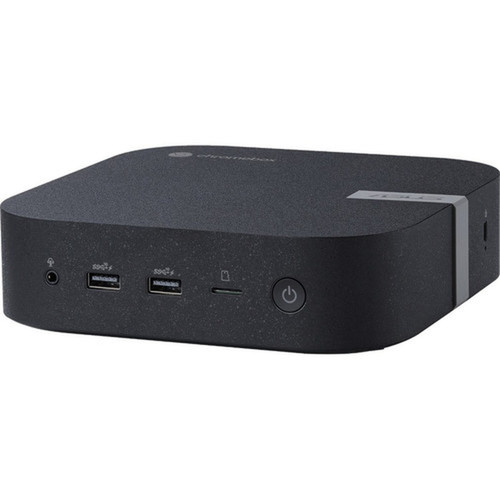

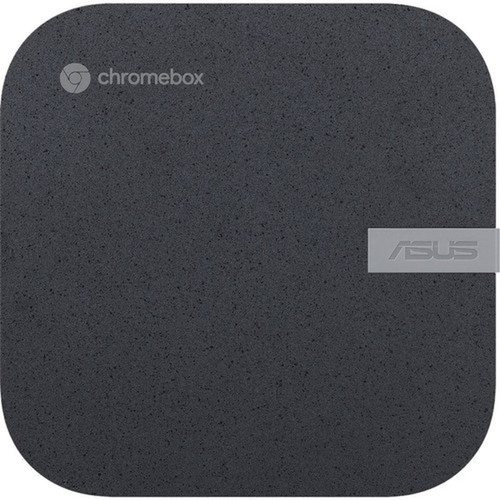

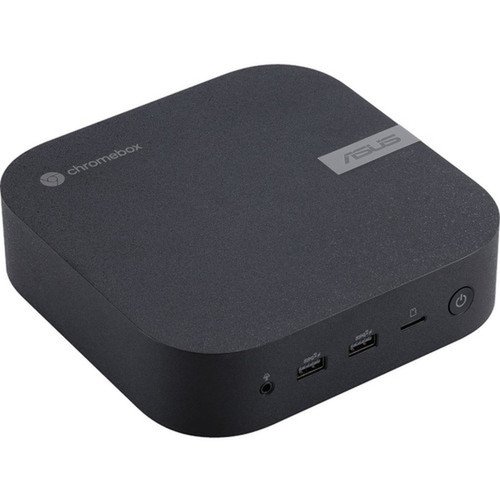

Asus CHROMEBOX5-SC017UN Chromebox 5 Mini PC - Intel Celeron 7305 - 4 GB DDR4128 GB M. 2 NVMe SSD - 2.5GbE - Thunderbolt 4 - ChromeOS - Eco Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Chromebox 5 is an Intel Celeron 7305 processor running at 1.10 GHz. This efficient CPU is built on a modern architecture that balances performance with low power consumption, making it ideal for always-on business applications. The system memory consists of 4 GB of DDR4 SDRAM, which works in tandem with the processor to manage multiple browser tabs, office suites, and media streams without slowdowns.
Storage is provided by a 128 GB M.2 PCIe NVMe solid-state drive. This interface delivers significantly faster read/write speeds compared to traditional SATA drives, reducing application load times and improving overall system responsiveness. The SSD’s M.2 form factor saves internal space, contributing to the device’s compact design. Graphics are handled by Intel UHD Graphics with shared DDR4 memory, capable of driving high-resolution displays for productivity and light media playback.
Key Product Advantages
The Chromebox 5 excels in environments where reliability, security, and ease of management are priorities. ChromeOS provides automatic updates, built‑in virus protection, and fast boot times, reducing IT support burdens. The hardware is designed for durability and energy efficiency, with certifications like Energy Star and RoHS compliance.
Modern Connectivity

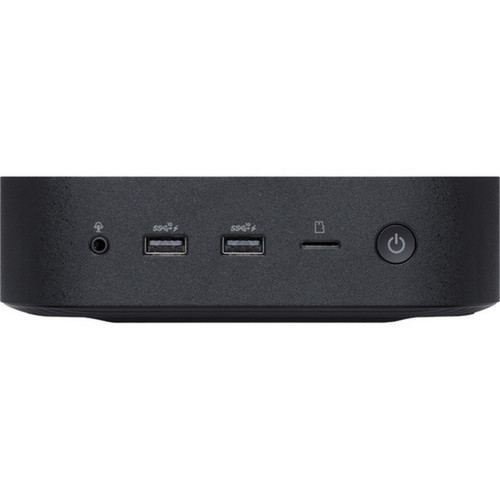

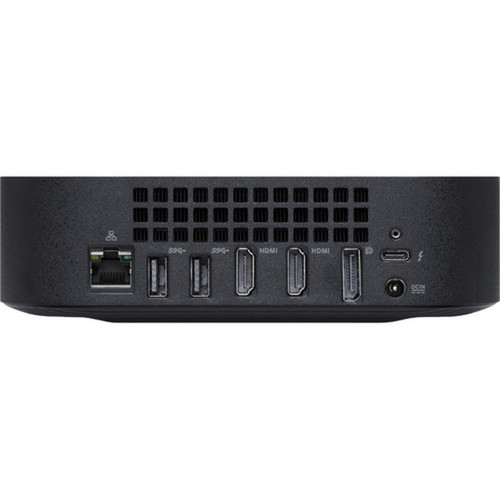

Includes a 2.5 Gigabit Ethernet port for high-speed wired networking, plus six USB ports (with USB 3.2 Gen 2 support) and a Thunderbolt 4 port for fast data transfers and peripheral expansion.
- 2.5Gb Ethernet for fast file transfers
- Thunderbolt 4 for high-speed peripherals
- Multiple USB ports for keyboards, mice, and storage
Compact and Versatile
The mini PC form factor allows mounting behind a monitor or under a desk, saving valuable desk space. Its low power draw and quiet operation make it suitable for 24/7 use in retail, office, or educational settings.
- VESA-mount compatible for discreet installation
- Low thermal output and fan noise
- Ideal for digital signage or kiosk deployments
Deployment / Use Cases
This Chromebox is particularly well-suited for business and education deployments where centralized management and consistent performance are required. Its ChromeOS foundation integrates seamlessly with Google Workspace, enabling collaborative document editing, video conferencing, and cloud-based application access.
Common use cases include front‑desk reception stations, conference room PCs, classroom computers, and thin‑client replacements. The security slot allows physical tethering in public areas, while the 2.5Gb Ethernet ensures reliable connectivity for data‑intensive tasks. For developers or IT pros, the Thunderbolt 4 port supports external GPUs or high‑speed storage arrays, adding flexibility beyond typical ChromeOS workloads.
Business Workstation
Use as a primary desktop for email, web browsing, document editing, and video calls. The fast SSD and ample USB ports support productivity peripherals.
- Runs Google Workspace and web apps efficiently
- Supports dual monitors for multitasking
- Low total cost of ownership
Digital Signage & Kiosk
Deploy in retail stores, hotels, or lobbies to display dynamic content. ChromeOS kiosk mode locks the device to a single application, preventing unauthorized access.
- Compact size fits behind displays
- Energy‑efficient for always‑on operation
- Easy remote management via Google Admin console
Localization and Operating System
The Chromebox 5 ships with ChromeOS pre‑installed. This cloud‑centric operating system is designed for simplicity and security, with automatic updates that keep the system current without user intervention. ChromeOS supports a wide range of web applications and Android apps from the Google Play Store, extending its functionality beyond the browser.
Localization is handled at the OS level; ChromeOS includes multiple language packs and keyboard layouts that can be configured during setup or changed later. The system is ideal for multilingual environments, as users can quickly switch between languages without reinstalling the OS. For enterprise deployments, administrators can enforce language policies through the Google Admin console.
Physical Profile
Measuring just 1.81 inches tall, 6.56 inches wide, and 6.53 inches deep, the Chromebox 5 occupies minimal desk or mounting space. Its weight of 1.32 pounds makes it easy to reposition or mount behind a monitor using an optional VESA bracket. The Eco Black finish is subtle and professional, blending with most office décor.
The chassis includes ventilation for passive and active cooling, ensuring stable operation even in enclosed spaces. A security slot on the rear panel allows cable locking to deter theft in public or shared environments. The compact design does not sacrifice connectivity, with all ports conveniently located on the rear and sides for easy access.
- Width
- 6.56" (166.50 mm)
- Depth
- 6.53" (165.80 mm)
- Height
- 1.81" (45.90 mm)
- Weight
- 1.32 lb (600 g)
What's in the Box
The package includes all essential components to get started right away.
Package contents include Chromebox5-SC017UN Chromebox Power Adapter, Chromebox5-SC017UN Chromebox. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Compact mini PC form factor saves desk space
- Intel Celeron 7305 processor with 1.10 GHz clock speed
- 4 GB of DDR4 RAM for smooth multitasking
- 128 GB M.2 NVMe SSD for fast boot and load times
- ChromeOS operating system with automatic updates
- 2.5 Gigabit Ethernet for high-speed networking
- Thunderbolt 4 port for high-speed peripherals
- Six USB ports (USB 3.2 Gen 1 and Gen 2)
- Energy Star certified and RoHS compliant
- Eco Black finish with security slot
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | CHROMEBOX5-SC017UN |
| Brand Name | Asus |
| Product Line | Chromebox 5 |
| Product Model | Chromebox5-SC017UN |
| Product Name | Chromebox5-SC017UN Chromebox |
| Product Type | Chromebox |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Processor Model | 7305 |
| Processor Speed | 1.10 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
| Total Solid State Drive Capacity | 128 GB |
| Solid State Drive Interface | PCI Express NVMe |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | RTL8125BG-CG |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Number of Thunderbolt 4 Ports | 1 |
| Operating System | |
| Operating System Platform | ChromeOS |
| Operating System | ChromeOS |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Eco Black |
| Form Factor | Mini PC |
| Height | 1.81" (45.90 mm) |
| Width | 6.56" (166.50 mm) |
| Depth | 6.53" (165.80 mm) |
| Weight (Approximate) | 1.32 lb (600 g) |
| Miscellaneous | |
| Package Contents | Chromebox5-SC017UN Chromebox Power Adapter |
| Application/Usage | Business |
| Features | Security Slot |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What processor does this Chromebox use?
This Asus Chromebox 5 is equipped with an Intel Celeron 7305 processor running at a base clock speed of 1.10 GHz. This CPU is designed for efficient performance in everyday computing tasks like web browsing, office applications, and media streaming, while maintaining low power consumption and heat output.
How much memory and storage does it have?
The system comes with 4 GB of DDR4 SDRAM, which is sufficient for handling multiple Chrome tabs and lightweight applications simultaneously. For storage, it includes a 128 GB M.2 PCIe NVMe solid-state drive. This SSD offers fast read/write speeds, resulting in quick boot times, rapid application launches, and snappy system responsiveness.
What operating system is installed?
The Chromebox 5 runs ChromeOS, Google's cloud-centric operating system. ChromeOS is known for its simplicity, security, and low maintenance—it updates automatically in the background and includes built-in virus protection. It supports web apps, Android apps from the Google Play Store, and Linux applications, making it versatile for both personal and business use.
What connectivity ports are available?
This model offers comprehensive connectivity: a 2.5 Gigabit Ethernet port for high-speed wired networking, six USB ports (two USB 3.2 Gen 1 and four USB 3.2 Gen 2), and one Thunderbolt 4 port. The Thunderbolt 4 port supports fast data transfer, video output, and charging for compatible devices, adding flexibility for peripherals like external storage or docks.
Is this Chromebox suitable for business use?
Yes, the Chromebox 5 is designed with business environments in mind. Its ChromeOS platform allows easy management through the Google Admin console, enabling IT teams to deploy, monitor, and update devices remotely. The compact size, security slot, and Energy Star certification make it ideal for offices, retail kiosks, or educational settings where reliability and low total cost of ownership are important.
Can I mount this device behind a monitor?
Absolutely. The Chromebox 5 has a mini PC form factor with dimensions of 1.81" H x 6.56" W x 6.53" D, and it is VESA-mount compatible. You can use an optional VESA bracket to attach it directly to the back of a monitor or under a desk, saving valuable desk space and creating a clean, clutter-free workspace setup.
