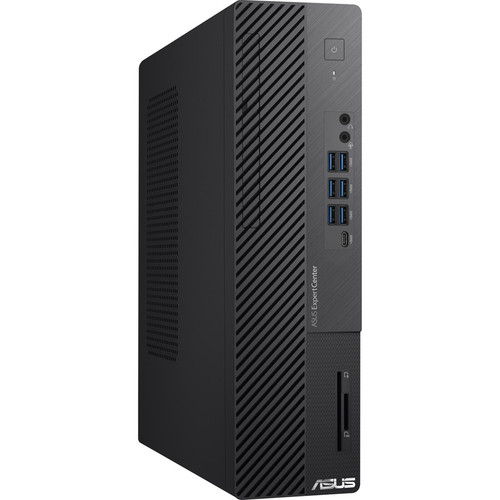

Asus D700SA-Q53SP ExpertCenter D7 Small Form Desktop - Intel Core i5-10400 - 8GB RAM - 512GB PCIe NVMe SSD - Windows 10 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ExpertCenter D7 D700SA-Q53SP is the Intel Core i5-10400 processor, featuring six cores and twelve threads with a base clock of 2.90 GHz and a maximum turbo frequency of 4.30 GHz. This CPU is paired with 8 GB of DDR4 memory running at 2933 MHz, installed across two of the four available U-DIMM slots to support future upgrades up to 128 GB.
Storage is handled by a 512 GB PCI Express NVMe solid-state drive in the M.2 form factor, offering significantly faster data transfer rates compared to traditional SATA drives. The system includes a 300 W power supply and supports expansion via one PCIe 3.0 x16 slot, one PCI slot, and two PCIe 3.0 x1 slots, plus additional M.2 connectors for storage and Wi-Fi.
Key Product Advantages
This desktop balances compact dimensions with a robust set of ports and expansion options, making it suitable for both standard office tasks and more specialized departmental roles. The inclusion of Windows 10 Pro provides BitLocker encryption, remote desktop capabilities, and enhanced group policy management for IT administrators.
Comprehensive Connectivity
Front-panel I/O includes a USB 3.2 Gen 1 Type-C port, six USB 3.2 Gen 1 Type-A ports, and audio jacks. The rear panel adds Gigabit Ethernet, HDMI 1.4, DisplayPort, VGA, four USB 2.0 ports, and PS/2 connectors for legacy peripherals.
- 1x USB 3.2 Gen 1 Type-C front
- 6x USB 3.2 Gen 1 Type-A front
- 4x USB 2.0 rear
- HDMI, DisplayPort, VGA video outputs
Business-Ready Security
TPM 2.0 hardware encryption secures sensitive data, while the Kensington lock slot deters physical theft. The system also complies with RoHS environmental standards.
- TPM 2.0 for data encryption
- Kensington lock slot
- RoHS compliant
Deployment / Use Cases
The ExpertCenter D7 D700SA-Q53SP is ideal for general office deployments, point-of-sale stations, digital signage controllers, and departmental workgroups where a compact footprint is advantageous. Its dual-display support via HDMI, DisplayPort, and VGA outputs allows for multi-monitor setups in financial, administrative, or customer-service environments.
With built-in Wi-Fi 5 and Bluetooth 4.2, the system can operate in wireless office layouts or connect to peripherals like headsets and printers without additional adapters. The available PCIe and PCI expansion slots enable the addition of dedicated graphics cards, specialized I/O cards, or additional network interfaces for more demanding applications.
Office Productivity
Handles everyday business software, web browsing, email, and document editing with responsive performance thanks to the six-core processor and NVMe storage.
Space-Constrained Installations
The small form factor design allows placement in retail counters, classroom desks, medical carts, or other tight spaces where traditional towers would not fit.
Localization and Operating System
This desktop ships with Microsoft Windows 10 Pro pre-installed, providing a full-featured business operating system with advanced security, networking, and management tools. Windows 10 Pro includes support for domain join, Group Policy, BitLocker drive encryption, and Remote Desktop host capabilities.
The system is configured for English language and regional settings appropriate for the North American market. ASUS includes a one-month trial of Microsoft 365 for new customers, though the recommendation is to use Windows 10 Pro for business environments to maintain compatibility with enterprise management frameworks.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Encased in a black small form factor chassis, the D700SA-Q53SP measures 13.39 inches in height, 3.74 inches in width, and 11.53 inches in depth, with a weight of approximately 11.02 pounds. The compact design reduces desk footprint while still accommodating standard expansion cards and internal components.
A vertical stand is included in the package, allowing the desktop to be oriented upright to further conserve horizontal space. The chassis features a security slot for cable locks and is constructed from RoHS-compliant materials.
- Width
- 3.74" (95 mm)
- Depth
- 11.53" (292.80 mm)
- Height
- 13.39" (340 mm)
- Weight
- 11.02 lb (5000 g)
What's in the Box
The package includes all necessary components to set up the desktop computer immediately.
Highlights
- 10th Generation Intel Core i5-10400 processor with six cores and up to 4.30 GHz turbo speed
- 8 GB of DDR4 2933 MHz RAM, expandable to 128 GB across four U-DIMM slots
- 512 GB PCIe NVMe M.2 SSD for fast boot times and application loading
- Windows 10 Pro operating system with business-grade security and management features
- Small form factor black chassis with dimensions of 13.39" H × 3.74" W × 11.53" D
- Comprehensive connectivity: 11 USB ports, Gigabit Ethernet, Wi-Fi 5, Bluetooth 4.2
- Dual-display support via HDMI 1.4, DisplayPort, and VGA outputs
- Expansion slots include PCIe 3.0 x16, PCI, and PCIe 3.0 x1 for added functionality
- TPM 2.0 and Kensington lock slot for enhanced data and physical security
- RoHS-compliant construction and included vertical stand for space-saving placement
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | D700SA-Q53SP |
| Brand Name | Asus |
| Product Line | ExpertCenter |
| Product Series | D7 |
| Product Model | D700SA-Q53SP |
| Product Name | ExpertCenter D700SA-Q53SP Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 10th Gen |
| Processor Model | i5-10400 |
| Processor Speed | 2.90 GHz |
| Maximum Turbo Speed | 4.30 GHz |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe |
| SSD Form Factor | M.2 |
| Optical Drive Type | No |
| Network & Communication | |
| LAN Model | I219V |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 11 |
| Number of USB 2.0 Ports (Rear) | 4 |
| Number of USB 3.2 Gen 1 Ports | 6 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB 3.2 Gen 1 Type-C |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 10 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 300 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Small Form Factor |
| Height | 13.39" (340 mm) |
| Width | 3.74" (95 mm) |
| Depth | 11.53" (292.80 mm) |
| Weight (Approximate) | 11.02 lb (5000 g) |
| Miscellaneous | |
| Package Contents | ExpertCenter D700SA-Q53SP Desktop Computer Warranty Card Manual Vertical Stand |
| Features | Security Slot |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processor does the Asus ExpertCenter D7 D700SA-Q53SP use?
This desktop is equipped with an Intel Core i5-10400 processor from the 10th Generation family. It features six cores and twelve threads, with a base clock speed of 2.90 GHz and a maximum turbo frequency of 4.30 GHz, providing strong performance for business applications and multitasking.
Can the memory be upgraded in this desktop?
Yes, the system comes with 8 GB of DDR4 RAM installed across two of its four U-DIMM slots. Memory can be expanded up to a maximum of 128 GB, allowing for significant performance improvements in memory-intensive tasks or virtualized environments.
What type of storage is included?
The D700SA-Q53SP includes a 512 GB PCI Express NVMe solid-state drive in the M.2 form factor. NVMe technology offers much faster data transfer speeds compared to traditional SATA SSDs or hard drives, resulting in quicker boot times, faster application launches, and improved overall system responsiveness.
What operating system is pre-installed?
This desktop ships with Microsoft Windows 10 Pro already installed. Windows 10 Pro provides advanced features for business use, including BitLocker encryption, Remote Desktop, domain join capability, and enhanced security controls, making it suitable for managed IT environments.
How many display outputs does this computer support?
The system supports dual-display configurations through its rear-panel video outputs: one HDMI 1.4 port, one DisplayPort, and one VGA port. This allows for flexible monitor setups, such as extending the desktop across two screens for increased productivity in office or administrative roles.
What expansion options are available?
The chassis includes several expansion slots: one PCIe 3.0 x16 slot (typically for graphics cards), one PCI slot, and two PCIe 3.0 x1 slots. Additionally, there are M.2 connectors for storage and Wi-Fi modules. These slots enable the addition of dedicated GPUs, network cards, serial port adapters, or other specialized hardware to meet specific workflow requirements.
