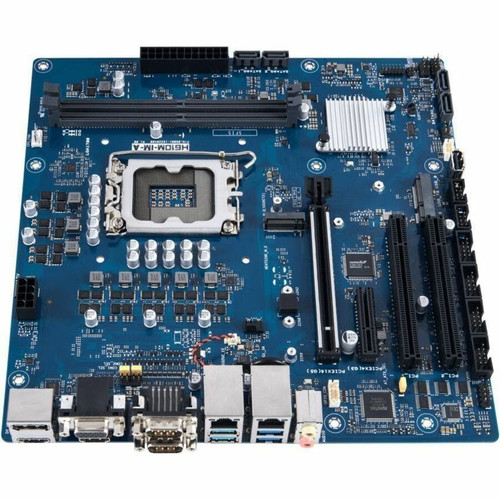

Asus H610M-IM-A Industrial Motherboard - Intel H610 Chipset - Socket LGA-1700 - Micro ATX - Core i9, Core i7, Core i5, Core i3, - 64 - (90ME04K0-M0UCY0)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: Intel
Chipset Model: H610
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 13th Gen,12th Gen
Processor Supported: Core i9,Core i7,Core i5,Core i3,Pentium,Celeron
Number of Memory Slots: 2
Memory Form Factor: UDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 3200 MHz
Memory Technology: DDR4 SDRAM
Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 5.0,PCI Express 3.0,PCI Express 2.0
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Form Factor: Micro ATX
- Micro-ATX, LGA1700 socket for Intel® 12th Gen Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors, Max. 65W TDP
- 2 x U-DIMM up to 64 GB DDR4 up to 3200 MHz
- Supports 3 displays configuration by multiple interface: VGA / DP/ HDMI1 / HDMI2
- Supports 1 x PCIe5.0 x16 slot, 1 x PCIe3.0/2.0 x4 slot(x1 speed ), 2 x PCI,1 x Mini PCIe,6 x COM,9 x USB
- 7 years of longevity with extended product life cycles
- Wide temperature range endurance: 0-60°C
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90ME04K0M0UCY0 |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Model | H610M-IM-A |
| Product Name | H610M-IM-A Industrial Motherboard |
| Product Type | Industrial Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 13th Gen,12th Gen |
| Processor Supported | Core i9,Core i7,Core i5,Core i3,Pentium,Celeron |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 3200 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Expansions | |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 5.0,PCI Express 3.0,PCI Express 2.0 |
| Interfaces/Ports | |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Physical Characteristics | |
| Form Factor | Micro ATX |
[/custom-specifications]
