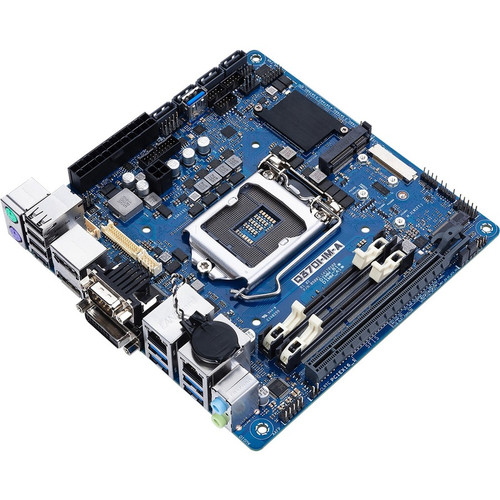

Asus Mini ITX Desktop Motherboard Intel Chipset Socket LGA1151 SoDIMM Up To 64 GB DDR4 LGA-1151 Maximum SDRAM RAM X Q370I-IM-A
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Supports Intel® 8th Gen Core™ processors (LGA1151) with the Intel Q370 chipset
- Two 260-pin SO-DIMM slots support up to 32GB DDR4 2666/2400/2133 MHz SDRAM
- Supports dual display configurations with multiple interfaces, including dual DisplayPort, DVI-D, LVDS, eDP
- Advanced I/O and connectivity features
- Seven years of longevity with extended product life cycles
- Wide temperature range endurance: 0-60°C
- Q370I-IM-A Desktop Motherboard
- 1 x IO Shield
- 1 x SATA 6G Cable
- 2 x M.2 Screw Pack
Marketing Information:
8th Gen Intel® CoreTM i7/i5/i3 LGA 1151 Mini-ITX motherboard with Q370 chipset, two SO-DIMM slots, dual DisplayPort, DVI-D, LVDS, eDP, two M.2 slots, PCIe x16 and Mini-PCIe
ASUS Q370I-IM-A is a Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a PCIe x16 slot, two M.2 sockets (E and M key) and Mini PCIe, ASUS Q370I-IM-A is an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Chipset Manufacturer: Intel
Chipset Model: Q370
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3,Core i5,Core i7,Celeron,Pentium Gold
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 2666 MHz,2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 4
Number of USB 3.2 Ports: 4
DisplayPort: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 2
Form Factor: Mini ITX
Width: 6.69" (170 mm)
Depth: 6.69" (170 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: 2 Year
- Two 260-pin SO-DIMM up to 64GB DDR4 2666/2400/2133 MHz SDRAM.
- Supports 3 displays configuration by multiple interface: 2*DP/ DVI-D /LVDS
- 7-year longevity supply
- Wide temperature Range: 0~60°C
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | Q370I-IM-A |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Model | Q370I-IM-A |
| Product Name | Q370I-IM-A Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q370 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i3,Core i5,Core i7,Celeron,Pentium Gold |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2666 MHz,2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Ports | 4 |
| DisplayPort | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.69" (170 mm) |
| Depth | 6.69" (170 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
