Asus RNUC13L5KV700000I NUC 13 Pro Barebone Mini PC - Intel Core i7-1370P 14-Core - 64 GB DDR4 - 2. 5GbE - Wi-Fi 6E - Thunderbolt 4
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

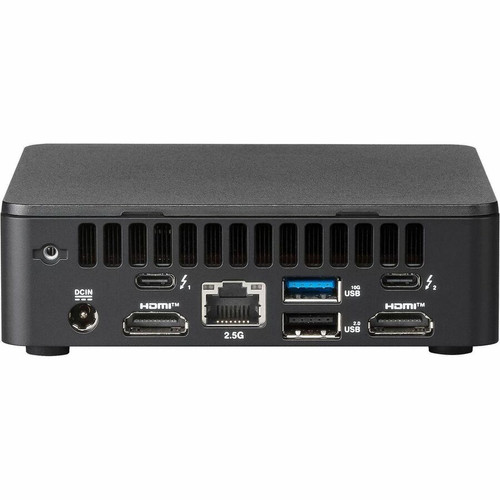

This barebone system is engineered with a full suite of contemporary interfaces and expansion capabilities. Networking includes 2.5 Gigabit Ethernet for wired high‑speed connectivity and Wi‑Fi 6E (802.11 a/b/g/n/ac/ax) with Bluetooth 5.3 for wireless flexibility. The rear panel hosts three USB 3.2 Gen 2 Type‑A ports, two Thunderbolt 4 ports for high‑speed data and display, one HDMI output, and a single RJ‑45 Ethernet jack.
Storage is managed via NVMe and Serial ATA controllers, allowing builders to install fast NVMe SSDs or traditional SATA drives. The integrated Intel Iris Xe Graphics leverages shared system memory to handle everyday computing, multimedia playback, and light graphical tasks without a discrete GPU. Power is supplied by a 120 W external adapter, matched to the processor's 40 W thermal design power for balanced performance in the compact enclosure.
Key Product Advantages
Beyond its core specs, the NUC 13 Pro includes thoughtful touches for deployment readiness. It supports a wide range of operating systems—Windows 10 IoT Enterprise, Windows 11, Ubuntu 20.04/22.04 LTS, and Red Hat Enterprise Linux 9.1—giving IT teams flexibility for commercial, industrial, or development use. The system is RoHS‑compliant and backed by a 5‑year limited warranty, underscoring its suitability for long‑term professional installations.
Compact Professional Builds
The mini PC form factor occupies minimal desk or mounting space, making it ideal for office environments, digital signage, kiosks, or embedded applications where footprint matters.
- Tiny chassis: 4.6" x 4.4" x 1.5"
- Black finish blends into professional settings
- VESA‑mount ready for display or wall attachment
Modern Connectivity Suite
Equipped with Thunderbolt 4, Wi‑Fi 6E, and 2.5GbE, this NUC ensures high‑bandwidth connections for peripherals, networks, and displays.
- Thunderbolt 4 supports 40 Gbps data and dual 4K displays
- Wi‑Fi 6E offers less congested 6 GHz band performance
- 2.5GbE provides wired networking headroom
Deployment / Use Cases
This barebone mini PC is tailored for scenarios where a small, customizable, and reliable computing node is required. Its balance of performance, connectivity, and compactness makes it a versatile choice for modern IT environments.
In office settings, it can serve as a compact desktop for general productivity, connected via Thunderbolt 4 docks to multiple monitors and peripherals. For digital signage or interactive kiosks, the small size and VESA‑mount capability allow discreet placement behind displays, while the 13th Gen processor handles smooth media playback and touch‑interface responsiveness.
Thin Client & Virtual Desktop Endpoint
With support for Windows IoT Enterprise and Linux, this NUC works well as a thin client for virtual desktop infrastructure (VDI), accessing centralized applications and desktops with local processing headroom for decoding.
Edge Computing & IoT Gateway
The AI‑powered CPU, multiple USB ports, and dual Thunderbolt 4 connections enable data aggregation, light analytics, or control functions at the network edge, in retail, manufacturing, or smart‑building deployments.
Physical Profile
The NUC 13 Pro adopts a minimalist black enclosure measuring 4.60 inches wide, 4.40 inches deep, and just 1.50 inches tall (116.84 x 111.76 x 38.10 mm). This compact footprint allows it to fit in tight spaces—on a desk, mounted behind a monitor, or within a rack shelf using optional brackets.
The chassis is designed for efficient thermal management, with ventilation ensuring the 40 W TDP processor remains cool under load. The black finish provides a neutral, professional appearance that integrates seamlessly into office or commercial environments. The system is RoHS‑compliant, adhering to environmental standards for hazardous substance restrictions.
- Width
- 4.60" (116.84 mm)
- Depth
- 4.40" (111.76 mm)
- Height
- 1.50" (38.10 mm)
What's in the Box
This barebone kit includes the core components needed to begin building a custom mini PC.
Highlights
- Intel Core i7‑1370P 13th Gen processor with 14 cores and 5.2 GHz turbo speed
- Supports up to 64 GB of DDR4‑3200 memory across two slots
- Dual Thunderbolt 4 ports for high‑speed data and display connectivity
- 2.5 Gigabit Ethernet and Wi‑Fi 6E (802.11ax) with Bluetooth 5.3
- Compact mini PC form factor: 4.6" x 4.4" x 1.5" (116.84 x 111.76 x 38.10 mm)
- NVMe and SATA storage controller support for flexible drive installation
- Windows 10 IoT Enterprise, Windows 11, Ubuntu, and RHEL operating system support
- AI‑powered efficiency for adaptive performance in professional workloads
- Black chassis with VESA‑mount capability for discreet placement
- 5‑year limited warranty and RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RNUC13L5KV700000I |
| Brand Name | Asus |
| Product Line | NUC 13 Pro |
| Product Model | RNUC13L5KV700000I |
| Product Name | NUC 13 Pro RNUC13L5KV700000I Barebone System |
| Product Type | Barebone System |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 13th Gen |
| Processor Model | i7-1370P |
| Processor Core | Tetradeca-core (14 Core) |
| Processor Speed | 1.90 GHz |
| Maximum Turbo Speed | 5.20 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 10 IoT Enterprise,Windows 11,Ubuntu 22.04 LTS,Ubuntu 20.04 LTS,Red Hat Enterprise Linux 9.1 |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Thermal Design Power | 40 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 1.50" (38.10 mm) |
| Width | 4.60" (116.84 mm) |
| Depth | 4.40" (111.76 mm) |
| Miscellaneous | |
| Package Contents | NUC 13 Pro RNUC13L5KV700000I Barebone System Power Adapter |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
FAQ
What processor is included in this Asus NUC 13 Pro barebone system?
The system includes an Intel Core i7‑1370P processor from the 13th Gen family. This is a tetradeca‑core (14‑core) CPU with a base clock speed of 1.90 GHz and a maximum turbo frequency of 5.20 GHz. It supports 64‑bit processing and includes Intel Iris Xe Graphics for integrated display output.
How much memory can I install, and what type does it support?
This NUC 13 Pro supports up to 64 GB of DDR4 SDRAM. It uses the DDR4‑3200/PC4‑25600 memory standard and provides two memory slots for installation. This allows configurations from a single 8 GB module up to dual 32 GB modules for maximum capacity.
What connectivity and ports are available on this mini PC?
The rear panel includes three USB 3.2 Gen 2 Type‑A ports, two Thunderbolt 4 ports, one HDMI output, and one RJ‑45 Ethernet port. For wireless connectivity, it features Wi‑Fi 6E (IEEE 802.11 a/b/g/n/ac/ax) and Bluetooth 5.3. Wired networking is 2.5 Gigabit Ethernet for high‑speed local network access.
Which operating systems are supported by this barebone system?
The system supports Windows 10 IoT Enterprise, Windows 11, Ubuntu 22.04 LTS, Ubuntu 20.04 LTS, and Red Hat Enterprise Linux 9.1. This broad OS compatibility makes it suitable for commercial, industrial, and development environments where different platforms may be required.
What are the physical dimensions and form factor of this NUC?
This is a mini PC with a compact black chassis measuring 4.60 inches wide, 4.40 inches deep, and 1.50 inches tall (116.84 x 111.76 x 38.10 mm). Its small footprint allows for placement in space‑constrained areas, and it is VESA‑mount compatible for attachment behind monitors or on walls.
Does this barebone system include storage or memory pre‑installed?
No, this is a barebone kit. It includes the chassis, motherboard, power adapter, and cooling system, but memory, storage drives, and the operating system must be installed separately by the builder. The system supports NVMe and Serial ATA storage controllers for flexible drive choices.
What processor or platform detail is listed?
This product uses the 1 processor for everyday performance and multitasking.
