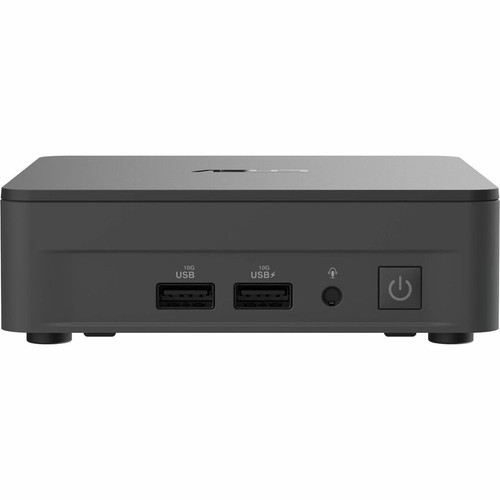

Asus RNUC13ANKH500001I NUC 13 Pro Barebone Mini PC - Intel Core i5-13420H - 64GB DDR4 - 2x Thunderbolt 4 - 2. 5GbE - WiFi 6E - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the NUC 13 Pro is Intel's Core i5-13420H processor, featuring hybrid architecture with performance and efficiency cores. With a thermal design power of 45W, this processor balances performance with thermal management suitable for compact enclosures.
Connectivity is comprehensive with dual Thunderbolt 4 ports supporting 40Gbps data transfer, DisplayPort alternate mode, and power delivery. The system includes three USB 3.2 Gen 2 Type-A ports and one HDMI output for display connectivity. Network capabilities include 2.5 Gigabit Ethernet for high-speed wired connections and WiFi 6E (802.11ax) with Bluetooth 5.3 for wireless connectivity.
Relevant factors for this section include AI-powered, Processor Manufacturer, Processor Type, Processor Generation. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The NUC 13 Pro excels in deployment scenarios where physical space is limited but performance requirements remain substantial. Its compact dimensions of 4.61" x 4.41" allow installation in environments where traditional desktops cannot fit.
Enterprise-Grade Connectivity
Dual Thunderbolt 4 ports provide future-proof connectivity for high-speed peripherals, displays, and docking stations, while 2.5GbE ensures network performance exceeds standard gigabit limitations.
- 40Gbps Thunderbolt 4 bandwidth
- DisplayPort and power delivery support
- Backward compatible with Thunderbolt 3
Flexible Storage Options
Support for both NVMe and SATA storage interfaces allows configuration with the latest high-speed NVMe SSDs or more cost-effective SATA drives, depending on performance and budget requirements.
- NVMe for maximum performance
- SATA for cost-effective capacity
- Multiple drive configuration options
Deployment / Use Cases
This barebone system is ideal for digital signage applications where a compact, reliable computing platform is needed behind displays or in confined mounting locations. The small form factor and comprehensive connectivity make it suitable for retail environments, hospitality displays, and corporate digital signage networks.
As a thin client or general-purpose office PC, the NUC 13 Pro provides sufficient processing power for productivity applications, web browsing, and multimedia consumption while occupying minimal desk space. The system's support for multiple operating systems including Windows 10 IoT Enterprise, Windows 11, and various Linux distributions makes it adaptable to diverse IT environments.
Digital Signage Solution
The compact size allows discreet mounting behind displays or in tight spaces, while the capable processor handles high-resolution content playback smoothly.
Space-Constrained Office Deployment
Ideal for reception areas, shared workspaces, or classrooms where desk space is limited but full computing functionality is required.
Physical Profile
Measuring just 4.61" wide by 4.41" deep, the NUC 13 Pro occupies minimal space while delivering desktop-class performance. The black chassis provides a professional appearance suitable for office and commercial environments. The compact dimensions enable versatile mounting options including VESA mount compatibility for display attachment, under-desk mounting, or integration into kiosk enclosures.
- Width
- 4.61" (117 mm)
- Depth
- 4.41" (112 mm)
What's in the Box
The barebone system includes all necessary components to begin configuration with the addition of memory, storage, and an operating system.
Highlights
- Intel Core i5-13420H 13th Generation processor with hybrid architecture
- Supports up to 64GB DDR4-3200 memory across two slots
- Dual Thunderbolt 4 ports with 40Gbps bandwidth and power delivery
- 2.5 Gigabit Ethernet for high-speed wired networking
- WiFi 6E (802.11ax) and Bluetooth 5.3 wireless connectivity
- Compact mini PC form factor measuring 4.61" x 4.41"
- Supports NVMe and SATA storage interfaces
- Compatible with Windows 10 IoT Enterprise, Windows 11, and multiple Linux distributions
- Black chassis suitable for professional environments
- 120W power supply included
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RNUC13ANKH500001I |
| Brand Name | Asus |
| Product Line | NUC 13 Pro |
| Product Model | RNUC13ANKH500001I |
| Product Name | NUC 13 Pro RNUC13ANKH500001I Barebone System |
| Product Type | Barebone System |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 13th Gen |
| Processor Model | i5-13420H |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 10 IoT Enterprise,Windows 11,Red Hat Enterprise Linux 9.1,Ubuntu 22.04 LTS,Ubuntu 20.04 LTS,Windows 11 Home |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Thermal Design Power | 45 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Width | 4.61" (117 mm) |
| Depth | 4.41" (112 mm) |
| Miscellaneous | |
| Package Contents | NUC 13 Pro RNUC13ANKH500001I Barebone System AC Adapter |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What components need to be added to make this barebone system operational?
To make the Asus NUC 13 Pro operational, you need to add DDR4 memory (up to 64GB across two slots), storage (NVMe or SATA SSD/HDD), and an operating system. The system does not include these components, allowing you to customize the specification based on your performance requirements and budget.
What operating systems are supported by this NUC 13 Pro model?
This NUC 13 Pro supports Windows 10 IoT Enterprise, Windows 11, Windows 11 Home, Red Hat Enterprise Linux 9.1, Ubuntu 22.04 LTS, and Ubuntu 20.04 LTS. This broad compatibility allows deployment in various IT environments, from enterprise applications using Windows IoT to Linux-based systems for specific workloads.
What are the advantages of the Thunderbolt 4 ports on this system?
The dual Thunderbolt 4 ports provide 40Gbps bandwidth for high-speed data transfer, support DisplayPort alternate mode for connecting displays, and offer power delivery capabilities. These ports are backward compatible with Thunderbolt 3 devices and can be used for docking stations, external storage, and high-resolution displays, making the system highly expandable despite its compact size.
How does the 2.5 Gigabit Ethernet benefit network performance?
The 2.5 Gigabit Ethernet provides 2.5 times the bandwidth of standard gigabit Ethernet, allowing faster file transfers, improved performance for network-attached storage, and better handling of multiple network streams. This is particularly valuable in business environments where network performance impacts productivity and in applications like digital signage that may stream high-resolution content.
What are the memory specifications and configuration options?
The system supports up to 64GB of DDR4-3200 memory across two SODIMM slots. This allows configurations from 8GB (2x4GB) up to 64GB (2x32GB). The DDR4-3200 memory provides good performance for most applications while maintaining compatibility with a wide range of memory modules available on the market.
Is this system suitable for digital signage applications?
Yes, the NUC 13 Pro is well-suited for digital signage due to its compact size, capable processor, and comprehensive connectivity. The small form factor allows discreet mounting behind displays, while the Intel Core i5-13420H processor can handle high-resolution content playback. The HDMI output and Thunderbolt 4 ports support multiple display configurations commonly used in digital signage deployments.
