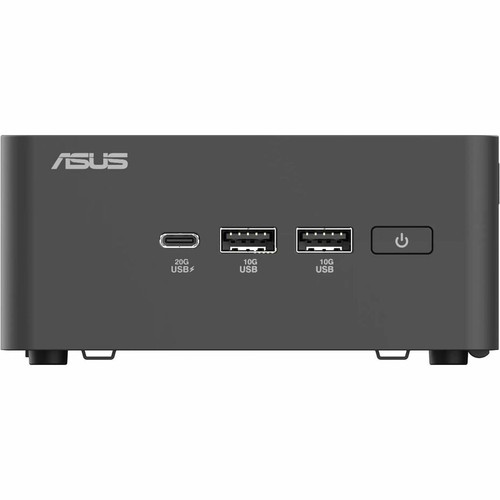

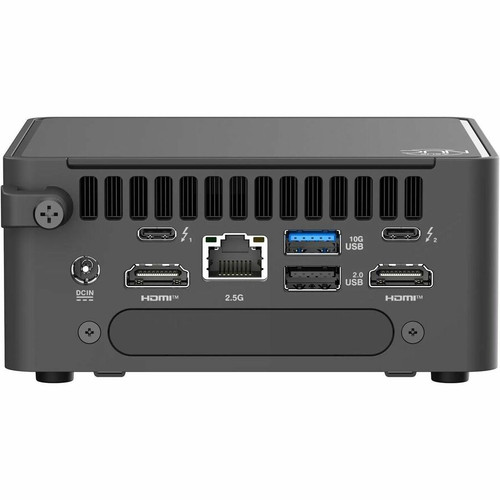

Asus 90AR00Q2-M00240 NUC15CRHC5 NUC 15 Pro Barebone Mini PC - Intel Core 5 - DDR5 SDRAM - 2 Memory Slots - 2. 5GbE - Wi-Fi 7 - Thunderbolt 4
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system features an Intel chipset and Intel graphics controller with shared DDR5 SDRAM graphics memory. The platform includes two M.2 interfaces supporting NVMe storage controllers for high-speed data transfer via PCI Express 4.0 x4 interfaces. This storage architecture ensures rapid boot times, quick application loading, and efficient file operations for demanding professional applications.
Connectivity is comprehensive with 2.5 Gigabit Ethernet for high-speed wired networking, plus IEEE 802.11be (Wi-Fi 7) wireless LAN and Bluetooth 5.4 for modern wireless peripherals and networking. The system includes two Thunderbolt 4 ports for high-speed data transfer and display connectivity, along with five total USB ports including three USB 3.2 Gen 2 Type-A ports and one front-mounted USB 3.2 Gen2x2 Type-C port. A rear HDMI port provides additional display output flexibility.
This section brings together practical product details such as Processor Manufacturer, Processor Type, 64-bit Processing, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The NUC 15 Pro barebone system combines compact dimensions with professional-grade connectivity and expansion capabilities. Its mini PC form factor enables deployment in locations where traditional desktop systems would be impractical, while still providing the performance needed for business applications.
Modern Memory Architecture
DDR5 SDRAM support delivers higher bandwidth and improved power efficiency compared to previous generations, ensuring smooth performance for multitasking and productivity applications.
- Two memory slots for configuration flexibility
- Shared graphics memory for integrated display performance
Advanced Connectivity Suite
Comprehensive port selection includes Thunderbolt 4 for high-speed data transfer and display connectivity, 2.5GbE for fast networking, and Wi-Fi 7 for the latest wireless standards.
- Future-proof wireless with IEEE 802.11be
- Multiple high-speed USB options for peripherals
Storage Flexibility
Two M.2 interfaces with NVMe controller support enable rapid storage configurations, allowing you to balance capacity and performance based on specific application requirements.
- PCI Express 4.0 x4 interface for maximum throughput
- NVMe reliability for critical data operations
Deployment / Use Cases
This barebone mini PC is designed for professional environments where space efficiency and reliable performance are equally important. Its compact dimensions and versatile connectivity make it suitable for integration into existing IT infrastructures without requiring significant physical footprint adjustments.
Common deployment scenarios include digital signage displays in retail environments, where the system can drive multiple screens while occupying minimal space behind monitors. In office settings, it serves as a discreet workstation for general productivity applications, with the Thunderbolt 4 ports enabling docking station connectivity for expanded peripheral support. The system also functions effectively in point-of-sale implementations, healthcare kiosks, or educational computer labs where consistent performance in constrained spaces is essential.
Physical Profile
The black mini PC chassis measures 4.61 inches wide by 4.41 inches deep (117 mm x 112 mm), creating an exceptionally compact footprint for professional deployments. This small form factor enables mounting behind displays, under desks, or in other space-constrained locations while maintaining full computing capability. The system complies with Restriction of Hazardous Substances (RoHS) environmental standards.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.61" (117 mm), 4.41" (112 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.61" (117 mm)
- Depth
- 4.41" (112 mm)
What's in the Box
This barebone system package includes the core computing platform and necessary power components for immediate configuration and deployment.
Highlights
- Intel Core 5 processor with 64-bit processing for efficient multitasking
- DDR5 SDRAM memory technology with two available slots for configuration flexibility
- 2.5 Gigabit Ethernet for high-speed wired network connectivity
- IEEE 802.11be (Wi-Fi 7) wireless LAN with Bluetooth 5.4 support
- Two Thunderbolt 4 ports for high-speed data transfer and display connectivity
- Five total USB ports including USB 3.2 Gen 2 Type-A and Type-C options
- Two M.2 interfaces with NVMe controller support for fast storage
- Compact mini PC form factor measuring 4.61" W x 4.41" D (117 mm x 112 mm)
- Black chassis suitable for professional environment integration
- 120W maximum power supply for stable system operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90AR00Q2-M00240 |
| Brand Name | Asus |
| Product Line | NUC 15 Pro |
| Product Model | NUC15CRHC5 |
| Product Name | Nuc 15 Pro NUC15CRHC5 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core 5 |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | NVMe |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| I/O Expansions | |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2x2 Type-C |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Width | 4.61" (117 mm) |
| Depth | 4.41" (112 mm) |
| Miscellaneous | |
| Package Contents | Nuc 15 Pro NUC15CRHC5 Barebone System AC Adapter |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What components do I need to add to make this barebone system operational?
To complete this barebone system, you will need to install compatible DDR5 SDRAM memory modules in the two available slots and add storage devices to the two M.2 interfaces. The system does not include memory or storage, allowing you to select components that match your specific performance and capacity requirements. You may also need to install an operating system of your choice once the hardware configuration is complete.
What wireless networking standards does this mini PC support?
This system supports the latest IEEE 802.11be standard, commonly known as Wi-Fi 7, which provides faster speeds, lower latency, and improved efficiency compared to previous wireless standards. It also includes Bluetooth 5.4 for connecting wireless peripherals like keyboards, mice, and audio devices. This combination ensures compatibility with current and future wireless networking environments.
How many displays can I connect to this system?
You can connect multiple displays using the available video outputs. The system includes two Thunderbolt 4 ports that support display connectivity, plus a rear HDMI port. Thunderbolt 4 ports can drive displays directly or through docking stations, providing flexibility for multi-monitor setups in professional environments. The exact number of supported displays depends on the specific configuration and resolution requirements.
What type of storage interfaces are available in this barebone system?
This system features two M.2 interfaces that support NVMe storage controllers via PCI Express 4.0 x4 connections. This interface provides significantly faster data transfer speeds compared to SATA-based storage, resulting in quicker boot times, faster application loading, and improved overall system responsiveness. You can install NVMe SSDs in these interfaces to create your preferred storage configuration.
Can this mini PC be mounted in different orientations or locations?
Yes, the compact dimensions and mini PC form factor make this system suitable for various mounting scenarios. Its small footprint allows placement behind monitors using VESA mounts, under desks, or in other space-constrained locations. The system's black chassis blends discreetly into professional environments, and its ventilation design supports operation in different orientations when adequate airflow is maintained.
What wired networking capabilities does this system provide?
This system includes a 2.5 Gigabit Ethernet port that provides network connectivity at 2.5 times the speed of standard Gigabit Ethernet. This enhanced bandwidth is particularly valuable for transferring large files, streaming high-resolution content, or supporting multiple network-intensive applications simultaneously. The port uses a standard RJ-45 connector compatible with most network infrastructure.
What processor or platform detail is listed?
This product uses the Core 5 processor for everyday performance and multitasking.
