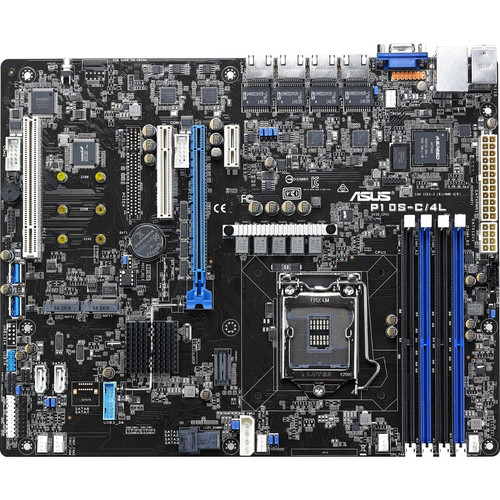

Asus P10S-C Server Motherboard Intel Socket LGA1151 ATX Support Up To 64 GB DDR2 UDIMM LGA-1151 Chipset Maximum Memory SDRAM RAM X P10S-C/4L
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Dual M.2 build RAID0 for better performance
- PCI support extend life cycle for legacy device
- Quad Intel I210 Server Class GbE delivering high networking bandwidth
- Platinum-grade power efficiency with ultra longevity solid CAP & Beat Thermal Choke III
Marketing Information: Quad LAN with Platinum Grade Power Saving Technology
Chipset Manufacturer: Intel
Chipset Model: C232
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3,Celeron,Xeon,Pentium
Number of Memory Slots: 4
Memory Form Factor: UDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 2133 MHz
Memory Technology: DDR2 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
Onboard Video: On-board Video Chipset
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 4
Total Number of PCI Express Slots: 2
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.0 Ports: 4
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Environmentally Friendly: Yes
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR2 SDRAM compatible slot - Allows the memory to operate at 400 MHz data bus speed while consuming minimal power. Thus, gives an optimal computer performance with an improved memory heat dissipation.
- RAID supported levels provide data reliability and fault tolerance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | P10S-C/4L |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Model | P10S-C/4L |
| Product Name | P10S-C/4L Server Motherboard |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C232 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i3,Celeron,Xeon,Pentium |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2133 MHz |
| Memory Technology | DDR2 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2400 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 3.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
[/custom-specifications]
