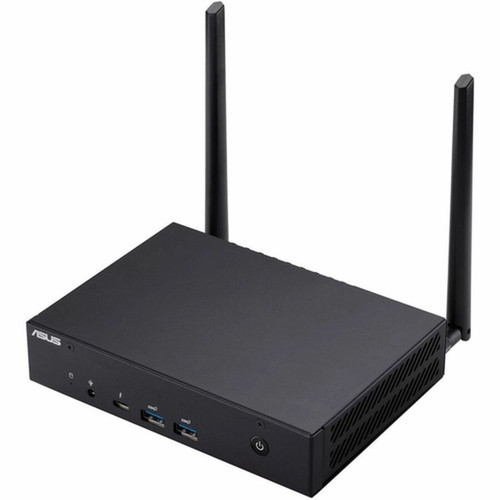

Asus 90MR00P3-M000C0 PL63-BB70000XT Barebone System - Mini PC - Intel Core i3/i5/i7 - 64 GB DDR4-3200 RAM - NVMe - 2. 5GbE - Windows 10 Pro/11 - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system delivers enterprise-ready computing with Intel's 11th Gen Core processor platform, supporting Core i3, i5, and i7 configurations. The architecture includes Intel Iris Xe Graphics with shared DDR4 memory, capable of driving up to four simultaneous displays for multitasking and digital signage applications.
Storage performance is optimized through PCIe Gen 4 x4 M.2 NVMe support, while memory scalability reaches 64 GB across two DDR4-3200 SODIMM slots. Network connectivity combines 2.5GbE wired throughput with WiFi 6 wireless capability, complemented by Bluetooth 5.0 for peripheral connections.
This section brings together practical product details such as Processor Supported, 64-bit Processing, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PL63-BB70000XT balances compact dimensions with expandable performance, making it ideal for fixed-function deployments where reliability and footprint matter equally. Its metal construction and extensive testing ensure 24/7 operation across retail, healthcare, education, and office environments.
Display Flexibility
Intel Iris Xe Graphics supports up to four independent displays through HDMI, DisplayPort, and Thunderbolt 4 outputs, enabling multi-monitor setups for productivity or digital signage.
- 4K resolution support
- Simultaneous multi-display
- Thunderbolt 4 video output
Enterprise Reliability
Asus's Corporate Stable Model program guarantees 36-month availability and consistent hardware revisions, while Intel Dynamic Tuning Technology automatically optimizes performance for thermal conditions.
- 36-month supply guarantee
- Extended testing for 24/7 use
- Automated performance tuning
Deployment / Use Cases
The PL63-BB70000XT's compact footprint and robust connectivity make it suitable for environments where space is premium but full desktop capability is required. Its fanless-optional design and metal chassis provide durability for always-on applications.
Common deployments include digital signage controllers, point-of-sale systems, thin client replacements, classroom computers, medical cart workstations, and office productivity stations. The system's Thunderbolt 4 ports enable docking solutions for expanded peripheral support.
Digital Signage & Kiosks
With four-display support and compact dimensions, this mini PC drives video walls, menu boards, and interactive kiosks while occupying minimal space behind displays or under counters.
Office & Remote Work
The combination of Thunderbolt 4, 2.5GbE, and WiFi 6 provides flexible connectivity for docking stations, high-speed file transfers, and reliable video conferencing in shared workspaces.
Physical Profile
Measuring just 1.33" × 6.54" × 4.71" (33.9 × 166.2 × 119.7 mm) and weighing 1.54 lb (700 g), the PL63-BB70000XT occupies minimal desk or mounting space. The black metal chassis supports VESA mounting for display attachment or under-desk installation, while the compact 90 W power adapter reduces cable clutter.
- Width
- 6.54" (166.20 mm)
- Depth
- 4.71" (119.70 mm)
- Height
- 1.33" (33.90 mm)
- Weight
- 1.54 lb (700 g)
What's in the Box
This barebone system includes the core components needed for deployment with your choice of processor, memory, and storage.
Highlights
- Supports 11th Gen Intel Core i3/i5/i7 processors
- Up to 64 GB DDR4-3200 memory across two SODIMM slots
- PCIe Gen 4 x4 M.2 NVMe storage for fast boot and load times
- Intel Iris Xe Graphics drives up to four displays simultaneously
- Dual Thunderbolt 4 ports with PD power input capability
- 2.5 Gigabit Ethernet + WiFi 6 for high-speed connectivity
- Compact 0.67-liter metal chassis with VESA mount support
- Windows 10 Pro and Windows 11 compatible
- ASUS Corporate Stable Model with 36-month supply guarantee
- Energy Star certified and RoHS compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90MR00P3M000C0 |
| Brand Name | Asus |
| Product Series | PL63 |
| Product Model | PL63-BB70000XT |
| Product Name | PL63-BB70000XT Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Supported | Core i3,Core i5,Core i7 |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Controllers | |
| Controller Type | NVMe |
| Display & Graphics | |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Operating System | |
| Operating System Supported | Windows 10 Pro,Windows 11 |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 1.33" (33.90 mm) |
| Width | 6.54" (166.20 mm) |
| Depth | 4.71" (119.70 mm) |
| Weight (Approximate) | 1.54 lb (700 g) |
| Miscellaneous | |
| Package Contents | PL63-BB70000XT Barebone System Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processors are compatible with this barebone system?
The PL63-BB70000XT supports 11th Generation Intel Core processors, including Core i3, Core i5, and Core i7 models. These processors provide 64-bit processing capability and integrate Intel Iris Xe Graphics for display output. You'll need to purchase the CPU separately as this is a barebone system.
How much memory can I install in this mini PC?
This system supports up to 64 GB of DDR4 memory across two SODIMM slots. The memory standard is DDR4-3200 (PC4-25600), which provides optimal performance with 11th Gen Intel processors. Both slots must be populated with matching memory modules for dual-channel operation.
What type of storage does this system support?
The PL63-BB70000XT includes an M.2 slot supporting PCIe Gen 4 x4 NVMe solid-state drives. This interface delivers significantly faster data transfer speeds compared to SATA SSDs, reducing boot times and application loading. You'll need to provide your own NVMe SSD as this is a barebone configuration.
How many displays can this mini PC support simultaneously?
With Intel Iris Xe Graphics, this system can drive up to four independent displays simultaneously. Output options include HDMI, DisplayPort via USB-C, and Thunderbolt 4 ports, supporting 4K resolution on compatible monitors. This makes it suitable for multi-monitor office setups or digital signage applications.
What networking options are available on this system?
The PL63-BB70000XT provides both wired and wireless networking. The wired connection is a 2.5 Gigabit Ethernet port offering 2.5× the speed of standard Gigabit Ethernet. Wireless connectivity includes WiFi 6 (802.11ax) for faster wireless speeds and Bluetooth 5.0 for peripheral connections.
Is this system compatible with Windows 11?
Yes, the PL63-BB70000XT is fully compatible with both Windows 10 Pro and Windows 11. The 11th Gen Intel processors include the TPM 2.0 security features required for Windows 11. The system comes without an operating system pre-installed, allowing you to deploy either Windows version according to your organization's requirements.
What processor or platform detail is listed?
This product uses the Core i3,Core i5,Core i7 processor for everyday performance and multitasking.
