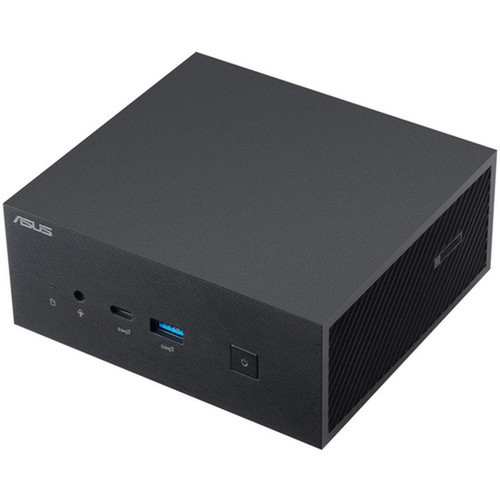

Asus 90MS02D2-M00AV0 PN63-S1 Mini PC - Intel Core i5-1135G7 11th Gen - 8 GB DDR4 RAM - 256 GB PCIe NVMe SSD - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the PN63-S1 is the Intel Core i5-1135G7, a 11th Generation processor built on Intel's 10nm SuperFin technology. This CPU features four cores and eight threads, with a base frequency of 2.4 GHz and turbo frequencies up to 4.2 GHz. It includes Intel Iris Xe Graphics with 80 execution units, delivering substantially improved integrated graphics performance over previous generations.
System memory is configured as 8 GB of DDR4 SDRAM operating in dual-channel mode when populated correctly. Storage is handled by a 256 GB M.2 NVMe SSD using the PCI Express 3.0 interface, offering sequential read speeds typically exceeding 2000 MB/s. The platform is powered by a 90 W external power adapter, keeping internal heat generation low while supporting peak performance demands.
Key Product Advantages
The PN63-S1 balances performance, connectivity, and space efficiency for modern computing environments. Its compact design doesn't sacrifice capability, offering desktop-class ports and networking in a chassis smaller than most traditional desktop towers.
Space-Optimized Performance
With dimensions under 6 inches in any direction, this Mini PC installs easily behind monitors, under desks, or in wall-mounted configurations while delivering full processor and storage performance.
- 58 mm height fits in ultra-thin spaces
- 1.65 lb weight for easy mounting
- VESA mount compatible (bracket optional)
Modern Connectivity Suite
Front-panel USB Type-C and multiple USB 3.2 Gen 2 ports provide high-speed peripheral connections, while 2.5Gb Ethernet ensures fast network transfers and low-latency communications.
- USB 3.2 Gen2 Type-C for modern devices
- Three additional USB 3.2 Gen 2 ports
- 2.5Gb Ethernet for high-bandwidth networks
Deployment / Use Cases
The PN63-S1 is engineered for environments where space is premium but performance cannot be compromised. Its combination of modern CPU architecture, fast storage, and professional connectivity makes it suitable for a range of business and light professional applications.
In office settings, it serves as a quiet, compact workstation for productivity suites, web applications, and video conferencing. For digital signage deployments, its small form factor and capable graphics output support multiple high-resolution displays. In educational or retail environments, the system can be securely mounted while providing sufficient power for point-of-sale software, inventory management, or classroom presentation systems.
Office Productivity Hub
Run Microsoft Office, web browsers, and communication apps simultaneously with smooth performance thanks to the quad-core processor and NVMe storage.
Digital Signage Controller
Drive HD or 4K displays with Intel Iris Xe Graphics while occupying minimal space behind monitors or in wall enclosures.
Physical Profile
The PN63-S1 features a matte black finish that blends into professional environments. Its compact dimensions—2.28 inches tall, 4.72 inches wide, and 5.12 inches deep—allow placement in locations where traditional desktops cannot fit. Weighing just 1.65 pounds, the system can be easily mounted using optional VESA brackets for behind-monitor or under-desk installations. The small footprint and low power consumption make it suitable for energy-conscious deployments while maintaining full desktop functionality.
- Width
- 4.72" (120 mm)
- Depth
- 5.12" (130 mm)
- Height
- 2.28" (58 mm)
- Weight
- 1.65 lb (750 g)
What's in the Box
The package includes all essential components for immediate setup and operation.
Package contents include PN63-S1-SYS5G82PXTD Desktop Computer Power Adapter, PN63-S1-SYS5G82PXTD Desktop Computer. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i5-1135G7 11th Generation processor with four cores and Intel Iris Xe Graphics
- 8 GB DDR4 SDRAM for smooth multitasking across business applications
- 256 GB PCI Express NVMe 3.0 SSD delivers fast boot times and application loading
- Compact Mini PC form factor measures just 2.28″ × 4.72″ × 5.12″ (H × W × D)
- 2.5 Gigabit Ethernet provides high-speed wired network connectivity
- Four USB ports including front-panel USB 3.2 Gen2 Type-C for modern peripherals
- Black chassis with professional matte finish suitable for office environments
- Energy Star certified and RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90MS02D2M00AV0 |
| Brand Name | Asus |
| Product Series | PN63-S1 |
| Product Model | PN63-S1-SYS5G82PXTD |
| Product Name | PN63-S1-SYS5G82PXTD Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 11th Gen |
| Processor Model | i5-1135G7 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe 3.0 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Weight (Approximate) | 1.65 lb (750 g) |
| Miscellaneous | |
| Package Contents | PN63-S1-SYS5G82PXTD Desktop Computer Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processor does the Asus PN63-S1 Mini PC use?
The PN63-S1 is powered by an Intel Core i5-1135G7 processor from the 11th Generation. This quad-core CPU operates at a base frequency of 2.4 GHz with turbo boost up to 4.2 GHz and includes Intel Iris Xe Graphics for enhanced integrated graphics performance compared to previous Intel HD Graphics solutions.
How much memory and storage does this Mini PC include?
This configuration comes with 8 GB of DDR4 SDRAM installed, which operates in dual-channel mode when properly configured. Storage is provided by a 256 GB M.2 NVMe SSD using the PCI Express 3.0 interface, offering significantly faster data transfer speeds than traditional SATA SSDs for quicker system boot and application loading.
What graphics capabilities does the PN63-S1 offer?
The system features Intel Iris Xe Graphics integrated into the Core i5-1135G7 processor. This graphics solution shares system memory and provides substantially improved performance over previous Intel UHD Graphics, supporting smooth 4K video playback, basic photo editing, and acceleration for office applications that utilize GPU acceleration.
What connectivity options are available on this Mini PC?
The PN63-S1 includes 2.5 Gigabit Ethernet for high-speed wired networking and four USB ports: three USB 3.2 Gen 2 Type-A ports and one front-panel USB 3.2 Gen2 Type-C port. This combination supports fast data transfers to external storage and connectivity with modern peripherals while maintaining backward compatibility with existing USB devices.
How compact is the PN63-S1 Mini PC?
The chassis measures 2.28 inches in height, 4.72 inches in width, and 5.12 inches in depth, with a total weight of approximately 1.65 pounds. This compact form factor allows installation in space-constrained environments such as behind monitors, under desks, or in wall-mounted configurations using optional VESA brackets.
What comes in the box with the PN63-S1 Mini PC?
The package includes the PN63-S1-SYS5G82PXTD Desktop Computer unit itself and the necessary power adapter for operation. Additional accessories such as mounting brackets, keyboards, or mice are not included and would need to be purchased separately based on your specific deployment requirements.
What processor is listed for this desktop or workstation?
This product uses the Core i5 processor for everyday performance and multitasking.
How many cores are listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
