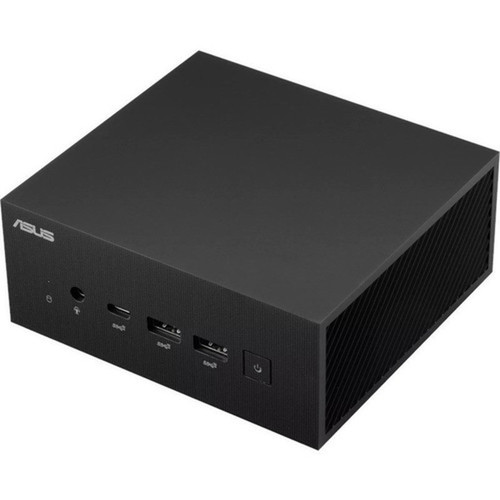

Asus PN64-BB3000X1TD-NL ExpertCenter Barebone Mini PC - Core i3-1220P 12th Gen - 64 GB DDR5 - 2.5GbE - WiFi - Bluetooth - USB-C
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system is engineered with a 12th Gen Intel Core i3-1220P processor that operates at a base frequency of 1.50 GHz and can reach up to 4.40 GHz with Intel Turbo Boost technology. The platform supports up to 64 GB of DDR5 memory across two slots, utilizing the DDR5-4800 (PC5-38400) standard for improved bandwidth and efficiency over previous generations.
Connectivity is a strong focus, with a 2.5 Gigabit Ethernet port for high-speed wired networking, integrated WiFi for wireless connectivity, and Bluetooth for peripheral pairing. The rear panel includes HDMI output for display connection, while the USB complement comprises five ports in total—three USB 3.2 Gen2 Type-A and two USB 3.2 Gen2 Type-C ports for fast data transfer and modern device support.
Relevant factors for this section include Processor Type, Processor Generation, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PN64-BB3000X1TD-NL balances capable hardware with a highly compact footprint. Its support for DDR5 memory provides a forward-looking platform that can handle multitasking and application loads more efficiently than older DDR4 systems. The inclusion of a 120 W power supply ensures stable operation even when the system is fully configured with added components.
Compact, Space-Saving Design
The mini PC form factor occupies minimal desk or mounting space, making it suitable for crowded workstations, retail environments, or embedded installations where a full-sized desktop is impractical.
- Footprint under 5.12" deep
- Low-profile height of 2.28"
- VESA mount compatible (bracket not included)
Modern Connectivity Suite
Equipped with both 2.5GbE wired networking and wireless WiFi, plus multiple high-speed USB ports including USB-C, this system ensures compatibility with current peripherals and network infrastructure.
- 2.5 Gigabit Ethernet for faster file transfers
- Dual USB 3.2 Gen2 Type-C ports
- Bluetooth for wireless keyboards/mice
Deployment / Use Cases
This barebone mini PC is versatile enough for a range of light to moderate computing roles. Its compact dimensions allow it to be mounted behind a monitor or tucked under a desk, reducing clutter while maintaining access to essential ports.
For home or small office use, it can serve as a media center PC when paired with adequate storage and connected to a TV. In educational or training environments, its modest power draw and quiet operation make it a suitable choice for computer labs or library stations.
Office Productivity Station
Configure with 8-16 GB RAM, a SATA SSD, and Windows 11 for a quiet, space-efficient desktop that handles office suites, web browsing, and video conferencing without consuming desk real estate.
Digital Signage or Kiosk Controller
Its small size and HDMI output make it suitable for driving displays in retail, hospitality, or corporate lobbies. Add a low-profile SSD and use a lightweight OS for reliable 24/7 operation.
Physical Profile
The chassis is finished in Eco Black, a subdued color that blends into most environments. Measuring just 2.28 inches tall, 4.72 inches wide, and 5.12 inches deep, the system is significantly smaller than a traditional desktop tower. This compact design is reinforced by a mini PC form factor that prioritizes vertical space savings, often allowing the unit to be placed upright or mounted horizontally depending on ventilation needs.
- Width
- 4.72" (120 mm)
- Depth
- 5.12" (130 mm)
- Height
- 2.28" (58 mm)
What's in the Box
This barebone system ships with the core components needed to begin building your mini PC. The package includes the ExpertCenter PN64-BB3000X1TD-NL barebone unit itself and a compatible power adapter.
Highlights
- Intel Core i3-1220P 12th Gen processor with up to 4.40 GHz turbo frequency
- Supports up to 64 GB of DDR5-4800 memory across two slots
- 2.5 Gigabit Ethernet port for high-speed wired networking
- Integrated WiFi and Bluetooth for wireless connectivity
- Five USB ports including two USB 3.2 Gen2 Type-C
- Compact mini PC form factor (2.28" H x 4.72" W x 5.12" D)
- HDMI output for display connection
- 120 W power supply included
- Eco Black finish for discreet appearance
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN64-BB3000X1TD-NL |
| Brand Name | Asus |
| Product Line | ExpertCenter |
| Product Series | PN64 |
| Product Model | PN64-BB3000X1TD-NL |
| Product Name | ExpertCenter PN64-BB3000X1TD-NL Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Core i3 |
| Processor Generation | 12th Gen |
| Processor Model | i3-1220P |
| Processor Speed | 1.50 GHz |
| Maximum Turbo Speed | 4.40 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB 3.2 Gen2 Type-C |
| Number of SATA Interfaces | 1 |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Eco Black |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Miscellaneous | |
| Package Contents | ExpertCenter PN64-BB3000X1TD-NL Barebone System Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What components do I need to add to make this barebone system operational?
To complete this barebone mini PC, you will need to install memory (DDR5 SODIMMs), a storage drive (2.5" SATA SSD or HDD), and an operating system. The system does not include these items, allowing you to choose capacities and brands that match your budget and performance requirements.
What is the maximum memory capacity and type supported?
This system supports a maximum of 64 GB of DDR5 memory. It uses the DDR5-4800 (PC5-38400) standard and has two memory slots, so you can install two 32 GB DDR5 SODIMM modules to reach the full capacity.
Does this mini PC include WiFi and Bluetooth?
Yes, the PN64-BB3000X1TD-NL includes integrated wireless LAN (WiFi) and Bluetooth. This allows for wireless network connectivity and pairing with Bluetooth peripherals like keyboards, mice, or headphones without needing additional adapters.
What types of storage drives can I install?
The system provides one Serial ATA/600 (SATA 6 Gb/s) interface, which is compatible with 2.5" SATA solid-state drives or hard disk drives. You can install a single 2.5" SATA drive to serve as the primary storage for the operating system and applications.
How many USB ports does it have and what are their speeds?
There are five USB ports in total: three USB 3.2 Gen2 Type-A ports and two USB 3.2 Gen2 Type-C ports. All support data transfer speeds up to 10 Gbps, providing fast connectivity for external storage, peripherals, and modern devices that use USB-C.
Can this mini PC be mounted on a monitor or wall?
The compact form factor is designed for flexible placement. While a VESA mount bracket is not included in the package, the chassis is compatible with standard VESA mounting solutions (typically 75x75 mm or 100x100 mm), allowing you to attach it to the back of a monitor or a wall mount for space-saving installations.
