Asus PN64-SYS515PX1TL ExpertCenter Mini PC - Intel Core i5-12500H - 16GB DDR5512GB NVMe SSD - Windows 11 Pro - Eco Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the PN64-SYS515PX1TL is the Intel Core i5-12500H, a 12th Gen mobile processor with hybrid architecture that balances performance and efficiency cores. This CPU supports Intel Turbo Boost Max Technology 3.0, reaching up to 4.50 GHz for demanding tasks. The system uses an Intel chipset to manage communication between components.
Memory is handled by 16 GB of DDR5 SDRAM, which offers higher bandwidth and improved power efficiency compared to previous generations. Storage is provided by a 512 GB M.2 SSD using the PCI Express NVMe 4.0 x4 interface, enabling rapid boot times, fast application loading, and quick file transfers. Graphics are powered by integrated Intel Iris Xe Graphics, which shares the system's DDR5 memory and supports up to 4K displays via the USB Type-C ports with DisplayPort 1.4.
Key Product Advantages
This Asus ExpertCenter model includes a security slot for physical theft deterrence and complies with RoHS environmental standards. The 120 W power adapter ensures efficient operation, and the Energy Star certification confirms its energy-conscious design.
Compact Performance
The Mini PC form factor measures just 2.28" x 4.72" x 5.12" (58 x 120 x 130 mm) and weighs approximately 2.20 lb (1000 g), making it easy to mount behind a monitor, under a desk, or in tight spaces without sacrificing the power of a 12th Gen Intel Core processor.
- Space-saving design
- Full desktop capabilities
- Easy VESA mounting potential
Modern Connectivity
Equipped with 2.5 Gigabit Ethernet for high-speed wired networking and Wi-Fi 6 (802.11ax) for fast, reliable wireless connections. The USB portfolio includes three USB 3.2 Gen 2 ports and two USB Type-C ports with DisplayPort 1.4 output and power delivery for versatile peripheral and display support.
- 2.5Gb Ethernet for network-intensive tasks
- Wi-Fi 6 for reduced latency
- USB-C with video and power
Deployment / Use Cases
The PN64-SYS515PX1TL is also well-suited for home office setups, educational environments, and light creative work. Its balanced specifications allow it to handle everyday computing tasks smoothly while remaining quiet and cool. The inclusion of Bluetooth enables wireless peripherals like keyboards, mice, and headsets for a clean workspace.
Office Productivity Hub
Ideal for general office work, handling spreadsheets, presentations, email, and web conferencing. The Windows 11 Pro operating system provides built-in security features like BitLocker and Windows Hello, while the compact size keeps desks clutter-free.
Digital Signage & Kiosk
The small form factor and low power draw make it suitable for driving digital signage displays in retail, hospitality, or corporate lobbies. The USB Type-C ports with DisplayPort output can connect to large monitors or TVs, and the system can run 24/7 with minimal footprint.
Localization and Operating System
This Asus ExpertCenter PN64-SYS515PX1TL Mini PC is configured with Windows 11 Pro 64-bit, providing a professional-grade operating system optimized for business and productivity environments. Windows 11 Pro includes advanced security features such as BitLocker device encryption, Windows Defender Antivirus, and Windows Hello for biometric authentication, ensuring data protection and streamlined access. It also supports domain join, group policy management, and remote desktop functionality, making it suitable for organizational deployments that require centralized control and compliance.
The system leverages Intel's 12th Generation Core i5-12500H processor and Intel chipset, which are designed for global compatibility and efficient performance across various regions. While the product does not include specific keyboard localization details, its standard USB ports and Bluetooth connectivity allow for easy integration with localized peripherals and input devices. This flexibility ensures the Mini PC can adapt to diverse office setups, whether in North America, Europe, or other markets, without requiring hardware modifications.
Physical Profile

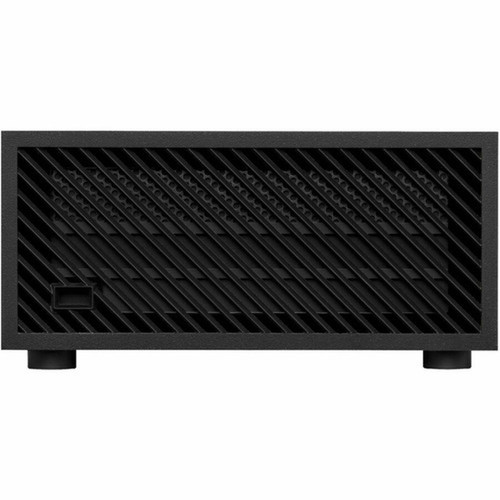

The Mini PC features a sleek Eco Black finish that blends into professional and home settings. Its dimensions of 2.28" height, 4.72" width, and 5.12" depth allow it to fit in confined areas, and the lightweight construction simplifies installation. The chassis includes ventilation for effective thermal management, and the security slot adds a layer of physical protection for public or shared spaces.
- Width
- 4.72" (120 mm)
- Depth
- 5.12" (130 mm)
- Height
- 2.28" (58 mm)
- Weight
- 2.20 lb (1000 g)
What's in the Box
The package includes all necessary components to set up and start using the Mini PC immediately.
Highlights
- Intel Core i5-12500H 12th Gen processor with up to 4.50 GHz turbo speed
- 16 GB of DDR5 SDRAM for smooth multitasking and application performance
- 512 GB PCI Express NVMe 4.0 x4 M.2 SSD for fast storage and quick boot times
- Windows 11 Pro 64-bit operating system pre-installed for professional use
- Compact Mini PC form factor in Eco Black, measuring just 2.28" x 4.72" x 5.12"
- 2.5 Gigabit Ethernet and Wi-Fi 6 (802.11ax) for high-speed wired and wireless networking
- Multiple USB ports including front and rear USB Type-C with DisplayPort 1.4 output
- Energy Star certified and RoHS compliant for energy efficiency and environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN64-SYS515PX1TL |
| Brand Name | Asus |
| Product Line | ExpertCenter |
| Product Series | PN64 |
| Product Model | PN64-SYS515PX1TL |
| Product Name | ExpertCenter PN64-SYS515PX1TL Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 12th Gen |
| Processor Model | i5-12500H |
| Maximum Turbo Speed | 4.50 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C (with DP1.4 output and PD input)(Front);1 x USB 3.2 Gen 2 Type-C (Back) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Eco Black |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Weight (Approximate) | 2.20 lb (1000 g) |
| Miscellaneous | |
| Package Contents | ExpertCenter PN64-SYS515PX1TL Desktop Computer Power Adapter Power Cord Screw Pack User Manual Warranty Card |
| Features | Security Slot |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processor does this product use?
This product uses the Core i5 processor for everyday performance and multitasking.
How much memory is installed?
It includes 16 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 512 GB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
It features a display specification of Intel, giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include 2.5 Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
