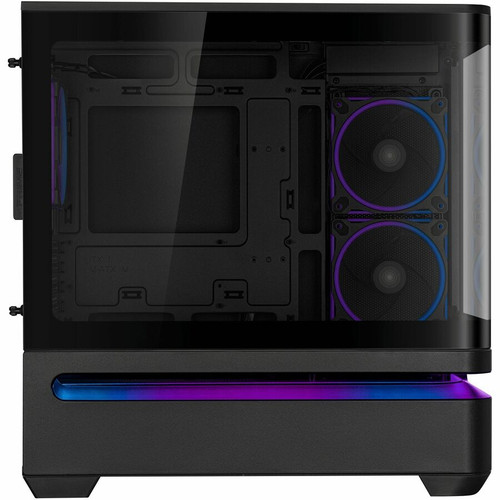

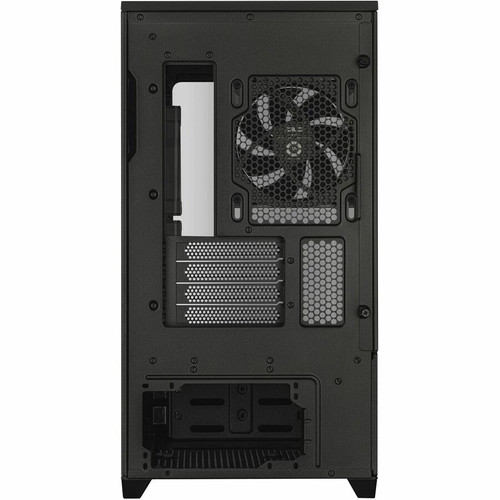

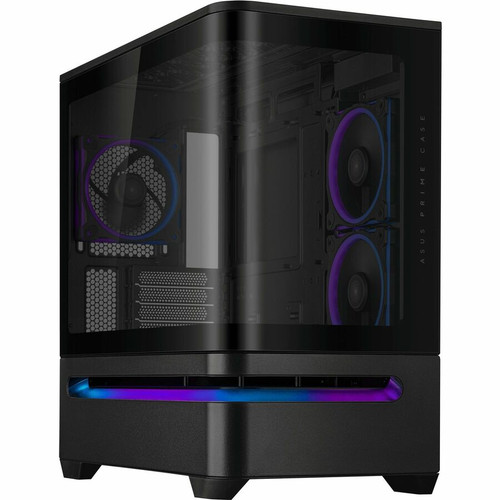

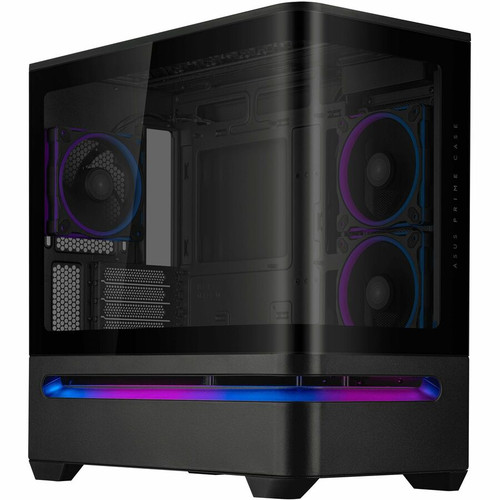

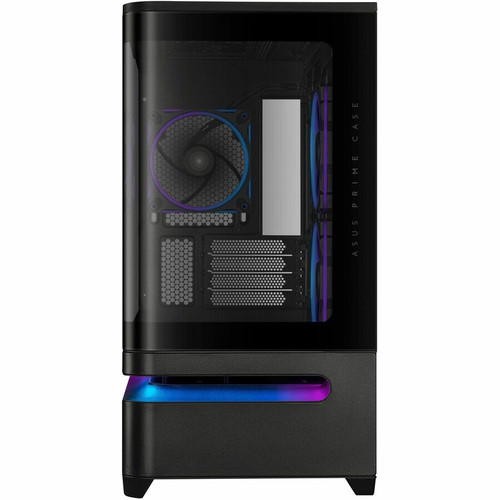

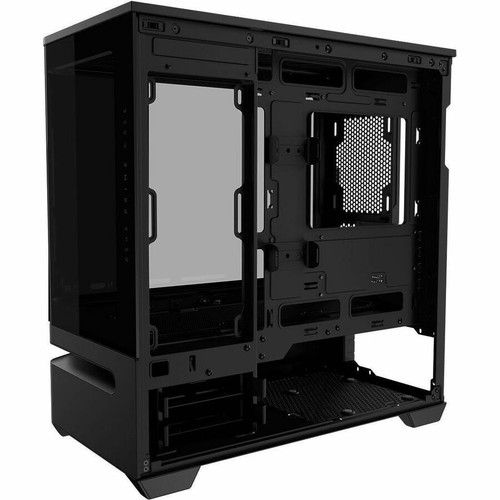

Asus PRIME AP202 TG ARGB BLACK Prime AP202 ARGB Computer Case - Black Tempered Glass - Micro ATX/Mini ITX - 3 x 120mm ARGB Fans - 2 Drive Bays
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This computer case supports Micro ATX and Mini ITX form factor motherboards with four total expansion slots for graphics cards and other PCIe devices. The cooling system accommodates 120mm and 140mm fans throughout nine supported positions, with three 120mm ARGB fans pre-installed for immediate thermal performance.
Internal clearances include 6.89" (175 mm) maximum CPU cooler height, 7.87" (200 mm) maximum PSU length, and 16.54" (420 mm) maximum GPU length, providing compatibility with mainstream cooling solutions and graphics cards. The chassis includes dedicated cable routing channels and dust filters to maintain clean airflow.
Relevant factors for this section include Motherboard Supported, Number of Fans Supported, Number of Fans Installed, Number of Internal 2.5"/3.5" Bays. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Prime AP202 ARGB case combines thermal engineering with visual design for builders seeking both performance and aesthetics. Its curved side panel and tempered glass construction showcase internal components while maintaining structural integrity.
Enhanced Cooling Capacity
With support for up to nine fans and three pre-installed 120mm ARGB units, this case provides substantial airflow for maintaining optimal component temperatures during intensive workloads.
- 3 × 120mm ARGB fans included
- Supports 120mm/140mm fan sizes
- Dust filters on intake areas
Modern Front I/O
The front panel includes USB 3.2 Gen 2x2 Type C alongside traditional USB 3.2 Gen 1 ports, delivering high-speed data transfer capabilities directly from the case front.
- USB 3.2 Gen 2x2 Type C port
- 2 × USB 3.2 Gen 1 ports
- Audio in/out + microphone jacks
Deployment / Use Cases
This case suits compact workstation builds, gaming systems, and home office computers where space efficiency meets thermal requirements. The Micro ATX and Mini ITX compatibility makes it ideal for smaller footprint systems without sacrificing expansion capabilities.
The included ARGB lighting and tempered glass panels cater to visually oriented builds, while the two internal drive bays accommodate both SSD and HDD storage configurations. The case's 16.54" GPU clearance supports most mainstream graphics cards for gaming or content creation applications.
Compact Gaming Systems
With support for full-length graphics cards and multiple cooling options, this case enables powerful gaming builds in a Micro ATX or Mini ITX form factor.
- Fits graphics cards up to 16.54"
- Multiple fan positions for GPU cooling
- Four expansion slots for add-in cards
Office & Productivity Workstations
The clean aesthetic and practical storage options make this case suitable for professional environments where both form and function matter.
- Two internal drive bays
- Front USB-C for modern peripherals
- Cable management for clean interiors
Physical Profile
Measuring 17.36" × 9.29" × 18.11" (441 × 236 × 460 mm), this black tempered glass case presents a compact footprint while accommodating standard components. The 19.84 lb weight reflects its sturdy construction with tempered glass panels on front and side surfaces.
The case includes mounting points for both 2.5" and 3.5" drives in its two internal bays, with dedicated cable routing channels behind the motherboard tray. Front and side tempered glass panels provide component visibility while maintaining the case's structural integrity.
- Width
- 9.29" (236 mm)
- Depth
- 18.11" (460 mm)
- Height
- 6.89" (175 mm)
- Weight
- 19.84 lb (9000 g)
- Length
- 7.87" (200 mm)
Highlights
- Supports Micro ATX and Mini ITX motherboards
- Includes three 120mm ARGB fans pre-installed
- Front and side tempered glass panels
- Two internal 2.5"/3.5" drive bays
- USB 3.2 Gen 2x2 Type C front port
- Maximum GPU length: 16.54" (420 mm)
- Maximum CPU cooler height: 6.89" (175 mm)
- Thermally optimized design with dust filters
- Cable management system included
- Black color with tempered glass construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME AP202 TG ARGB BLACK |
| Brand Name | Asus |
| Product Model | ASUS Prime AP202 ARGB |
| Product Name | Prime AP202 ARGB Computer Case |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | Micro ATX,Mini ITX |
| Number of Fans Supported | 9 |
| Number of Fans Installed | 3 |
| Fan Size Supported | 4.72" (120 mm),5.51" (140 mm) |
| Installed Fan Size | 4.72" (120 mm) |
| Installed Fan Size Details | 3 × 120mm |
| Features | Thermally Optimized,Curved Side Panel,ARGB Fan,Cable Management,Dust Filter |
| Window Panel | Yes |
| Window Panel Location | Front,Side Panel |
| Bays | |
| Number of Internal 2.5"/3.5" Bays | 2 |
| Number of Total Expansion Bays | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| USB Port Details | 2 x USB 3.2 Gen 1,1 x USB 3.2 Gen 2x2 Type C |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Microphone | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Tempered Glass |
| Cooler Type | Fan Cooler |
| Maximum CPU Cooler Height | 6.89" (175 mm) |
| Maximum PSU Length | 7.87" (200 mm) |
| Maximum GPU Length | 16.54" (420 mm) |
| Height | 17.36" (441 mm) |
| Width | 9.29" (236 mm) |
| Depth | 18.11" (460 mm) |
| Weight (Approximate) | 19.84 lb (9000 g) |
User Manual
FAQ
What motherboard sizes does this case support?
The Asus Prime AP202 ARGB case supports both Micro ATX and Mini ITX form factor motherboards. This compatibility allows for compact system builds while maintaining standard mounting points and connectivity. The case includes four expansion slots to accommodate graphics cards and other PCIe devices commonly used with these motherboard sizes.
How many fans come installed, and what sizes are supported?
This case includes three 120mm ARGB fans pre-installed for immediate cooling capability. The chassis supports up to nine total fans in either 120mm or 140mm sizes, providing flexibility for additional cooling configurations. The pre-installed fans feature addressable RGB lighting that can be synchronized with compatible motherboard software.
What are the maximum component clearances?
The case accommodates CPU coolers up to 6.89" (175 mm) in height, power supplies up to 7.87" (200 mm) in length, and graphics cards up to 16.54" (420 mm) in length. These clearances support most mainstream air coolers, standard ATX power supplies, and full-length graphics cards for gaming or workstation applications.
What front panel connectivity is available?
The front I/O panel includes two USB 3.2 Gen 1 ports, one USB 3.2 Gen 2x2 Type C port, separate audio input and output jacks, and a microphone jack. This provides modern high-speed data transfer capabilities alongside traditional audio connectivity, all accessible from the case front for convenient peripheral connection.
How many drive bays does the case have?
This case includes two internal drive bays that support both 2.5" and 3.5" form factor drives. These bays accommodate solid-state drives or traditional hard disk drives, providing storage flexibility for operating systems, applications, and data storage. The bays are positioned for optimal airflow and cable management.
What materials are used in the case construction?
The Asus Prime AP202 ARGB case features black tempered glass panels on both the front and side, providing component visibility and structural durability. The chassis includes dust filters on intake areas and incorporates a cable management system with dedicated routing channels behind the motherboard tray for clean interior organization.
