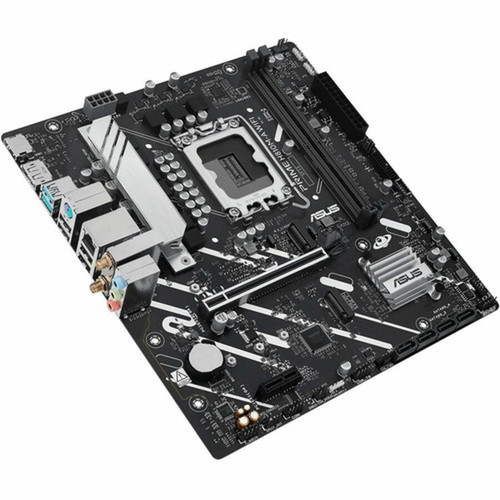

Asus PRIME H810M-A WIFI-CSM Desktop Motherboard - Intel H810 Chipset - LGA-1851 Socket - Micro ATX - DDR5 6400MHz - Wi-Fi 6E - PCIe 4.0
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This motherboard's technical architecture centers on the Intel H810 chipset, which manages data flow between the processor, memory, and peripheral interfaces. It supports a single Core Ultra CPU in the LGA-1851 socket, with memory handled by two DDR5 DIMM slots capable of up to 128 GB at 6400 MHz speeds. The memory subsystem includes ECC support for enhanced data integrity in compatible configurations.
Storage connectivity is handled by a Serial ATA/600 controller driving four SATA ports, plus two M.2 slots for NVMe SSDs. Expansion is provided through PCIe 4.0 lanes, with one x16 slot for graphics cards and one x1 slot for smaller add-in cards. Onboard video output depends on the installed processor's integrated graphics, with HDMI, DisplayPort, and VGA ports available for display connectivity.
Relevant factors for this section include AI-powered, Chipset Manufacturer, Chipset Model, Total Processor Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PRIME H810M-A WIFI-CSM combines essential modern features in a compact micro ATX form factor, making it an efficient choice for space-conscious builds without sacrificing connectivity. Its support for DDR5 memory at 6400 MHz provides a performance uplift over previous generations, while PCIe 4.0 slots ensure compatibility with current graphics cards and high-speed storage devices.
Comprehensive Wireless Connectivity
Built-in Wi-Fi 6E (802.11ax) delivers faster wireless speeds and reduced latency compared to older standards, with Bluetooth 5.3 for peripheral connections. This eliminates the need for separate adapters in most deployment scenarios.
- Wi-Fi 6E for high-speed wireless
- Bluetooth 5.3 for accessory pairing
- Gigabit Ethernet for wired backup
Flexible Storage Options
Dual M.2 interfaces support NVMe SSDs for boot drives and primary storage, while four SATA 6Gb/s ports accommodate additional hard drives or SSDs. This configuration balances speed with capacity for varied workload requirements.
- Two M.2 slots for NVMe SSDs
- Four SATA 6Gb/s ports
- SATA cables included in package
Deployment / Use Cases
This motherboard is well-suited for compact office desktops and general-purpose home systems where space efficiency matters. Its micro ATX dimensions fit standard small form factor cases while still providing essential expansion through PCIe slots and multiple storage interfaces. The inclusion of Wi-Fi 6E makes it particularly appropriate for environments where running Ethernet cables is impractical.
For business workstations, the board's support for Core Ultra processors and DDR5 memory with ECC capability provides a stable platform for productivity applications. The multiple display outputs (HDMI, DisplayPort, VGA) allow multi-monitor setups without requiring a discrete graphics card when using processors with integrated graphics. Home users building media centers or compact gaming systems will appreciate the PCIe 4.0 x16 slot for dedicated graphics and the high-speed storage options for game libraries.
Office Workstation Build
Combine with a Core Ultra processor, 16-32GB DDR5 memory, and an NVMe SSD for responsive performance in productivity applications. The integrated Wi-Fi and multiple display outputs support flexible office configurations.
Compact Home System
Ideal for living room PCs or space-constrained builds where the micro ATX form factor maximizes compatibility with smaller cases while still allowing graphics card installation via the PCIe 4.0 x16 slot.
Physical Profile

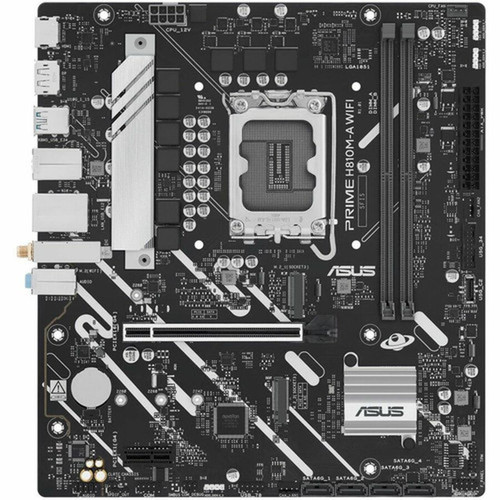

The motherboard follows the micro ATX form factor standard with dimensions of 9.60" (243.84 mm) wide by 8.75" (222.25 mm) deep. This size provides compatibility with most micro ATX and many ATX computer cases while offering a balanced mix of expansion slots and connectivity compared to smaller ITX boards. The board's layout positions the CPU socket centrally with memory slots to the right, PCIe slots along the bottom edge, and storage connectors along the right side for clean cable management in properly designed cases.
- Width
- 9.60" (243.84 mm)
- Depth
- 8.75" (222.25 mm)
What's in the Box
The package includes all essential components for motherboard installation and basic storage connectivity.
Highlights
- Intel H810 chipset with LGA-1851 socket for Core Ultra processors
- Dual DDR5 memory slots supporting up to 128 GB at 6400 MHz
- Integrated Wi-Fi 6E (802.11ax) and Bluetooth 5.3 wireless connectivity
- PCIe 4.0 expansion with x16 and x1 slots for graphics and add-in cards
- Dual M.2 interfaces and four SATA 6Gb/s ports for flexible storage
- HDMI, DisplayPort, and VGA video outputs for display flexibility
- 7.1 channel audio with S/PDIF header for enhanced sound
- Micro ATX form factor (9.60" x 8.75") for compact builds
- RoHS compliant and TCO certified for environmental standards
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME H810M-A WIFI-CSM |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | H810M-A WIFI-CSM |
| Product Name | PRIME H810M-A WIFI-CSM Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H810 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core Ultra |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 6400 MHz |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 8.75" (222.25 mm) |
| Miscellaneous | |
| Package Contents | PRIME H810M-A WIFI-CSM Desktop Motherboard 2 x SATA 6Gb/s cables 1 x I/O shield 1 x Screw package for M.2 SSD 1 x ACC Express activation key card 1 x Quick start guide |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this motherboard?
The Asus PRIME H810M-A WIFI-CSM supports Intel Core Ultra processors using the LGA-1851 socket. This includes current-generation Core Ultra CPUs designed for the H810 chipset platform. The board accommodates a single processor and relies on the CPU's integrated graphics for video output when a discrete graphics card is not installed.
What type of memory does this motherboard support?
This motherboard supports DDR5 SDRAM memory through two DIMM slots. It can accommodate up to 128 GB total memory capacity at speeds up to 6400 MHz. The memory subsystem includes ECC (Error-Correcting Code) support when using compatible processors and memory modules, which helps maintain data integrity in business and workstation environments.
Does this motherboard have built-in Wi-Fi and Bluetooth?
Yes, the PRIME H810M-A WIFI-CSM includes integrated Wi-Fi 6E (IEEE 802.11ax) wireless networking and Bluetooth 5.3. The Wi-Fi 6E support provides faster speeds, reduced latency, and access to the 6 GHz band where available. Bluetooth 5.3 offers improved connectivity for peripherals like keyboards, mice, and audio devices without requiring additional adapters.
What storage interfaces are available on this motherboard?
The motherboard provides multiple storage options: two M.2 interfaces for NVMe SSDs, four SATA 6Gb/s ports for hard drives or SATA SSDs, and a Serial ATA/600 controller. The M.2 slots support PCIe-based storage devices, while the SATA ports accommodate traditional drives. This combination allows for a fast NVMe boot drive alongside higher-capacity SATA storage for a balanced storage configuration.
What expansion slots does this motherboard have?
The board includes two PCI Express 4.0 expansion slots: one PCIe x16 slot for graphics cards and one PCIe x1 slot for smaller add-in cards like sound cards or network adapters. The PCIe 4.0 standard provides double the bandwidth of PCIe 3.0, ensuring compatibility with current-generation graphics cards and high-speed storage expansion cards.
What video outputs are available on this motherboard?
The motherboard features three video output options: HDMI, DisplayPort, and VGA. These outputs are active when using processors with integrated graphics. The HDMI and DisplayPort connections support digital audio and video transmission, while the VGA port provides compatibility with older monitors. Multiple displays can be connected simultaneously depending on the processor's capabilities and driver support.
