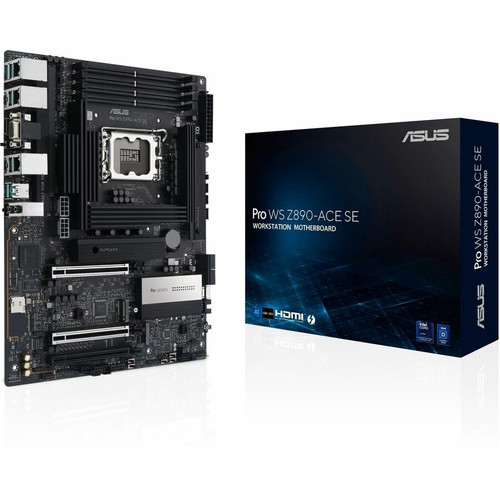

Asus PRO WS Z890-ACE SE Workstation Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX - 192GB DDR5 ECC - 4x M. 2 - 3x PCIe x16 - Thunderbolt 4
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The PRO WS Z890-ACE SE leverages the Intel Z890 chipset to provide a stable foundation for Core Ultra processors. It accommodates up to 192GB of DDR5 SDRAM across four DIMM slots, operating at speeds up to 9066 MHz with ECC support for enhanced data integrity.
Storage expansion is facilitated by four M.2 interfaces and eight SATA 6Gb/s ports, with RAID 0, 1, 5, and 10 support for data redundancy and performance. The board includes three PCI Express x16 slots compliant with PCIe 4.0 and 5.0 standards, offering substantial bandwidth for graphics cards and other expansion cards.
Relevant factors for this section include AI-powered, Chipset Manufacturer, Chipset Model, Total Processor Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This motherboard excels in professional scenarios where reliability, expandability, and high-speed connectivity are paramount. Its design prioritizes both performance and durability, making it suitable for extended operation in workstation configurations.
Advanced Memory Support
With DDR5 technology and ECC, the board ensures fast, error-corrected memory operations critical for data-sensitive applications.
- Up to 192GB capacity
- 9066 MHz speed
- ECC for data integrity
Comprehensive Connectivity
Dual Thunderbolt 4 ports, three multi-gigabit Ethernet ports, and multiple USB options provide versatile peripheral and network integration.
- 2x Thunderbolt 4
- 10GbE support
- 8x USB ports
Robust Expansion
Four M.2 slots and three PCIe x16 slots allow for extensive storage and add-in card configurations, supporting high-performance workloads.
- 4x M.2 for NVMe SSDs
- 3x PCIe x16 slots
- RAID 0,1,5,10 support
Deployment / Use Cases
The PRO WS Z890-ACE SE is ideal for professional workstations in fields such as engineering, scientific research, media production, and financial analysis. Its combination of high-speed memory, ample storage options, and powerful connectivity supports applications that require substantial computational resources and data throughput.
In engineering and design environments, the board's PCIe 5.0 slots and Thunderbolt 4 ports facilitate the use of high-end GPUs and external storage arrays. For data analysis and virtualization, the ECC memory and RAID capabilities ensure data reliability and system stability during prolonged operations.
Engineering & Design Workstations
Supports multiple GPUs and fast storage for CAD, simulation, and 3D rendering tasks.
Data Science & Research Systems
ECC memory and high-speed interfaces handle large datasets and complex computations reliably.
Physical Profile
The motherboard uses the standard ATX form factor, measuring 12.01 inches in width and 9.61 inches in depth. This size provides ample space for component layout and cooling solutions, ensuring compatibility with a wide range of ATX cases and facilitating efficient heat dissipation in workstation builds.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 12.01" (305 mm), 9.61" (244 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12.01" (305 mm)
- Depth
- 9.61" (244 mm)
What's in the Box
The package includes all essential components for installation and setup.
Highlights
- Supports Intel Core Ultra processors with LGA-1851 socket
- Accommodates up to 192GB of DDR5 ECC memory at 9066 MHz
- Features four M.2 interfaces for high-speed NVMe storage
- Includes three PCI Express x16 slots with PCIe 4.0/5.0 support
- Equipped with dual Thunderbolt 4 ports for fast data transfer
- Offers three network ports with 10GbE capability
- Provides eight SATA 6Gb/s interfaces with RAID 0,1,5,10 support
- ATX form factor ensures broad case compatibility and cooling
- Includes comprehensive package with cables and accessories
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRO WS Z890-ACE SE |
| Brand Name | Asus |
| Product Line | Pro |
| Product Model | WS Z890-ACE SE |
| Product Name | Pro WS Z890-ACE SE Workstation Motherboard |
| Product Type | Workstation Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core Ultra |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported | 9066 MHz |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2600 |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 4.0,PCI Express 5.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12.01" (305 mm) |
| Depth | 9.61" (244 mm) |
| Miscellaneous | |
| Package Contents | Pro WS Z890-ACE SE Workstation Motherboard 2 x SATA 6Gb/s cables 1 x AMI license sticker 1 x I/O shield 2 x M.2 Q-Latch packages 2 x M.2 rubber packages 1 x Q-connector 1 x ACC Express activation key card 1 x Quick start guide |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this motherboard?
The Asus PRO WS Z890-ACE SE supports Intel Core Ultra processors using the LGA-1851 socket. This compatibility ensures you can utilize the latest Intel CPU architectures for high-performance computing tasks in workstation environments.
How much memory can this motherboard support?
This motherboard supports a maximum of 192GB of DDR5 SDRAM across four DIMM slots. It also features ECC (Error-Correcting Code) memory technology, which helps detect and correct data corruption, enhancing system reliability for critical applications.
What storage options are available on this board?
The board includes four M.2 interfaces for NVMe SSDs and eight SATA 6Gb/s ports for traditional drives. It supports RAID levels 0, 1, 5, and 10, allowing for configurations that prioritize speed, redundancy, or a balance of both depending on your storage needs.
What expansion slots does this motherboard have?
There are three PCI Express x16 slots that comply with PCIe 4.0 and 5.0 standards. These slots provide high bandwidth for graphics cards, network adapters, or other expansion cards, making the board suitable for multi-GPU setups or adding specialized hardware.
What connectivity features are included?
Connectivity includes two Thunderbolt 4 ports for high-speed data transfer, three network RJ-45 ports supporting Gigabit, 2.5GbE, and 10GbE Ethernet, eight USB ports, and video outputs like HDMI and DisplayPort. This range supports fast peripherals, networking, and display connections.
What is the form factor and warranty of this motherboard?
The motherboard uses the ATX form factor, measuring 12.01 by 9.61 inches, ensuring compatibility with standard ATX cases. It comes with a 3-year limited warranty and complies with RoHS environmental standards, providing durability and regulatory adherence.
