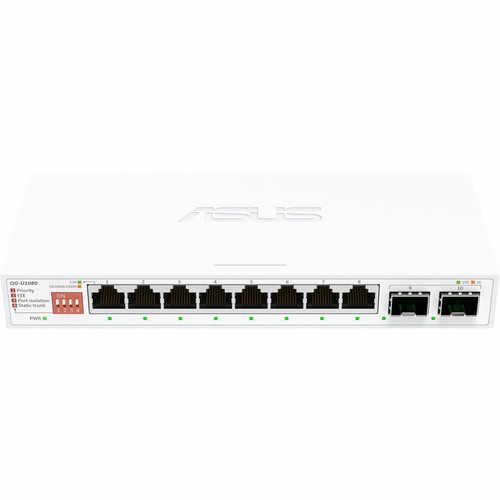

Asus QG-U1080 8-Port 2.5G + 2-Port 10G SFP+ Unmanaged Desktop Switch - Layer 2 - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 2 of the OSI model, providing basic switching capabilities including loop detection and IEEE 802.3x flow control. It supports twisted pair cabling for distances up to 100 meters and optical fiber via the SFP+ slots, offering flexibility in media selection based on deployment needs.
The 2.5GBase-T ports deliver 2.5 times the throughput of standard Gigabit Ethernet, while the 10GBase-X SFP+ slots enable high-speed uplinks to servers, network storage, or aggregation switches. With a maximum data transfer rate of 1.25 GB/s, the switch can handle demanding applications like 4K video streaming, large file transfers, and multi-device connectivity without bottlenecks.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The QG-U1080 combines multi-gigabit performance with unmanaged simplicity, offering an accessible entry point to 2.5G and 10G networking. Its balanced port configuration provides ample connectivity for workstations and devices while maintaining high-speed uplink capability for network backbone connections.
Intelligent Operation Modes
Four pre-configured intelligent modes optimize switch behavior for different scenarios, automatically adjusting settings for gaming, streaming, office work, or standard switching without requiring manual configuration.
- Auto-optimizes for application types
- No configuration required
- Maintains network efficiency
Silent Desktop Design
With fanless operation and a compact footprint, the switch operates silently in office or home environments where noise reduction is important. The white finish blends with modern decor while the small size minimizes desk space consumption.
Deployment / Use Cases
The QG-U1080 serves as an ideal network hub for small offices transitioning to multi-gigabit infrastructure, providing immediate bandwidth improvements for workstations, network-attached storage, and collaboration systems. Its unmanaged nature makes it particularly suitable for environments without dedicated IT staff, where simplicity and reliability are paramount.
In home networking scenarios, the switch can aggregate high-bandwidth devices like gaming consoles, media servers, and work-from-home setups, ensuring smooth performance for latency-sensitive applications. The SFP+ uplinks enable future-proof connections to compatible routers or switches, protecting the investment as network demands grow.
Small Office Network Core
Connect up to eight workstations at 2.5G speeds while maintaining 10G uplinks to servers or internet gateways for responsive business applications and file sharing.
Home Media & Gaming Hub
Distribute high-bandwidth streaming and gaming traffic across multiple devices without congestion, supporting 4K video, game downloads, and simultaneous device connectivity.
Physical Profile
The switch features a compact desktop design measuring 7.60" wide × 3.31" deep × 1.02" high (193 × 84.1 × 26 mm) with a weight of 14.82 oz (420 g). Its white finish and minimal footprint allow discreet placement on desks, shelves, or media centers. The included power adapter provides 12V input, and the switch operates without active cooling for completely silent performance in any environment.
- Width
- 7.60" (193 mm)
- Depth
- 3.31" (84.10 mm)
- Height
- 1.02" (26 mm)
- Weight
- 14.82 oz (420 g)
Highlights
- 8 x 2.5 Gigabit Ethernet ports for multi-device connectivity
- 2 x 10G SFP+ uplink slots for high-speed backbone connections
- Layer 2 switching with loop detection and flow control
- Plug-and-play operation with zero configuration required
- Four intelligent modes for optimized application performance
- Compact white desktop design with silent fanless operation
- Supports twisted pair and optical fiber media types
- IEEE 802.3 standards compliance for reliable interoperability
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | QG-U1080 |
| Brand Name | Asus |
| Product Model | QG-U1080 |
| Product Name | QG-U1080, 8-Port 2.5G and 2-Port 10G SFP+ Unmanaged Switch, Support 4 Intelligent Modes, Home Network Hub, Office Ethernet Splitter, Plug and Play, Easy Setup, Desktop, Silent Operation |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Loop Detection,Plug and Play |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x 2.5 Gigabit Ethernet Network,2 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | 2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 2.5GBase-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3,IEEE 802.3az,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Input Voltage | 12 V |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Product Color | White |
| Form Factor | Desktop |
| Height | 1.02" (26 mm) |
| Width | 7.60" (193 mm) |
| Depth | 3.31" (84.10 mm) |
| Weight (Approximate) | 14.82 oz (420 g) |
| Miscellaneous | |
| Package Contents | QG-U1080, 8-Port 2.5G and 2-Port 10G SFP+ Unmanaged Switch, Support 4 Intelligent Modes, Home Network Hub, Office Ethernet Splitter, Plug and Play, Easy Setup, Desktop, Silent Operation Power Adapter Quick Start Guide Warranty Card |
User Manual
FAQ
What types of devices can I connect to the 2.5G Ethernet ports?
The eight 2.5G Ethernet ports support any device with an RJ-45 Ethernet interface, including computers, network-attached storage (NAS), gaming consoles, media streamers, and IP cameras. These ports automatically negotiate speeds from 10/100/1000/2500 Mbps, making them compatible with both standard Gigabit and newer 2.5G devices. The increased bandwidth is particularly beneficial for devices that transfer large files or stream high-resolution content.
How do the SFP+ uplink ports work and what can I connect to them?
The two SFP+ ports are 10 Gigabit fiber optic expansion slots that accept compatible SFP+ transceiver modules. You can use these ports to connect to other switches, routers, or servers that support 10G connections, either via direct-attach copper cables or fiber optic cables with appropriate transceivers. These uplinks provide high-speed backbone connectivity that prevents bottlenecks when multiple devices access network resources simultaneously.
What does 'unmanaged' mean for this switch?
Unmanaged means the switch operates automatically without requiring configuration, monitoring, or management software. It provides basic Layer 2 switching functions including auto-negotiation, auto-MDI/MDIX, and loop detection out of the box. This makes installation as simple as connecting devices and power—ideal for users who need reliable switching without IT expertise. The four intelligent modes offer some optimization, but there's no web interface, CLI, or SNMP management available.
What are the four intelligent modes and how do they work?
The four intelligent modes are pre-configured settings that optimize switch behavior for different usage scenarios: Gaming Mode prioritizes low latency for gaming traffic, Streaming Mode optimizes for video streaming applications, Office Mode balances various business applications, and Standard Mode provides general-purpose switching. The switch automatically applies these optimizations based on detected traffic patterns, requiring no manual configuration from the user.
Can this switch be rack-mounted?
No, the QG-U1080 is designed exclusively as a desktop switch with a compact form factor measuring 7.60" wide × 3.31" deep × 1.02" high. It does not include rack ears or mounting brackets for standard rack installation. The desktop design makes it suitable for placement on desks, shelves, or media centers where rack space isn't available or necessary for the deployment.
What power requirements does this switch have?
The switch operates on 12V DC power supplied through the included power adapter. It has no Power over Ethernet (PoE) capability, so connected devices must have their own power sources. The switch itself consumes minimal power and operates without cooling fans, making it energy-efficient and completely silent—an advantage for office or home environments where noise reduction is important.
