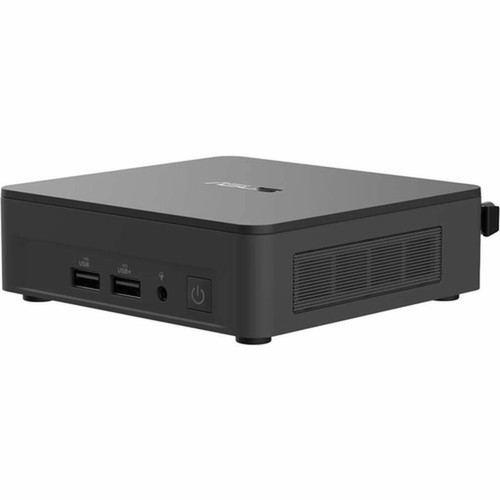

Asus RNUC13ANKI30000UI NUC 13 Pro NUC13ANKi3 Barebone Mini PC - Intel Core i3-1315U Hexa-core - 64 GB DDR4 - 2x Thunderbolt 4 - Wi-Fi 6E - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the NUC 13 Pro is the Intel Core i3-1315U, a 13th Gen mobile processor with six cores (two performance cores and four efficient cores) and a maximum turbo frequency of 4.50 GHz. This CPU supports 64-bit processing and operates with a thermal design power of 20 W, balancing performance with energy efficiency. The integrated Intel graphics utilize shared DDR4 memory, providing adequate visual output for business applications and multimedia playback.
Connectivity is a strong suit, with 2.5 Gigabit Ethernet for high-speed wired networking and Wi-Fi 6E (802.11ax) for wireless flexibility. The system includes two Thunderbolt 4 ports for high-speed data transfer, display output, and peripheral charging, alongside three USB 3.2 Gen 2 Type-A ports and one additional USB port. An HDMI port supports display connectivity, and the dual M.2 slots allow for storage expansion or add-in cards.
Key Product Advantages
The NUC 13 Pro excels in environments where space, power efficiency, and modern connectivity are priorities. Its compact form factor and VESA-mount compatibility allow for behind-monitor or under-desk installations, reducing clutter and maximizing workspace utility. The inclusion of Thunderbolt 4 ports future-proofs the system for high-speed peripherals and displays, while Wi-Fi 6E ensures robust wireless performance in congested networks.
Flexible OS Support
This barebone system supports a range of operating systems, including Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise, Red Hat Linux, and Ubuntu Linux. This flexibility enables deployments tailored to specific software requirements, from general office use to specialized industrial applications.
Efficient Power Design
With a 90 W power supply and 20 W TDP processor, the NUC 13 Pro operates quietly and efficiently, reducing energy costs and heat output. This makes it suitable for always-on applications like digital signage or light server duties where reliability and low operating costs are key.
Deployment / Use Cases
The Asus NUC 13 Pro is versatile enough for various professional and light commercial scenarios. Its small size and mounting options make it perfect for digital signage in retail stores, restaurants, or corporate lobbies, where it can drive displays discreetly. In office settings, it serves as a space-saving desktop for administrative tasks, web browsing, and document processing, with enough performance for multitasking and video conferencing.
For embedded and IoT applications, the support for Windows 10 IoT Enterprise and Linux distributions allows integration into kiosks, thin clients, or light edge-computing nodes. The robust connectivity suite, including 2.5 Gb Ethernet and Wi-Fi 6E, ensures reliable network access in diverse environments, from remote offices to smart classrooms.
Home Office or Remote Work
Ideal for telecommuters needing a compact, powerful system that fits in small home offices. The Thunderbolt 4 ports enable docking stations for multi-monitor setups, while Wi-Fi 6E provides stable connectivity for video calls and cloud applications.
Education and Training Labs
Suitable for computer labs or training rooms where space is limited. The barebone format allows institutions to standardize on specific memory and storage configurations, and the OS flexibility supports both Windows and Linux curricula.
Physical Profile
The NUC 13 Pro measures 4.61" wide by 4.41" deep by 1.46" high (117 x 112 x 37 mm), with a weight of approximately 1.11 lb (502 g). Its all-black finish and minimalist aesthetic ensure it blends seamlessly into professional environments. The compact dimensions and included VESA mount bracket allow for secure attachment to monitors, walls, or under desks, optimizing space utilization in crowded offices or retail setups.
- Width
- 4.61" (117 mm)
- Depth
- 4.41" (112 mm)
- Height
- 1.46" (37 mm)
- Weight
- 1.11 lb (502 g)
What's in the Box
The barebone system ships with all necessary components for basic setup and mounting.
Highlights
- Intel Core i3-1315U hexa-core processor (13th Gen) with up to 4.50 GHz turbo speed
- Supports up to 64 GB DDR4-3200 memory across two slots for smooth multitasking
- Dual Thunderbolt 4 ports for high-speed data, display, and charging
- Wi-Fi 6E (802.11ax) and Bluetooth 5.3 for advanced wireless connectivity
- 2.5 Gigabit Ethernet ensures reliable wired network performance
- Compact mini PC form factor with VESA mount for space-saving installations
- Flexible OS support: Windows 11, Windows 10 IoT, Red Hat Linux, Ubuntu Linux
- Includes NVMe and SATA storage controllers for fast boot and application loading
- Black chassis with dimensions of 4.61" x 4.41" x 1.46" (117 x 112 x 37 mm)
- 3-year limited warranty and RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RNUC13ANKI30000UI |
| Brand Name | Asus |
| Product Line | NUC 13 Pro |
| Product Model | NUC13ANKi3 |
| Product Name | NUC 13 Pro NUC13ANKi3 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Type | Core i3 |
| Processor Generation | 13th Gen |
| Processor Model | i3-1315U |
| Processor Core | Hexa-core (6 Core) |
| Maximum Turbo Speed | 4.50 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Intel Optane Memory Ready | No |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| Display & Graphics | |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| I/O Expansions | |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 11 Home,Windows 11 Pro,Windows 10 IoT Enterprise,Red Hat Linux,Ubuntu Linux |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Thermal Design Power | 20 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 1.46" (37 mm) |
| Width | 4.61" (117 mm) |
| Depth | 4.41" (112 mm) |
| Weight (Approximate) | 1.11 lb (502 g) |
| Miscellaneous | |
| Package Contents | NUC 13 Pro NUC13ANKi3 Barebone System AC Adapter Power Cord Collateral Flyer Warranty Card VESA Mount |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What components do I need to add to make this barebone system operational?
To complete the Asus NUC 13 Pro NUC13ANKi3, you must install memory (DDR4 SODIMMs, up to 64 GB total across two slots), storage (one or two M.2 NVMe or SATA drives), and an operating system (such as Windows 11 or a supported Linux distribution). The system does not include these items, allowing you to customize performance and capacity based on your specific needs.
What operating systems are supported by this mini PC?
This barebone system supports Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise, Red Hat Linux, and Ubuntu Linux. This broad compatibility makes it suitable for various applications, from general office use to specialized industrial or embedded deployments, giving you flexibility in software selection.
How many Thunderbolt 4 ports does the NUC 13 Pro have, and what are they used for?
The NUC 13 Pro includes two Thunderbolt 4 ports. These ports support high-speed data transfer (up to 40 Gbps), display output (compatible with monitors via USB-C or adapters), and power delivery for charging devices. They are ideal for connecting docks, external storage, or high-resolution displays, enhancing the system's connectivity and expansion capabilities.
What are the wireless connectivity features of this mini PC?
This system features Wi-Fi 6E (IEEE 802.11ax) for fast and reliable wireless networking, including support for the 6 GHz band to reduce congestion, and Bluetooth 5.3 for connecting peripherals like keyboards, mice, and headphones. These technologies ensure robust wireless performance in office or home environments with multiple devices.
Can this mini PC be mounted behind a monitor or under a desk?
Yes, the Asus NUC 13 Pro is designed for mounting with an included VESA mount bracket. Its compact size (4.61" x 4.41" x 1.46") and lightweight design (1.11 lb) allow for secure attachment to the back of compatible monitors, walls, or under desks, making it ideal for space-constrained setups like digital signage or clean desktop environments.
What is the power consumption and thermal design of this system?
The NUC 13 Pro uses a 90 W power supply and features an Intel Core i3-1315U processor with a thermal design power of 20 W. This efficient design minimizes energy usage and heat output, contributing to quiet operation and lower electricity costs, which is beneficial for always-on applications or deployments where cooling is limited.
