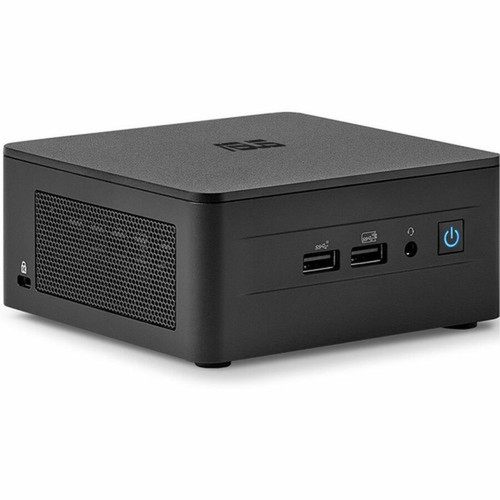

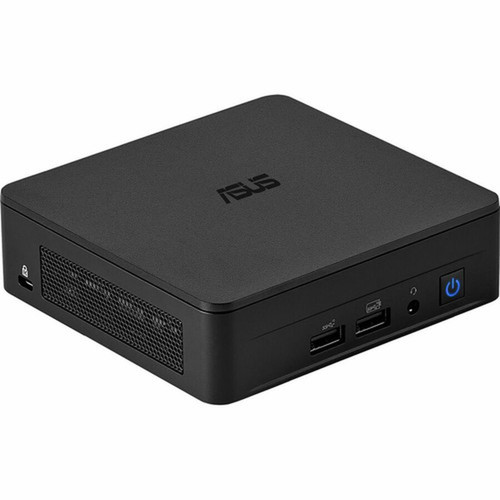

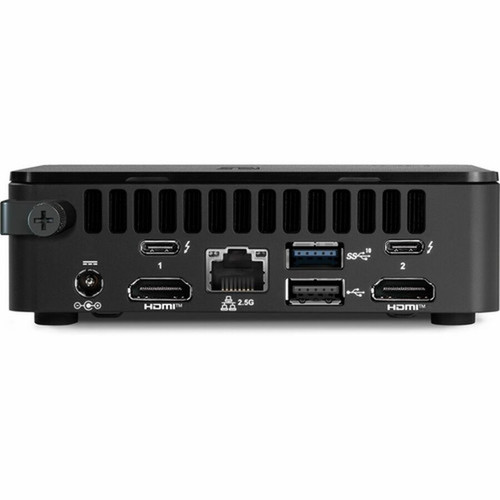

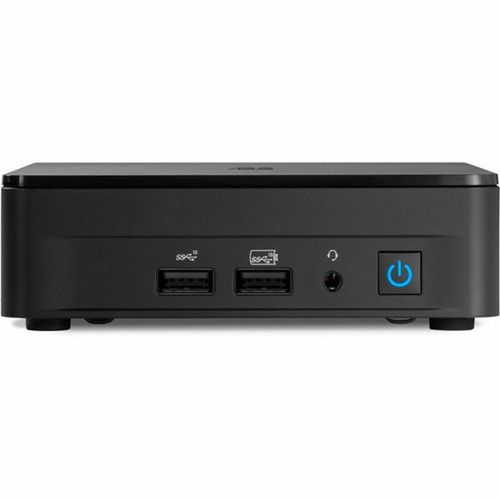

Asus RNUC13L3HV50000UI NUC 13 Pro NUC13L3Hv5 Barebone System - Core i5-1350P 12-Core - 64GB DDR4 Max - 2. 5GbE - Wi-Fi 6E - Thunderbolt 4
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the NUC 13 Pro is the Intel Core i5-1350P, a 13th Gen mobile processor featuring a hybrid architecture with 12 cores (4 Performance-cores and 8 Efficient-cores) and Intel Thread Director. This design optimizes power and performance for varied workloads. The system supports up to 64 GB of dual-channel DDR4-3200 memory across two SODIMM slots, providing ample bandwidth for applications and virtual machines.
Storage flexibility is central, with support for both NVMe PCIe and 2.5" SATA drives via the included Serial ATA interface. Integrated graphics leverage shared system memory, while connectivity is thoroughly modern: dual Thunderbolt 4 ports (USB4 compliant) for high-speed peripherals and displays, three USB 3.2 Gen 2 ports, one USB 2.0 port, HDMI output, and a 2.5 Gigabit Ethernet port for high-bandwidth networking. Wireless capabilities include Wi-Fi 6E (802.11ax) and Bluetooth 5.3 for reliable wireless connections.
Key Product Advantages
The NUC 13 Pro balances compact form factor with extensive expansion and connectivity, making it a versatile foundation for custom computing solutions. Its professional-grade I/O set ensures readiness for current and future peripherals and displays.
Modern I/O Suite
Dual Thunderbolt 4 ports deliver 40 Gbps bandwidth for docks, storage, and 4K displays, while 2.5GbE provides network headroom for NAS access or virtualization.
- 2x Thunderbolt 4 (USB4)
- 3x USB 3.2 Gen 2
- 1x 2.5 Gigabit Ethernet
- HDMI output
Deployment-Ready Design
The compact black chassis includes a VESA mount plate for secure attachment behind monitors or under desks, ideal for space-constrained environments like retail kiosks, conference rooms, or industrial control panels.
- VESA mount included
- Small footprint (under 0.5L volume)
- Low 35W TDP for energy efficiency
Broad OS Compatibility
Officially supports Windows 11, Windows 10 IoT Enterprise, and leading Linux distributions, providing a stable platform for commercial, educational, and embedded applications without vendor lock-in.
- Windows 11 Home/Pro
- Windows 10 IoT Enterprise
- Red Hat Linux
- Ubuntu Linux
Deployment / Use Cases
This barebone system is engineered for scenarios where a small, reliable, and configurable computer is required. Its balance of performance, connectivity, and size makes it suitable for both office and edge environments.
In corporate settings, the NUC 13 Pro can serve as a compact workstation for general office productivity, financial applications, or software development when paired with adequate RAM and fast NVMe storage. For digital signage, the HDMI output and VESA mounting enable clean installations behind commercial displays, while the low power draw reduces operational costs. IT departments can deploy these units as thin clients or virtual desktop infrastructure (VDI) endpoints, leveraging the 2.5GbE and Wi-Fi 6E for robust network access.
Industrial and embedded applications benefit from the wide operating temperature tolerance (when configured appropriately) and support for Linux, allowing integration into kiosks, medical imaging stations, or IoT gateways. The Thunderbolt 4 ports also enable connection to specialized peripherals like high-resolution scientific cameras or external GPU enclosures for graphics-intensive tasks.
Physical Profile
Encased in a sleek black chassis measuring just 4.61 inches wide, 4.41 inches deep, and 2.13 inches tall, the NUC 13 Pro occupies minimal desk or mounting space. The compact design, weighing approximately 1.65 pounds, facilitates easy placement in tight areas. The included VESA mount kit allows secure attachment to the back of compatible monitors or under desks, promoting a clean, cable-managed installation. The finish is professional and understated, suitable for both front-office and back-of-house deployments.
- Width
- 4.61" (117 mm)
- Depth
- 4.41" (112 mm)
- Height
- 2.13" (54 mm)
- Weight
- 1.65 lb (750 g)
What's in the Box
The barebone kit includes all necessary hardware to begin assembly, excluding memory, storage, and operating system.
Highlights
- Intel Core i5-1350P 13th Gen processor with 12 cores for efficient multitasking
- Supports up to 64 GB of DDR4-3200 memory across two SODIMM slots
- Dual Thunderbolt 4 ports (USB4) for high-speed peripherals and displays
- 2.5 Gigabit Ethernet and Wi-Fi 6E (802.11ax) for fast wired and wireless networking
- Compact black chassis with VESA mount for space-saving installations
- Official support for Windows 11, Windows 10 IoT Enterprise, Red Hat Linux, and Ubuntu
- Includes Serial ATA and NVMe storage controller support for flexible drive options
- Bluetooth 5.3 ensures stable connections with wireless accessories
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RNUC13L3HV50000UI |
| Brand Name | Asus |
| Product Line | NUC 13 Pro |
| Product Model | NUC13L3Hv5 |
| Product Name | NUC 13 Pro Kit NUC13L3Hv5 Barebone System |
| Product Type | Barebone System |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Processor Type | Core i5 |
| Processor Generation | 13th Gen |
| Processor Model | i5-1350P |
| Processor Core | Dodeca-core (12 Core) |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA,NVMe |
| Display & Graphics | |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 11 Home,Windows 11 Pro,Windows 10 IoT Enterprise,Red Hat Linux,Ubuntu Linux |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Thermal Design Power | 35 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 2.13" (54 mm) |
| Width | 4.61" (117 mm) |
| Depth | 4.41" (112 mm) |
| Weight (Approximate) | 1.65 lb (750 g) |
| Miscellaneous | |
| Package Contents | NUC 13 Pro Kit NUC13L3Hv5 Barebone System VESA Mount & Screws AC Power Adapter Power Cord |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processor is in the Asus NUC 13 Pro NUC13L3Hv5?
The system features an Intel Core i5-1350P processor from the 13th Gen family. This is a 12-core CPU (4 Performance-cores and 8 Efficient-cores) with Intel Thread Director technology, designed to balance power efficiency and performance for business and embedded applications. It operates with a 35W Thermal Design Power (TDP).
How much memory can this barebone system support?
The NUC 13 Pro NUC13L3Hv5 supports a maximum of 64 GB of DDR4 SDRAM. It has two memory slots that accept DDR4-3200/PC4-25600 SODIMM modules, enabling dual-channel configurations for improved bandwidth. You must purchase and install compatible DDR4 laptop memory separately.
What storage options are available?
This barebone system supports both NVMe PCIe solid-state drives (via M.2 slot) and 2.5-inch SATA drives. The controller supports Serial ATA and NVMe interfaces, allowing you to choose between high-speed NVMe storage for performance or cost-effective SATA SSDs/HDDs for capacity. You need to provide the storage drive separately.
What operating systems are supported?
Asus officially supports multiple operating systems: Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise, Red Hat Linux, and Ubuntu Linux. This broad compatibility makes the system suitable for commercial deployments, embedded applications, and development environments. You must acquire and install the OS separately.
What connectivity and ports does it include?
Connectivity is comprehensive: two Thunderbolt 4 ports (USB4 compliant), three USB 3.2 Gen 2 ports, one USB 2.0 port, HDMI output, a 2.5 Gigabit Ethernet port, and wireless with Wi-Fi 6E (802.11ax) and Bluetooth 5.3. This suite supports high-speed peripherals, fast networking, and modern wireless accessories.
Can this NUC be mounted behind a monitor?
Yes, the package includes a VESA mount and screws, allowing you to securely attach the compact chassis to the back of most VESA-compatible monitors (typically 75x75 mm or 100x100 mm patterns). This mounting capability is ideal for digital signage, kiosks, or clean desk setups where space is limited.
