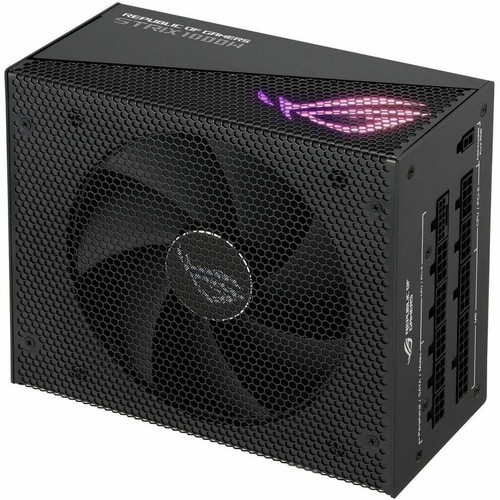

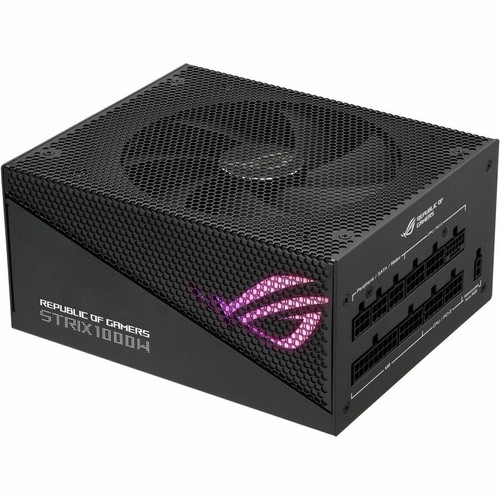

Asus ROG Strix Internal Gaming Power Supply Black With Multi Rail DC Outputs Input AC SB V ROG-STRIX-1000G-AURA-GAM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- ROG Strix 1000W Power Supply
- 1 x Power Cord
- 1 x Motherboard Power Cable (600mm)
- 2 x CPU Cable (650mm)
- 1 x PCI-E Gen 5 16-pin Cable (675mm)
- 2 x PCI-E 1-to-1 Cable (675mm)
- 1 x PCI-E (16-pin to 8-pin-8-pin) Cable (675mm)
- 1 x SATA 1-to-2 Cable (400+120mm)
- 1 x SATA 1-to-3 Cable (400+120+120mm)
- 1 x Peripheral 1-to-4 Cable (400+150+150+150mm)
- 1 x Addressable RGB Cable (800mm)
- 1 x User Manual
Specification Compliance: ATX12V,ATX 3.0
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Bearing Type: Dual Ball Fan Bearing
Fan Diameter: 135 mm (5.31")
Protection Type: Over Power,Over Voltage,Under Voltage,Short Circuit,Over Current,Over Temperature
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail: 3.3 V DC @ 22 A,5 V DC @ 22 A,12 V DC @ 83.3 A,-12 V DC @ 0.3 A,5 V SB @ 3 A
Output Current: 22 A,83.30 A,300 mA,3 A
Output Power: 1 kW
Number of SATA Power Connectors: 5
PCI Express Connector: Yes
Number of (6+2 pin) PCI Express Power Connectors: 4
Number of (4+4 pin) CPU Power Connectors: 2
Color Family: Black
Product Color: Black
Form Factor: Internal
Height: 7.09" (180 mm)
Width: 5.91" (150 mm)
Depth: 3.39" (86 mm)
Weight (Approximate): 6.68 lb (3030 g)
Package Contents:
Energy Efficiency Certification: 80 Plus Gold
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 10 Year
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG-STRIX-1000G-AURA-GAM |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus ROG |
| Product Line | ROG Strix |
| Product Name | ROG Strix 1000W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V,ATX 3.0 |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Fan Bearing |
| Fan Diameter | 135 mm (5.31") |
| Protection Type | Over Power,Over Voltage,Under Voltage,Short Circuit,Over Current,Over Temperature |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB |
| Output Voltage Detail | 3.3 V DC @ 22 A,5 V DC @ 22 A,12 V DC @ 83.3 A,-12 V DC @ 0.3 A,5 V SB @ 3 A |
| Output Current | 22 A,83.30 A,300 mA,3 A |
| Output Power | 1 kW |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 5 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Internal |
| Height | 7.09" (180 mm) |
| Width | 5.91" (150 mm) |
| Depth | 3.39" (86 mm) |
| Weight (Approximate) | 6.68 lb (3030 g) |
| Miscellaneous | |
| Package Contents |
|
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 10 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
