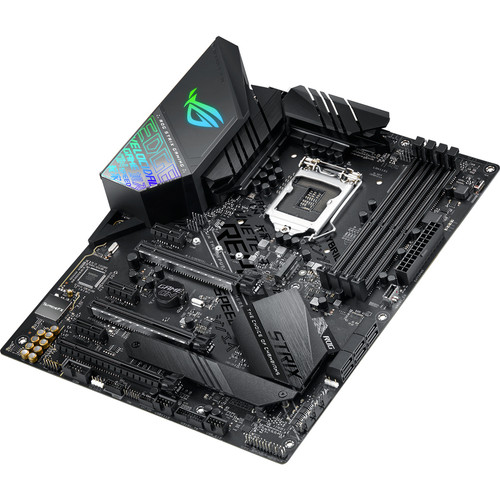

Asus ROG Strix Z390-F GAMING ATX Desktop Motherboard Intel Socket LGA-1151 Optane Memory Ready 64 GB ROG STRIX Z390-F GAMING ROG STRIX Z390-F GAMING
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- Comprehensive cooling: Onboard M.2 heatsink, water-pump header and a fan-extension header
- 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action
- Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance
Marketing Information:
Intel Z390 LGA 1151 ATX gaming motherboard with Aura Sync, DDR4 4266 MHz+, dual M.2, SATA 6Gbps, HDMI and USB 3.1 Gen 2
ROG Strix Z390-F Gaming amps the power delivery and stacks a comprehensive set of cooling options to tame Intel's latest CPUs. Together with a wealth of enhancements, including one-click optimization, the latest connectivity and futuristic styling with onboard illumination, ROG Strix Z390-F Gaming makes a formidable foundation for ATX gaming builds that go above and beyond.
SOLID HARDWARE SPECS FOR GAMING AND MORE
With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-F Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
DESIGN, CUSTOMIZATION, AND SETUP
A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix Z390-F Gaming wonderfully easy.
TUNE YOUR RIG THE WAY YOU WANT
The ROG Strix Z390-F Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
THE POWER OF INTEL
Intel Z390 chipset
The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
Chipset Manufacturer: Intel
Chipset Model: Z390
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i7,Core i5,Core i3,Celeron,Pentium Gold,Core i9
Multi GPU Supported: CrossFireX,SLI
Number of Memory Slots: 4
Memory Form Factor: UDIMM,DIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 3000 MHz,2800 MHz,3600 MHz,3866 MHz,3733 MHz,2400 MHz,3200 MHz,4000 MHz,4266 MHz,3300 MHz,3466 MHz,3400 MHz,2666 MHz,2133 MHz,4133 MHz,3333 MHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10,5,1,0
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 8
Number of USB 3.1 Ports: 6
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.0 Ports: 2
Number of Onboard USB 3.1 Ports: 1
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
- Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Supported 10 RAID levels provide data reliability and fault tolerance
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG STRIX Z390-F GAMING |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus ROG |
| Product Line | Strix |
| Product Model | Z390-F GAMING |
| Product Name | Strix Z390-F GAMING Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z390 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i7,Core i5,Core i3,Celeron,Pentium Gold,Core i9 |
| Multi GPU Supported | CrossFireX,SLI |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM,DIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 3000 MHz,2800 MHz,3600 MHz,3866 MHz,3733 MHz,2400 MHz,3200 MHz,4000 MHz,4266 MHz,3300 MHz,3466 MHz,3400 MHz,2666 MHz,2133 MHz,4133 MHz,3333 MHz |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10,5,1,0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Total Number of PCI Express Slots | 6 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 3.1 Ports | 6 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 3.0 Ports | 2 |
| Number of Onboard USB 3.1 Ports | 1 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
[/custom-specifications]
