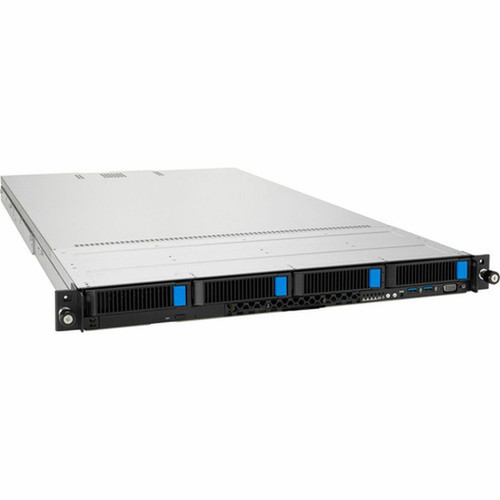

Asus RS700A-E11-RS4U-WOCPU058Z Barebone Server - 1U Rackmount - Dual EPYC Socket LGA-4094 - 4TB DDR4-3200 - 32 Slots - 4 x 3. 5" Bays
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on an AMD chipset, the RS700A-E11-RS4U-WOCPU058Z supports 64-bit processing and dual EPYC processors, enabling scalable performance for enterprise applications. The memory subsystem utilizes DDR4 SDRAM technology with a DDR4-3200/PC4-25600 standard, providing high-speed data transfer rates and low power consumption. The 32 memory slots allow for extensive memory configurations up to 4TB, supporting large datasets and virtual machine deployments.
Storage flexibility is achieved through multiple controller types, including NVMe for high-speed solid-state storage and Serial ATA/600 for traditional hard drives. The system features four 3.5" drive bays, two M.2 interfaces for NVMe SSDs, and four SATA interfaces, accommodating diverse storage needs. Expansion capabilities include three total expansion slots for additional connectivity or specialized hardware.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone server chassis delivers enterprise-grade reliability and scalability in a compact 1U form factor. The dual EPYC processor support enables substantial compute power for virtualization, cloud infrastructure, and data-intensive applications, while the high memory capacity ensures smooth operation under heavy loads.
High-Density Memory Architecture
With 32 DDR4-3200 memory slots supporting up to 4TB, the system provides exceptional bandwidth for memory-bound workloads, reducing bottlenecks in database operations and virtual machine performance.
- 32 memory slots for extensive configuration
- DDR4-3200/PC4-25600 standard for speed
- 4TB maximum capacity for large datasets
Flexible Storage Expansion
The combination of four 3.5" bays, two M.2 interfaces, and four SATA ports allows for mixed storage deployments, from high-speed NVMe SSDs to high-capacity hard drives, all managed by NVMe and SATA/600 controllers.
- 4x 3.5" bays for high-capacity drives
- 2x M.2 interfaces for NVMe SSDs
- NVMe and SATA/600 controller support
Deployment / Use Cases
The Asus RS700A-E11-RS4U-WOCPU058Z is ideal for data centers, enterprise server rooms, and cloud service providers requiring dense, scalable compute resources. Its 1U rackmount design optimizes space utilization in standard server racks, making it suitable for environments where physical footprint is a critical consideration.
This barebone system excels in virtualization host deployments, where dual EPYC processors and high memory capacity support multiple virtual machines simultaneously. It also serves well as a database server, handling large transactional workloads with efficient memory bandwidth and storage throughput. For high-performance computing clusters, the platform's expansion capabilities and processor support enable parallel processing tasks.
Virtualization Host
Supports multiple virtual machines with dual EPYC processors and up to 4TB of memory, ideal for consolidating server workloads and improving resource utilization in virtualized environments.
Database Server
Handles large database operations with high memory bandwidth and flexible storage options, ensuring fast query responses and reliable data management for enterprise applications.
Physical Profile
The chassis measures 1.73" in height, 17.68" in width, and 33.17" in depth, fitting standard 1U rack spaces with a weight of approximately 41.56 pounds. The rack-mountable form factor includes proper ventilation and structural integrity for continuous operation in data center environments. The compact design facilitates efficient cable management and maintenance access while maximizing rack density.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.68" (449 mm), 33.17" (842.50 mm), 41.56 lb (18850 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.68" (449 mm)
- Depth
- 33.17" (842.50 mm)
- Height
- 1U
- Weight
- 41.56 lb (18850 g)
Highlights
- Dual AMD EPYC processor support with Socket LGA-4094 for high-performance computing
- Up to 4TB of DDR4-3200 memory across 32 slots for extensive memory configurations
- 1U rackmount form factor optimizes space in standard server racks
- Four 3.5" drive bays and two M.2 interfaces for flexible storage expansion
- NVMe and Serial ATA/600 controllers support both high-speed and high-capacity storage
- Compatible with multiple enterprise operating systems including Red Hat Enterprise Linux and Windows Server 2019
- Four USB 3.2 Gen 1 ports for peripheral connectivity without system shutdown
- Ethernet connectivity enables network resource sharing and streamlined workflows
- RoHS environmental compliance ensures reduced hazardous substances
- Dual VGA ports for display output in headless or managed configurations
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RS700A-E11-RS4U-WOCPU058Z |
| Brand Name | Asus |
| Product Series | RS700-E11-RS4U |
| Product Model | RS700A-E11-RS4U-WOCPU058Z |
| Product Name | RS700A-E11-RS4U-WOCPU058Z Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4094 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Graphics Memory Capacity | 64 MB |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 3 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Network (RJ-45) | Yes |
| Number of SATA Interfaces | 4 |
| Number of VGA Ports | 2 |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux,SuSE Linux Enterprise Server,CentOS,Ubuntu Linux,Windows Server 2019 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.73" (43.85 mm) |
| Width | 17.68" (449 mm) |
| Depth | 33.17" (842.50 mm) |
| Weight (Approximate) | 41.56 lb (18850 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processors are compatible with this barebone server chassis?
The Asus RS700A-E11-RS4U-WOCPU058Z supports dual AMD EPYC processors using Socket LGA-4094. This compatibility enables high-performance 64-bit processing for enterprise workloads such as virtualization, database management, and computational tasks, providing scalable compute power in a 1U rackmount form factor.
How much memory can this system support and what type is used?
This barebone chassis supports up to 4TB of DDR4 SDRAM memory across 32 slots, utilizing the DDR4-3200/PC4-25600 standard. This high memory capacity and bandwidth are essential for memory-intensive applications, virtual machine deployments, and large dataset processing, ensuring optimal performance with low power consumption.
What storage options are available with this server chassis?
The system includes four 3.5" drive bays, two M.2 interfaces for NVMe SSDs, and four SATA interfaces, managed by both NVMe and Serial ATA/600 controllers. This configuration allows for flexible storage deployments, combining high-speed NVMe storage for performance-critical data with high-capacity hard drives for bulk storage needs.
Which operating systems are supported by this barebone system?
The chassis is compatible with Red Hat Enterprise Linux, SuSE Linux Enterprise Server, CentOS, Ubuntu Linux, and Windows Server 2019. This broad OS support ensures flexibility for various enterprise environments, from Linux-based server applications to Windows Server deployments, providing a dependable platform for diverse software requirements.
What are the physical dimensions and rack compatibility?
The system measures 1.73" in height, 17.68" in width, and 33.17" in depth, with a weight of approximately 41.56 pounds. It is designed as a 1U rack-mountable chassis, fitting standard 19-inch server racks, which maximizes space efficiency in data centers and server rooms while maintaining proper ventilation and accessibility.
What connectivity and expansion features does this chassis offer?
Connectivity includes four USB 3.2 Gen 1 ports, Ethernet (RJ-45), four SATA interfaces, and two VGA ports. Expansion capabilities feature three total expansion slots and two M.2 interfaces, enabling additional network cards, storage controllers, or specialized hardware to meet specific deployment needs without compromising the compact 1U design.
