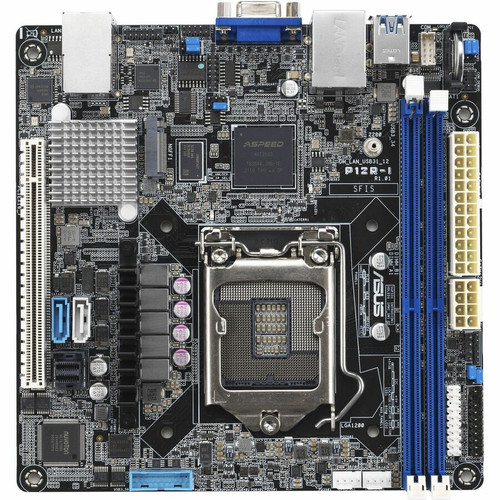

Asus Server Motherboard Intel Chipset Socket LGA-1200 Mini ITX Supporting Pentium And Xeon E Processors 64 GB DDR4 Capacity P12R-I
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Marketing Information:
PCIe 4.0 Ready
PCI Express®(PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish®API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Chipset Manufacturer: Intel
Chipset Model: C252
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Pentium,Xeon E
Number of Memory Slots: 2
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 3200 MHz,2933 MHz,2666 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Graphics Controller Model: AST2600
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 4.0
Total Number of USB Ports: 4
Number of USB 3.2 Gen 1 Ports: 4
VGA: Yes
Number of Network (RJ-45) Ports: 2
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Form Factor: Mini ITX
Width: 6.69" (170 mm)
Depth: 6.69" (170 mm)
Weight (Approximate): 1.15 lb (520 g)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- With the compatible Intel Pentium processor, experience splendid PC performance; enjoy songs, movies and get your work completed concurrently
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | P12R-I |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Model | P12R-I |
| Product Name | P12R-I Server Motherboard |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C252 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Processor Supported | Pentium,Xeon E |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 3200 MHz,2933 MHz,2666 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 6 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.69" (170 mm) |
| Depth | 6.69" (170 mm) |
| Weight (Approximate) | 1.15 lb (520 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
[/custom-specifications]
