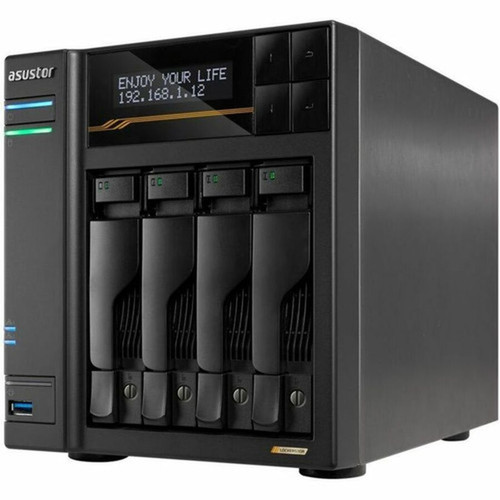

ASUSTOR AS6804T Lockerstor 4 Gen3 4-Bay NAS - AMD Ryzen Quad-Core 2.3 GHz - 16GB DDR5 ECC RAM - 4 M. 2 NVMe Slots - Dual 5GbE & USB4
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the AS6804T is the AMD Ryzen Embedded V3C14 processor, a quad-core CPU operating at 2.3 GHz that provides ample processing power for simultaneous data transfers, encryption, and application hosting. The 16GB of DDR5 SDRAM with ECC (Error-Correcting Code) ensures data integrity and system stability during intensive operations, while the 8GB flash memory accelerates system responsiveness.
Storage management is handled through a Serial ATA/600 controller supporting RAID levels 0, 1, 5, 6, 10, and JBOD. The four drive bays accommodate both hard drives and solid-state drives, with an additional PCI Express 4.0 x4 expansion slot for adding network cards or other peripherals. Network connectivity features four RJ-45 ports capable of 10GbE and 5GbE speeds, along with five USB ports including USB4 for high-speed external storage.
Relevant factors for this section include Number of Hard Drives Supported, Number of Hard Drives Installed, Number of Solid State Drive Supported, Processor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AS6804T combines enterprise-level features with desktop convenience, offering businesses a powerful storage solution without the complexity of rack-mounted systems. The AMD Ryzen processor and DDR5 ECC memory provide a stable foundation for multitasking and data-intensive applications, while the dual 5GbE/10GbE network ports ensure fast file transfers across the network.
Advanced RAID Protection
Supports multiple RAID configurations including RAID 5, 6, and 10 for optimal balance of performance, capacity, and fault tolerance. JBOD mode allows individual drive management when needed.
- Data redundancy
- Performance optimization
- Flexible configuration
High-Speed Connectivity
Four network ports with 10GbE/5GbE capability enable aggregated bandwidth for demanding workloads. USB4 ports provide 40 Gbps transfer speeds for external devices.
- Network aggregation
- Low-latency transfers
- Future-ready ports
Deployment / Use Cases
The AS6804T is ideal for businesses requiring centralized storage with advanced data protection and fast access. Its desktop form factor makes it suitable for office environments, small server rooms, or media production studios where rack space is limited but performance cannot be compromised.
Common deployments include file servers for collaborative workgroups, backup targets for network backups, media servers for streaming 4K content, and virtualization storage for lightweight virtual machines. The system's RAID capabilities make it appropriate for accounting departments, legal firms, and creative agencies that need reliable access to critical files with minimal downtime risk.
Small Business File Server
Centralize document storage, enable team collaboration, and implement automated backups with RAID protection for business continuity.
Media Production Storage
Store and stream high-resolution video projects with fast network access and SSD caching for smooth editing workflows.
Localization and Operating System
The AS6804T runs ASUSTOR Data Master (ADM) 5.0, a Linux-based operating system optimized for NAS storage management. ADM provides a web-based graphical interface accessible from any modern browser, enabling straightforward setup, user management, and application deployment without requiring specialized IT skills. The operating system supports a wide range of network protocols including SMB, NFS, FTP, iSCSI, and WebDAV, ensuring compatibility with Windows, macOS, Linux, and virtualized environments.
Localization is handled through ADM's multi-language interface, which includes English and several other major languages for system menus, alerts, and documentation. The NAS operates independently of client operating systems, meaning it can serve files to mixed environments simultaneously. ADM's app center offers additional software packages for backup, media streaming, surveillance, and virtualization, allowing businesses to customize the system for specific regional or departmental workflows without modifying core storage functions.
Protocol Compatibility
ADM 5.0 supports industry-standard protocols for seamless integration into existing networks. SMB 3.0 enables fast file sharing with Windows environments, while NFS is ideal for Linux and Unix clients. iSCSI support allows the NAS to function as a block storage target for virtualization platforms like VMware or Hyper-V.
- Cross-platform file sharing
- Virtualization-ready storage
- Enterprise-grade security protocols
Physical Profile
The AS6804T features a compact desktop design measuring 7.30" high, 6.69" wide, and 9.06" deep (185.5 x 170 x 230 mm), with a weight of approximately 7.05 pounds (3.2 kg). This form factor allows placement on desks, shelves, or in small network cabinets without requiring dedicated rack space. The sturdy construction supports four drives while maintaining a relatively small footprint for office environments.
- Width
- 6.69" (170 mm)
- Depth
- 9.06" (230 mm)
- Height
- 7.30" (185.50 mm)
- Weight
- 7.05 lb (3200 g)
What's in the Box
The package includes all necessary components for immediate setup and operation of the NAS system.
Highlights
- 4-bay NAS with support for both HDDs and SSDs
- AMD Ryzen Embedded V3C14 quad-core processor at 2.3 GHz
- 16GB DDR5 SDRAM with ECC for data integrity
- 4 M.2 NVMe slots for SSD caching or storage expansion
- Dual 5GbE network ports with 10GbE capability
- USB4 ports for high-speed external connectivity
- RAID support for data protection (0, 1, 5, 6, 10, JBOD)
- PCI Express 4.0 x4 expansion slot for add-on cards
- ADM 5.0 operating system with comprehensive protocol support
- Desktop form factor with compact dimensions
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUSTOR |
| Manufacturer Part Number | AS6804T |
| Brand Name | ASUSTOR |
| Product Line | LOCKERSTOR 4 Gen3 |
| Product Model | AS6804T |
| Product Name | LOCKERSTOR 4 Gen3 AS6804T SAN/NAS Storage System |
| Packaged Quantity | 1 |
| Product Type | SAN/NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Installed | 0 |
| Flash Memory Capacity | 8 GB |
| Processor & Chipset | |
| Processor Type | Ryzen Embedded |
| Processor Model | V3C14 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.30 GHz |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,5 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 2.5"/3.5" Bays | 4 |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, JBOD |
| Interfaces/Ports | |
| Drive Interface | Serial ATA/600 |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number of USB4 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Software | |
| Operating System | ADM 5.0 |
| Management & Protocols | |
| Protocols | TCP/IP,HTTPS,LDAP,L2TP,SFTP,UDP,SSH,CHAP,FTPS,AFP,RTSP,FTP,SMB 2.0,IPv4,PAP,WEBDAV,SSL,iSCSI,SNMP,TLS,HTTP,TFTP,NFS,UPnP,RSync,DDNS,CIFS/SMB,IPv6,SMB 3.0 |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Height | 7.30" (185.50 mm) |
| Width | 6.69" (170 mm) |
| Depth | 9.06" (230 mm) |
| Form Factor | Desktop |
| Weight (Approximate) | 7.05 lb (3200 g) |
| Miscellaneous | |
| Package Contents | LOCKERSTOR 4 Gen3 AS6804T SAN/NAS Storage System Quick Installation Guide 1 x AC Power Cord 1 x AC Power Adapter 4 x 10GbE LAN Cable(Cat 6a) 16 x Flat Head Screw (for 3.5" HDD) 16 x Flat Head Screw (for 2.5" HDD) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor does this product use?
This product uses the Ryzen Embedded processor for everyday performance and multitasking.
How much memory is installed?
It includes 8 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 0 of storage for applications, files, and everyday business data.
What graphics or display support is listed?
Display-related specifications help position Asustor Lockerstor 4 Gen3 AS6804T, 4 Bay NAS, AMD Ryzen Quad-Core 2.3 GHz, 16GB RAM ECC DDR5, 4 M.2 NVMe Slots, Dual 5GbE and Dual USB (AS6804T) for the kind of viewing experience, readability, and workspace fit buyers may expect in business it/storage arrays & nas/nas storage system deployments.
What connectivity options are available?
Connectivity options include 10 Gigabit Ethernet,5 Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is ADM 5.0, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
