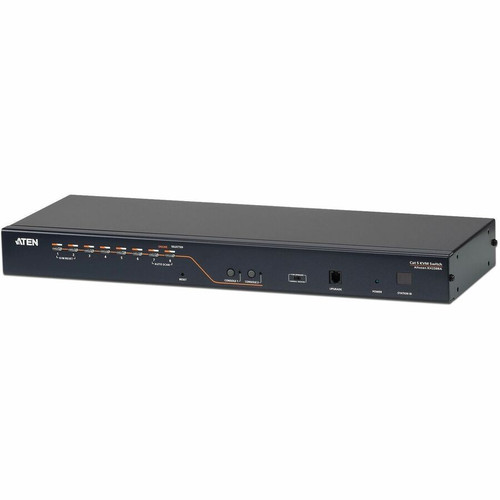

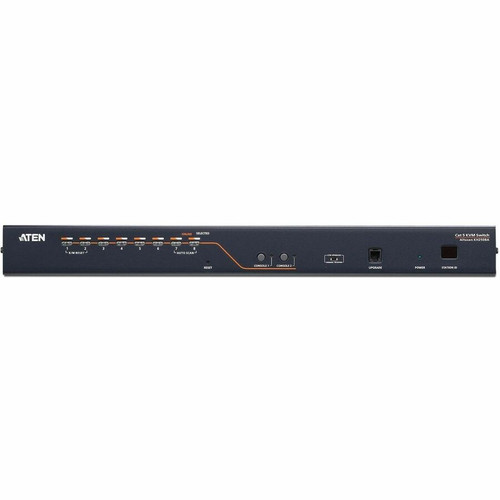

ATEN 2-Console 8-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch - 8 Computer(s) - Full HD - 1920 x 1200 - 50 Hz, (KH2508A-PB)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- KH2508A Cat 5 High-Density KVM Switch
- 1x Firmware Upgrade Cable (1.8 m)
- 1x Power Cord
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
Connectivity Technology: Wired
Number of Computers Supported: 8
Features: LED Indicator
Maximum Operating Distance: 164.04 ft (50000 mm)
Graphic Mode: Full HD
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of Network (RJ-45) Ports: 8
Number of USB Ports: 4
Number of VGA Ports: 2
Input Voltage Range: 100-240 VAC
Frequency: 50 Hz,60 Hz
Height: 1.73" (44 mm)
Width: 6.13" (155.80 mm)
Length: 17.21" (437.20 mm)
Weight (Approximate): 6.19 lb (2810 g)
Package Contents:
Compatibility:
Cat 5 KVM Switches: KH2508A, KH2516A
KVM Extenders: CE350, CE700A
KVM over IP Switches: CN800, CN8000A
LCD KVM Switches / Consoles: CL3108, CL3116
Rack KVM Switches: CS1716A
Daisy Chain Cables: 2L-2700, 2L-2701, 2L-2703, 2L-2705, 2L-2715
Limited Warranty: 3 Year
- Two KVM consoles independently and simultaneously control up to 8 directly connected computers
- By daisy chaining up to 15 additional KH2508A switches, as many as 128 computers can be controlled from the original KVM console
- Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
[custom-specifications]
| Specifications | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | KH2508A-PB |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Model | KH2508A |
| Product Name | 2-Console 8-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 8 |
| Features | LED Indicator |
| Maximum Operating Distance | 164.04 ft (50000 mm) |
| Video | |
| Graphic Mode | Full HD |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 8 |
| Number of USB Ports | 4 |
| Number of VGA Ports | 2 |
| Power Description | |
| Input Voltage Range | 100-240 VAC |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Height | 1.73" (44 mm) |
| Width | 6.13" (155.80 mm) |
| Length | 17.21" (437.20 mm) |
| Weight (Approximate) | 6.19 lb (2810 g) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Cat 5 KVM Switches: KH2508A, KH2516A KVM Extenders: CE350, CE700A KVM over IP Switches: CN800, CN8000A LCD KVM Switches / Consoles: CL3108, CL3116 Rack KVM Switches: CS1716A Daisy Chain Cables: 2L-2700, 2L-2701, 2L-2703, 2L-2705, 2L-2715 |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Additional-pdf1
[/custom-user-manual]
