Aten CS1144DP4CUN 4-Port USB Dual Display Secure KVM Switch Kit - DisplayPort/HDMI - 4K - PSD PP v4. 0 Compliant with CAC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This secure KVM switch delivers 4K UHD video resolution at 3840 x 2160 pixels across both DisplayPort and HDMI interfaces. The switch supports up to 4 computers simultaneously with 11 USB ports and 10 DisplayPorts available for comprehensive peripheral connectivity.
The wired connectivity ensures reliable data transmission without wireless interference, while the 100-240V input voltage range with 50/60 Hz frequency compatibility makes this switch suitable for global deployment in secure computing environments.
This section brings together practical product details such as Connectivity Technology, Number of Computers Supported, Features, Graphic Mode, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This secure KVM switch combines high-performance video switching with enterprise-grade security features for sensitive computing environments. The comprehensive security implementation goes beyond basic switching to provide physical protection against tampering and unauthorized access.
Enhanced Security Architecture
PSD PP v4.0 compliance ensures the switch meets rigorous security standards for peripheral sharing devices. The always-on intrusion detection system immediately disables the switch if the chassis is opened, preventing hardware-level security breaches.
- CAC authentication support
- Tamper-resistant design
- Secure port selection methods
Flexible Video Connectivity
Support for both DisplayPort and HDMI interfaces allows connection to modern displays and legacy equipment. The included 4K DisplayPort to HDMI active adapters ensure compatibility across different display technologies without signal degradation.
- Dual display support per computer
- 4K resolution capability
- Active signal conversion
Deployment / Use Cases
The ATEN CS1144DP4CUN secure KVM switch is engineered for environments where multiple computers must be accessed from a single workstation while maintaining strict security protocols. Government facilities, financial institutions, research laboratories, and corporate security operations centers benefit from its comprehensive security features and reliable performance.
This switch enables secure access to classified or sensitive systems while maintaining clear separation between different security domains. The dual display support allows operators to view information from multiple sources simultaneously, enhancing situational awareness in command and control environments.
Secure Multi-Computer Workstations
Ideal for security operations centers where analysts need to monitor multiple secure systems from a single console. The intrusion detection and CAC support prevent unauthorized physical or logical access to sensitive systems.
Government & Defense Applications
Meets stringent security requirements for government facilities handling classified information. The PSD PP v4.0 compliance ensures the switch adheres to established security protocols for peripheral sharing devices.
Physical Profile
The switch measures 13.19" (335.03 mm) in length, 6.45" (163.83 mm) in width, and 2.58" (65.53 mm) in height, with an approximate weight of 4.78 lb (2170 g). This compact form factor allows for flexible placement in rack-mounted or desktop configurations while providing sufficient internal space for the security mechanisms and switching electronics.
- Width
- 6.45" (163.83 mm)
- Height
- 2.58" (65.53 mm)
- Weight
- 4.78 lb (2170 g)
- Length
- 13.19" (335.03 mm)
What's in the Box
This complete kit includes all necessary components for immediate deployment in secure computing environments.
Highlights
- 4-port USB dual display secure KVM switch supporting 4 computers simultaneously
- PSD PP v4.0 compliant with CAC authentication support for enhanced security
- Always-on chassis intrusion detection renders switch inoperable if tampered with
- Supports both DisplayPort and HDMI video interfaces at 4K UHD resolution

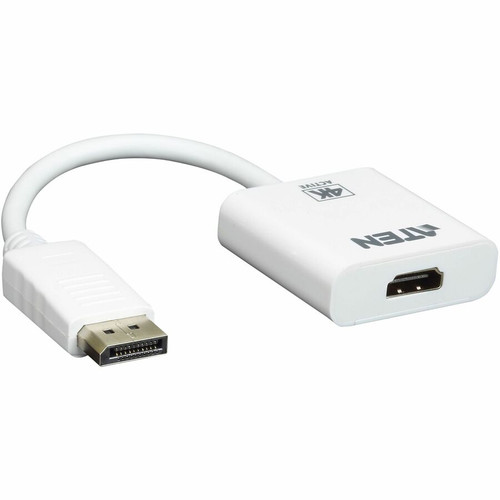

- Includes 2 x 4K DisplayPort to HDMI active adapters for flexible connectivity
- 11 USB ports and 10 DisplayPorts provide comprehensive peripheral support
- Secure port selection via pushbuttons or optional Remote Port Selector (RPS)
- 100-240V input voltage range with 50/60 Hz frequency compatibility
- Complete kit includes switch, power cord, adapters, and multiple cable kits
- Wired connectivity ensures reliable data transmission in secure environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1144DP4CUN |
| Brand Name | ATEN |
| Product Name | 4-Port USB DisplayPort/HDMI Dual Display Universal Secure KVM Switch Kit with CAC (PSD PP v4.0 Compliant) |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 4 |
| Features | Intrusion Detection,Tamper Resistant,LED Indicator |
| Video | |
| Graphic Mode | 4K UHD |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 11 |
| Number of DisplayPorts | 10 |
| Power Description | |
| Input Voltage Range | 100-240V |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Height | 2.58" (65.53 mm) |
| Width | 6.45" (163.83 mm) |
| Length | 13.19" (335.03 mm) |
| Weight (Approximate) | 4.78 lb (2170 g) |
| Miscellaneous | |
| Package Contents | CS1144DP4C 4-Port USB DisplayPort Dual Display Secure KVM Switch with CAC 1 x Power Cord 2 x 4K DisplayPort to HDMI Active Adapters 2 x 1.8M USB Universal Dual Display Secure KVM Cable Kits 2 x 1.8M USB DisplayPort Dual Display Secure KVM Cable Kits 1 x User Instructions |
| Compatibility | Video Converters VC986 - 4K DisplayPort to HDMI Active Adapter KVM Cables 2L-7D02UDPX5 - 1.8M USB DisplayPort Dual Display Secure KVM Cable Kit 2L-7D02UHDPX5 - 1.8M USB Universal Dual Display Secure KVM Cable Kit 2L-7D03UDPX5 - 3M USB DisplayPort Dual Display Secure KVM Cable Kit |
User Manual
FAQ
What security standards does this KVM switch comply with?
The ATEN CS1144DP4CUN complies with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements. This includes always-on chassis intrusion detection that immediately disables the switch if physical tampering is detected, tamper-resistant construction, and support for CAC (Common Access Card) authentication to prevent unauthorized access.
How many computers can this KVM switch support simultaneously?
This secure KVM switch supports up to 4 computers simultaneously. Each computer can connect to dual displays, allowing operators to view information from multiple systems on two monitors while using a single keyboard, mouse, and other USB peripherals through the switch's 11 USB ports.
What video resolutions and interfaces does this switch support?
The switch supports 4K UHD resolution at 3840 x 2160 pixels across both DisplayPort and HDMI interfaces. The kit includes 4K DisplayPort to HDMI active adapters to ensure compatibility with different display technologies. This allows connection to modern 4K monitors while maintaining support for legacy HDMI displays.
What is included in the complete kit package?
The complete kit includes the CS1144DP4C 4-Port USB DisplayPort Dual Display Secure KVM Switch with CAC, a power cord, 2 x 4K DisplayPort to HDMI Active Adapters, 2 x 1.8M USB Universal Dual Display Secure KVM Cable Kits, 2 x 1.8M USB DisplayPort Dual Display Secure KVM Cable Kits, and user instructions. All necessary components are provided for immediate deployment.
How does the intrusion detection system work?
The always-on chassis intrusion detection system continuously monitors the switch enclosure. If the chassis is opened or physically tampered with, the system immediately renders the KVM switch inoperable to prevent security breaches. This hardware-level security feature complements the software security measures and CAC authentication to provide comprehensive protection.
What power requirements does this KVM switch have?
The switch operates on a 100-240V input voltage range with 50/60 Hz frequency compatibility, making it suitable for global deployment in different electrical systems. The included power cord provides reliable power delivery, and the switch's design ensures stable operation in secure computing environments where uninterrupted access is critical.
