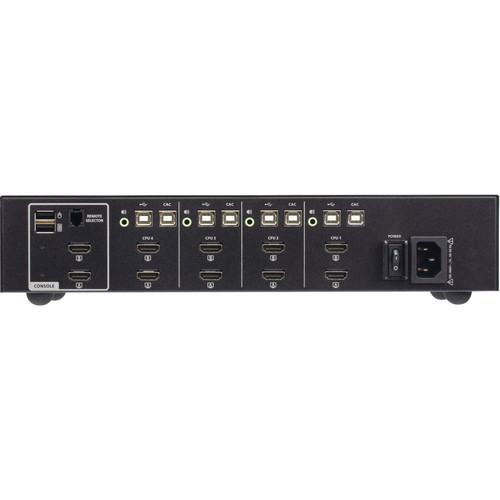

Aten CS1144H4C Secure 4-Port USB HDMI Dual Display KVM Switch - PSD PP v4. 0 Compliant - 3840 x 2160 - 4 Computers - 1 User
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switch supports a maximum video resolution of 3840x2160, delivering crisp 4K UHD visuals for dual displays. It connects to four computers, allowing one local user to switch between them seamlessly via pushbuttons or a Remote Port Selector (RPS). The interface suite includes USB and DisplayPort connectivity, with 11 USB ports and 10 DisplayPorts to accommodate keyboards, mice, and other peripherals.
Power is handled by a universal input voltage range of 100-240 VAC at 50/60 Hz, suitable for global deployment. The switch operates in a desktop form factor, measuring 2.58" in height, 6.45" in width, and 13.19" in depth, with an approximate weight of 4.72 lb. Security is enhanced through configurable device filtration and always-on chassis intrusion detection.
Key Product Advantages
The CS1144H4C stands out with its PSD PP v4.0 compliance, providing a secure foundation for peripheral sharing in sensitive environments. Its always-on chassis intrusion detection renders the switch inoperable if physical tampering is detected, preventing unauthorized access. Configurable device filtration allows administrators to control which USB authentication and HID devices can connect, adding an extra layer of security.
Enhanced Security
Complies with PSD PP v4.0 standards and includes tamper detection to disable the switch if the chassis is breached.
- PSD PP v4.0 Compliant
- Always-On Intrusion Detection
- Configurable Device Filtration
Flexible Control
Switch between four computers using pushbuttons or a Remote Port Selector (RPS), designed for secure and efficient operation.
- Pushbutton Port Selection
- Remote Port Selector (RPS) Support
- Single-User Console
Deployment / Use Cases
This secure KVM switch is ideal for government agencies, financial institutions, and corporate IT departments where data security and controlled access are paramount. It enables secure management of multiple computers from a single workstation, reducing clutter and enhancing operational efficiency in environments like secure server rooms, trading floors, and multi-display control centers.
Use cases include secure data centers requiring tamper-resistant hardware, offices with multi-computer setups for different security levels, and training facilities where instructors need to switch between demonstration systems. The dual display support at 4K resolution also makes it suitable for graphic design, video editing, and other high-visual-demand applications within secure frameworks.
Secure Data Centers
Deploy in server rooms to manage multiple servers securely with intrusion detection and device filtration.
Enterprise Workstations
Use in offices for employees handling sensitive data, allowing switching between secure and general-purpose computers.
Physical Profile
The CS1144H4C features a desktop form factor with dimensions of 2.58" (65.50 mm) in height, 6.45" (163.90 mm) in width, and 13.19" (335 mm) in depth, making it compact enough for desk or rack mounting in standard environments. Its approximate weight of 4.72 lb (2140 g) ensures stability without being cumbersome. The design supports easy integration into existing setups, with a focus on durability and secure physical construction to complement its electronic security features.
- Width
- 6.45" (163.90 mm)
- Depth
- 13.19" (335 mm)
- Height
- 2.58" (65.50 mm)
- Weight
- 4.72 lb (2140 g)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- Compliant with PSD PP v4.0 security requirements for peripheral sharing devices.
- Always-on chassis intrusion detection disables the switch if tampering is detected.
- Configurable device filtration for USB authentication and HID devices.
- Port selection via pushbuttons or Remote Port Selector (RPS) for enhanced security.
- Supports up to 4 computers with 1 local user for centralized control.
- Maximum video resolution of 3840x2160 for dual 4K UHD displays.
- Includes 11 USB ports and 10 DisplayPorts for extensive connectivity.
- Desktop form factor with dimensions of 2.58" H x 6.45" W x 13.19" D.
- Universal input voltage range of 100-240 VAC at 50/60 Hz.
- Backed by a 3-year limited warranty for reliable performance.
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1144H4C |
| Brand Name | ATEN |
| Product Line | Secure |
| Product Model | CS1144H4C |
| Product Name | 4-Port USB HDMI Dual Display Secure KVM Switch with CAC (PSD PP v4.0 Compliant) |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 11 |
| Number of DisplayPorts | 10 |
| Power Description | |
| Input Voltage Range | 100 - 240 VAC |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 2.58" (65.50 mm) |
| Width | 6.45" (163.90 mm) |
| Depth | 13.19" (335 mm) |
| Weight (Approximate) | 4.72 lb (2140 g) |
| Miscellaneous | |
| Package Contents | 4-Port USB HDMI Dual Display Secure KVM Switch with CAC (PSD PP v4.0 Compliant) 1 x Power Cord 1 x User Instructions |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is PSD PP v4.0 compliance and why is it important?
PSD PP v4.0 stands for Protection Profile for Peripheral Sharing Device, Version 4.0, a security standard that ensures devices like KVM switches meet stringent requirements for data protection and access control. Compliance is crucial for environments handling sensitive information, such as government or financial sectors, as it validates the switch's ability to prevent unauthorized access and tampering, enhancing overall security.
How many computers and users does this KVM switch support?
The ATEN CS1144H4C supports up to 4 computers, allowing a single local user to control all of them from one console. This setup is ideal for managing multiple systems in secure workspaces or data centers, enabling efficient switching between computers without the need for additional hardware or user stations.
What video resolution does this switch support for displays?
This KVM switch supports a maximum video resolution of 3840x2160, which is 4K UHD. It is designed for dual display setups, providing high-quality visuals suitable for tasks like graphic design, video editing, or monitoring applications where clarity and detail are essential in secure environments.
What security features are included to prevent unauthorized access?
Security features include always-on chassis intrusion detection, which renders the switch inoperable if physical tampering is detected, and configurable device filtration that allows administrators to restrict specific USB authentication and HID devices. Port selection is limited to pushbuttons or a Remote Port Selector (RPS), minimizing the risk of unauthorized switching and ensuring controlled access.
What are the physical dimensions and form factor of this KVM switch?
The switch has a desktop form factor with dimensions of 2.58 inches in height, 6.45 inches in width, and 13.19 inches in depth, and it weighs approximately 4.72 pounds. This compact design makes it easy to integrate into desk or rack setups, providing a stable and secure physical presence that complements its electronic security features.
What is included in the package with this KVM switch?
The package includes the 4-Port USB HDMI Dual Display Secure KVM Switch with CAC (PSD PP v4.0 Compliant), a power cord for connectivity, and user instructions for setup and operation. These components ensure you have everything needed to deploy the switch immediately in your secure environment.
