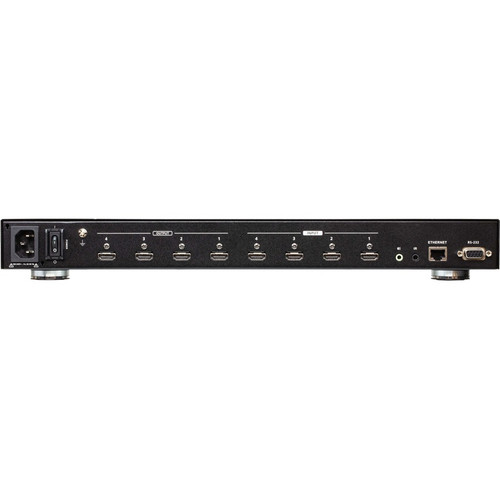

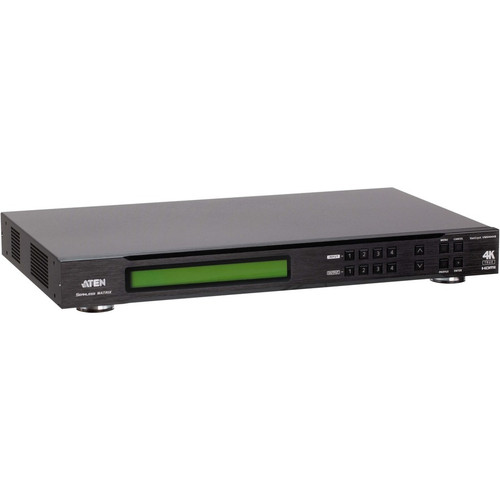

Aten VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler - 3840 x 2160 - Twisted Pair - Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This HDMI matrix switch handles uncompressed True 4K resolutions up to 4096x2160, maintaining signal integrity with HDCP 2.2 compliance for protected content. The integrated 4K scaler adjusts incoming video to the optimal display resolution, while FrameSync technology prevents image tearing by synchronizing output frame rates to input signals.
Control flexibility is provided through front-panel pushbuttons, IR remote, RS-232 serial, and Ethernet-based web GUI or Telnet access. The True 4K EDID Expert feature automatically selects the best EDID settings for smooth startup and consistent resolution handling across mixed displays.
This section brings together practical product details such as Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The VM6404HB combines matrix switching, signal scaling, and extended reach into a single desktop unit, reducing complexity in AV deployments. Its Seamless Switch™ technology ensures near-zero interruption during source changes, maintaining continuous video streams for live events, broadcast, or digital signage.
Video Wall Support
Create custom video wall layouts through an intuitive web interface, arranging content across multiple displays with precise alignment and bezel compensation.
- Custom layouts
- Web GUI configuration
- Bezel adjustment
Audio Flexibility
Extract HDMI audio to stereo outputs, allowing separate audio routing or amplification alongside video distribution.
- Audio extraction
- Stereo output
- Simultaneous video/audio
Deployment / Use Cases
Ideal for command centers, boardrooms, and retail environments, this matrix switch enables dynamic content sharing across multiple displays. Install it in control rooms to route surveillance feeds, in corporate lobbies for digital signage, or in educational settings for lecture hall presentations.
The twisted pair extension capability suits installations where HDMI cables are impractical over longer runs, such as across large conference tables or between equipment racks and ceiling-mounted projectors. Desktop placement facilitates quick setup in temporary event spaces or permanent integrated systems.
Physical Profile
Designed for desktop placement, the switch measures 10.33" wide × 17.02" deep × 1.73" high (262.30 × 432.40 × 44 mm) and weighs approximately 3.52 kg. The compact form factor fits comfortably on equipment shelves or under monitors, while the included mounting kit allows secure installation in racks or enclosures when needed.
- Width
- 10.33" (262.30 mm)
- Depth
- 17.02" (432.40 mm)
- Height
- 1.73" (44 mm)
- Weight
- 3.52 kg
What's in the Box
The package includes all components for immediate deployment.
Highlights
- 4×4 HDMI matrix switching for routing any input to any output
- True 4K resolution support up to 3840×2160@60Hz with 4:4:4 chroma
- Built-in 4K scaler optimizes input resolutions for display compatibility
- Twisted pair media extends signals up to 118.11" (3000 mm)
- Multiple control methods: front panel, IR remote, RS-232, Ethernet web GUI/Telnet
- Seamless Switch™ technology for near-zero interruption during source changes
- Video wall creation with customizable layouts via web interface
- HDCP 2.2 compliant for protected content playback
- FrameSync prevents image tearing by synchronizing frame rates
- 3-year limited warranty with WEEE and RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VM6404HB |
| Brand Name | ATEN |
| Product Line | VanCryst |
| Product Model | VM6404HB |
| Product Name | 4 x 4 True 4K HDMI Matrix Switch with Scaler |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported | Display |
| Number of Displays Supported | 4 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 × 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 118.11" (3000 mm) |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.73" (44 mm) |
| Width | 10.33" (262.30 mm) |
| Depth | 17.02" (432.40 mm) |
| Weight (Approximate) | 3.52 kg |
| Miscellaneous | |
| Package Contents | 4 x 4 True 4K HDMI Matrix Switch with Scaler 1 x Power Cord 1 x IR Remote Control 1 x IR Receiver 1 x Mounting Kit 1 x User Instructions |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the maximum resolution supported by this HDMI matrix switch?
The ATEN VM6404HB supports True 4K resolutions up to 3840×2160 at 60Hz with 4:4:4 chroma sampling. It can handle uncompressed video up to 4096×2160, making it suitable for professional 4K content distribution across multiple displays without compression artifacts.
How many displays can I connect to this switch?
This is a 4×4 matrix switch, providing four HDMI inputs and four HDMI outputs. You can connect up to four source devices and route their signals independently to up to four displays, allowing any input to be sent to any output or combination of outputs simultaneously.
What type of cable does this switch use for extended distance connections?
The switch uses twisted pair media for extended connectivity, supporting distances up to 118.11" (3000 mm). This allows you to place source devices further from displays compared to standard HDMI cables, which is useful in larger rooms or installations with separated equipment racks.
Can this switch scale different input resolutions to match my displays?
Yes, the built-in 4K scaler converts incoming video resolutions to the optimal output resolution for each connected display. This ensures compatibility when mixing sources with varying resolutions, and the FrameSync feature synchronizes output frame rates to prevent image tearing during scaling.
What control options are available for managing the matrix switching?
You can control the switch via front-panel pushbuttons, the included IR remote, RS-232 serial commands, or Ethernet connection for web GUI or Telnet access. This flexibility supports both local manual operation and integration into automated control systems for centralized management.
Is this switch suitable for creating a video wall?
Yes, the VM6404HB includes video wall functionality that allows you to create custom layouts across multiple displays through an intuitive web GUI. You can adjust bezel compensation and arrange content precisely, making it ideal for digital signage, command centers, or large-format presentations.
