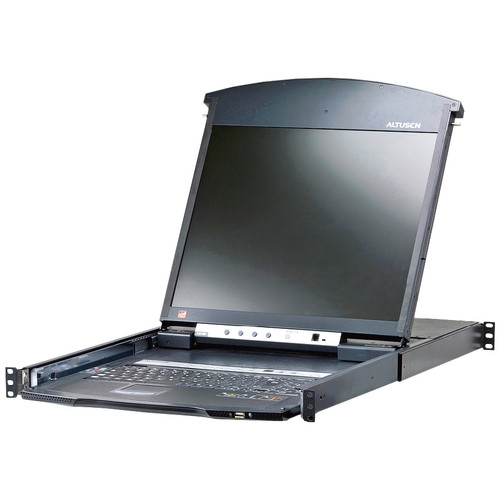

Aten KL1508AIM 8-Port 17" Dual Rail CAT5 LCD KVM Over IP Console - 1600 x 1200 UXGA - 10 Network Ports - 1U Rackmount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This LCD rack console employs digital KVM technology to deliver high-quality video and responsive control over IP networks. The 17" LCD display operates at a native resolution of 1600x1200 in UXGA mode, ensuring sharp text and detailed graphics for server monitoring and administration tasks.
Connectivity is comprehensive, with ten RJ-45 network ports for KVM over IP functionality, three USB ports for peripheral integration, two PS/2 ports for legacy keyboard and mouse support, and one VGA port for local display output. A dedicated management port enhances remote configuration and monitoring capabilities.
This section brings together practical product details such as KVM Switch, KVM Technology, Number of Computers Supported, Screen Size, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The KL1508AIM combines remote access convenience with robust hardware design, making it ideal for IT professionals managing distributed server infrastructure.
Remote Management Efficiency
Access and control up to eight servers from any network location, reducing the need for physical presence in data centers.
- KVM over IP via CAT5
- Daisy chain support for scalability
- Integrated management port
High-Quality Visuals
The 17" UXGA LCD delivers crisp 1600x1200 resolution, ensuring clear server console displays for precise administration.
- 17" LCD screen
- 1600x1200 native resolution
- Metal construction for durability
Deployment / Use Cases
This KVM console is engineered for environments where remote server management and space efficiency are critical. Its 1U rackmount form factor and CAT5-based connectivity make it suitable for data centers, server rooms, and colocation facilities.
Typical applications include centralized monitoring of rack-mounted servers, remote troubleshooting and maintenance, and multi-platform support across PC, Mac, and Sun systems. The dual rail CAT5 design allows for extended cable runs and organized infrastructure, while the integrated display and input devices eliminate the need for separate peripherals.
Data Center Server Management
Manage multiple servers from a single console, reducing clutter and improving operational efficiency in rack environments.
Remote IT Support
Perform diagnostics and configurations over IP networks, enabling support teams to address issues without physical access.
Physical Profile
The console features a compact 1U rackmount design with dimensions of 1.73" (44 mm) height and 18.90" (480 mm) width, optimizing rack space utilization. Constructed from metal, it ensures durability in demanding environments, with an approximate weight of 35.19 lb (15960 g) for stable installation.
- Width
- 18.90" (480 mm)
- Height
- 1U
- Weight
- 35.19 lb (15960 g)
What's in the Box
The package includes all necessary components for immediate deployment and setup.
Highlights
- 8-port digital KVM over IP console with 17" LCD display
- 1600x1200 UXGA resolution for clear server monitoring
- Dual rail CAT5 support for extended reach and cable management
- 10 network ports, 3 USB ports, and 2 PS/2 ports
- 1U rackmount metal chassis for space-efficient installation
- Integrated touchpad and mouse for intuitive control
- Supports daisy chaining for scalable server connections
- Compatible with PC, Mac, and Sun platforms
- RoHS and WEEE compliant for environmental safety
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | KL1508AiM |
| Brand Name | ATEN |
| Product Name | 8-Port 17in. Dual Rail CAT5 LCD KVM Over the Net |
| Product Type | LCD Rack Console |
| Technical Information | |
| KVM Switch | Yes |
| KVM Technology | Digital |
| Number of Computers Supported | 8 |
| Daisy Chain | Yes |
| Device Type | LCD Rack Console |
| Display & Graphics | |
| Screen Size | 17" (431.80 mm) |
| Display Screen Type | LCD |
| Screen Mode | UXGA |
| Screen Resolution | 1600 x 1200 |
| Input Devices | |
| Keyboard | Yes |
| Pointing Device Type | TouchPad,Mouse |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| USB | Yes |
| VGA | Yes |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 10 |
| Number of PS/2 Ports | 2 |
| Number of USB Ports | 3 |
| Number of VGA Ports | 1 |
| Power Description | |
| Power Consumption | 31 W,32 W |
| Physical Characteristics | |
| Product Material | Metal |
| Rack Height | 1U |
| Height | 1.73" (44 mm) |
| Width | 18.90" (480 mm) |
| Weight (Approximate) | 35.19 lb (15960 g) |
| Miscellaneous | |
| Package Contents | 8-Port 17in. Dual Rail CAT5 LCD KVM Over the Net 1 x Power Cord 1 x Standard Rack Mount Kit 1 x Firmware Upgrade Cable 1 x User Instructions |
| Platform Supported | PC,Mac,Sun |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
How many computers can the ATEN KL1508AIM KVM console support?
The KL1508AIM supports up to eight computers simultaneously. It uses digital KVM over IP technology via CAT5 connections, allowing remote access and control of each connected server from a single console interface.
What is the screen resolution of the integrated display?
The console features a 17" LCD display with a native resolution of 1600 x 1200 in UXGA mode. This high resolution ensures sharp text and detailed graphics for effective server management and monitoring tasks.
Can this KVM console be mounted in a standard server rack?
Yes, the KL1508AIM is designed for 1U rackmount installation. Its metal chassis measures 1.73" (44 mm) in height and 18.90" (480 mm) in width, fitting seamlessly into standard 19-inch server racks with the included mounting kit.
What types of ports are available for connectivity?
The console includes ten RJ-45 network ports for KVM over IP, three USB ports for peripherals, two PS/2 ports for legacy input devices, one VGA port for local display output, and a dedicated management port for remote configuration.
Does this KVM support daisy chaining for expanded access?
Yes, the KL1508AIM supports daisy chaining, allowing you to connect multiple units for scalable server management. This feature extends the number of accessible computers beyond the base eight ports, ideal for growing data center environments.
