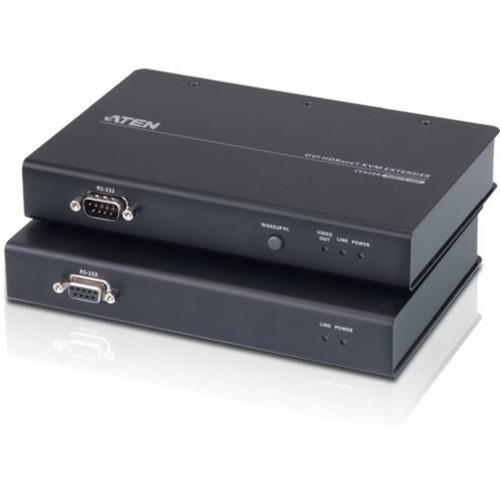

Aten CE620 USB DVI HDBaseT 2.0 KVM Extender - 1920 x 1200 WUXGA @ 100 m - 492.13 ft Range - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The CE620 leverages HDBaseT 2.0 standards to transmit uncompressed video, audio, USB, and RS-232 signals over Cat5e/6/6a Ethernet cabling. This eliminates the need for multiple dedicated cables, reducing clutter and simplifying cable management. The extender supports 2-channel PCM digital audio for high-quality sound transmission alongside video, and includes integrated USB 2.0 ports to ensure fast data transfer for peripherals like keyboards, mice, and storage devices.
Advanced error correction and EDID buffer technology maintain signal integrity across extended distances, preventing display issues during power-up and ensuring consistent video quality. Built-in ESD protection safeguards against electrostatic discharge up to 8KV contact and 15KV air voltage, enhancing durability in electrically noisy environments. The system operates on 5V DC power and includes a PC Wakeup function that allows remote power management via pushbutton or hotkey.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Remote Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The CE620 stands out with its combination of extended reach, high-resolution support, and robust connectivity. By consolidating multiple signal types over a single Ethernet cable, it reduces installation complexity and cost while maintaining professional-grade performance. The rack-mountable design and included mounting kits facilitate seamless integration into server racks or AV cabinets, supporting organized and scalable deployments.
Long-Distance Performance
Delivers 1920x1200 video up to 100 meters in Standard mode and 1920x1080 up to 150 meters in Long Reach mode, with reliable signal integrity across the entire range.
- HDBaseT Standard mode: 1920x1200 @ 100 m
- HDBaseT Long Reach mode: 1920x1080 @ 150 m
- Enhanced error correction for interference resistance
Comprehensive Connectivity
Supports DVI video, USB 2.0 peripherals, and 2-channel audio, with dedicated ports for headphone and microphone to accommodate full multimedia setups.
- 4 USB ports for peripherals
- 2 DVI ports for video
- Audio in/out for headphone and microphone
Deployment / Use Cases
This KVM extender is tailored for environments where source equipment and user stations are physically separated. In data centers, it allows administrators to control servers from a centralized console room without compromising video quality or peripheral functionality. For digital signage networks, it enables content management from a secure location while displays are installed in public areas, simplifying maintenance and updates.
In educational or corporate settings, the CE620 facilitates lecture hall and conference room setups by extending computer signals from a tech closet to multiple displays and input devices. Its rack-mountable form factor and included mounting kits make it easy to install in standard 19-inch racks, ensuring a tidy and professional appearance. The extender also supports RS-232 serial control, allowing integration with automation systems for advanced AV management.
Data Center Server Management
Extend KVM control from server racks to a centralized admin station, reducing cable clutter and improving accessibility for IT staff.
Digital Signage and AV Integration
Manage content playback from a secure location while displays are mounted in lobbies, retail spaces, or auditoriums, with reliable long-distance signal transmission.
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box solution.
Highlights
- Extends DVI video, USB 2.0, audio, and RS-232 signals over a single Ethernet cable
- Supports 1920x1200 WUXGA resolution at up to 100 meters in HDBaseT Standard mode
- Includes both local transmitter and remote receiver units for complete extension
- Rack-mountable design with included mounting kits for easy installation
- Features 4 USB ports and 2 DVI ports for comprehensive peripheral connectivity
- Built-in ESD protection up to 8KV contact and 15KV air voltage for durability
- PC Wakeup function allows remote power management via pushbutton or hotkey
- Enhanced error correction ensures reliable signal transmission over long distances
- Supports 2-channel PCM digital audio for high-quality sound
- Comes with a 2-year limited warranty and complies with RoHS and WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CE620 |
| Brand Name | ATEN |
| Product Model | CE620 |
| Product Name | USB DVI HDBaseT 2.0 KVM Extender (1920 x 1200@100 m) |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 492.13 ft (150000 mm) |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Headphone | Yes |
| Microphone | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 |
| Number of DVI Ports | 2 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.13" (28.70 mm) |
| Transmitter Width | 4.83" (122.68 mm) |
| Transmitter Depth | 7.17" (182.12 mm) |
| Receiver Height | 1.13" (28.70 mm) |
| Receiver Width | 4.83" (122.68 mm) |
| Receiver Depth | 7.17" (182.12 mm) |
| Transmitter Weight (Approximate) | 1.39 lb (630 g) |
| Receiver Weight (Approximate) | 1.41 lb (640 g) |
| Miscellaneous | |
| Package Contents | 1 x CE620L USB DVI HDBaseT 2.0 KVM Extender (Local Unit) 1 x CE620R USB DVI HDBaseT 2.0 KVM Extender (Remote Unit) 1 x Custom DVI KVM Cable Set 2 x Power Adapters 2 x Mounting Kits 8 x Foot Pads 1 x User Instructions |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance this KVM extender supports?
The ATEN CE620 supports a maximum operating distance of 492.13 feet (150 meters) in HDBaseT Standard mode at 1920x1200 resolution. It also offers a Long Reach mode that extends 1920x1080 video up to 150 meters, providing flexibility for different installation requirements. Both modes use a single Ethernet cable for signal transmission.
What video resolutions does the CE620 support?
This extender supports a maximum video resolution of 1920x1200 in WUXGA graphic mode. In HDBaseT Standard mode, it delivers this resolution at up to 100 meters, while Long Reach mode supports 1920x1080 at up to 150 meters. The EDID buffer ensures compatibility with various displays for smooth operation.
How many USB and DVI ports are included?
The CE620 provides 4 USB 2.0 ports and 2 DVI ports across its local and remote units. These ports allow connection of peripherals like keyboards, mice, and storage devices, alongside DVI video sources and displays, enabling comprehensive control and multimedia functionality.
Is this extender rack-mountable?
Yes, the CE620 is designed for rack-mountable installation. Both the local transmitter and remote receiver units feature a form factor suitable for standard 19-inch racks, and the package includes mounting kits to facilitate secure and organized deployment in server rooms or AV cabinets.
What type of audio support does the CE620 offer?
The extender supports 2-channel PCM digital audio, ensuring high-quality audio transmissions alongside video. It includes dedicated headphone and microphone ports, allowing full audio connectivity for applications like conferencing, multimedia playback, or system alerts.
Does the CE620 include any protection features?
Yes, the CE620 incorporates built-in ESD protection rated at 8KV contact voltage and 15KV air voltage, safeguarding against electrostatic discharge in electrically noisy environments. It also features enhanced bit error detection and correction to resist signal interference during high-quality video transmissions.
