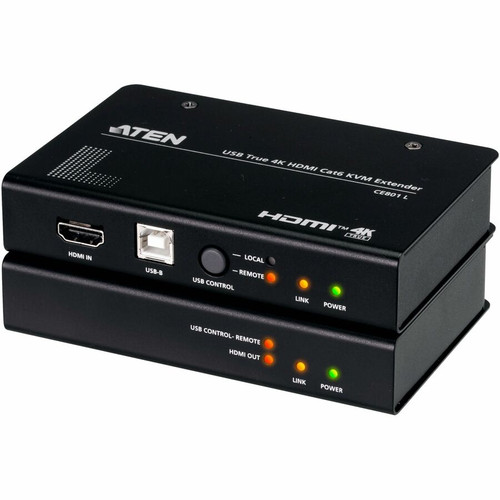

Aten CE801 USB True 4K HDMI Cat 6 KVM Extender - 4K @ 70 m / FHD @ 100 m Range - 3 HDMI - 2 RJ-45 - 5 USB Ports
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM extender utilizes HDMI as the host interface, with three HDMI ports available for connecting multiple displays or source devices. The system includes two RJ-45 network ports that carry the extended signals over Cat 6 cable, plus five USB ports for connecting keyboards, mice, and other USB 2.0 peripherals at the remote location.
The CE801 operates on 5V DC power with minimal 2.59W consumption, supporting energy-efficient deployments. Both transmitter and receiver units feature compact dimensions suitable for rack mounting, with the transmitter measuring 3.23" wide x 0.98" high and the receiver at 3.21" wide x 0.98" high.
Relevant factors for this section include Connectivity Technology, Maximum Operating Distance, Device Type, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The CE801 delivers true 4K extension without compression artifacts, maintaining the original video quality across extended distances. This makes it ideal for applications where visual fidelity cannot be compromised, such as medical imaging, broadcast monitoring, or detailed design work.
Simultaneous Signal Extension

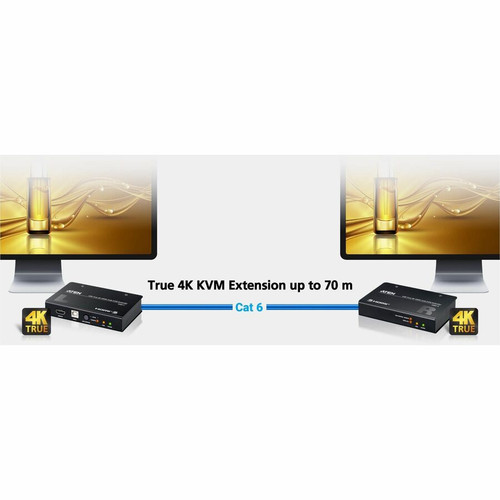

Extends HDMI video, USB data, and keyboard/mouse control simultaneously over a single Cat 6 cable, reducing cable clutter and simplifying installation.
- Video: 4K @ 70m / FHD @ 100m
- USB: 5 ports for peripherals
- Control: Keyboard/mouse over distance
Professional Deployment Ready
Rack-mountable design with included mounting kits allows for clean integration into server racks, AV cabinets, and equipment rooms.
- Form factor: Rack-mountable
- Includes: 2 mounting kits
- Low profile: <1" height
Deployment / Use Cases
The ATEN CE801 is engineered for scenarios where computing equipment must be physically separated from user workstations or displays. In data centers, it allows administrators to control servers from a centralized console room while keeping noisy equipment in isolated racks. For digital signage networks, it enables content playback from secure equipment rooms to displays in public areas.
In educational and corporate environments, the extender supports lecture halls and training rooms where instructors need to control presentation systems from podium locations distant from projection equipment. Security operations centers benefit from extending surveillance monitor feeds to analyst workstations while keeping recording equipment in controlled access areas.
Control Room Applications
Extend operator workstations away from equipment racks in broadcast, transportation, or industrial control environments.
Digital Signage Distribution
Distribute 4K content from centralized media players to multiple displays throughout retail, hospitality, or corporate campuses.
What's in the Box
The CE801 package includes everything needed for immediate deployment of a complete KVM extension system.
Highlights
- Extends 4K HDMI video up to 70 meters over Cat 6 cable
- Supports Full HD extension up to 100 meters (328 feet)
- Three HDMI ports for multiple display connections
- Five USB 2.0 ports for keyboard, mouse, and peripheral extension
- Two RJ-45 ports for Cat 6 cable connection between units
- Rack-mountable design with included mounting hardware
- Low power consumption at 2.59W per unit
- Compact transmitter and receiver units under 1 inch height
- Includes both local and remote units for complete system
- Wired connectivity ensures reliable, interference-free operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CE801 |
| Brand Name | ATEN |
| Product Name | USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m / FHD @ 100 m) |
| Product Type | KVM Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Host Interface | HDMI |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 3 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
| Power Description | |
| Input Voltage | 5 V DC |
| Power Consumption | 2.59 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Height | 0.98" (24.89 mm) |
| Transmitter Width | 3.23" (82.04 mm) |
| Receiver Height | 0.98" (24.89 mm) |
| Receiver Width | 3.21" (81.53 mm) |
| Transmitter Weight (Approximate) | 11.29 oz (320 g) |
| Receiver Weight (Approximate) | 10.93 oz (310 g) |
| Miscellaneous | |
| Package Contents | CE801L USB True 4K HDMI Cat 6 KVM Extender (Local Unit) CE801R USB True 4K HDMI Cat 6 KVM Extender (Remote Unit) 1 x USB Type-A to USB Type-B cable 2 x Mounting Kits 1 x Foot Pad Set (8 pcs) 2 x Power Adapters 1 x User Instructions |
User Manual
FAQ
What type of cable does the CE801 KVM Extender require for connection between units?
The CE801 requires standard Cat 6 Ethernet cable to connect the transmitter and receiver units. This cable carries the extended HDMI video, USB data, and keyboard/mouse signals between the local and remote locations. The system supports distances up to 100 meters (328 feet) for Full HD content and 70 meters for 4K content using quality Cat 6 cable.
What video resolutions does this KVM extender support?
This extender supports 4K Ultra HD resolution at 3840 x 2160 pixels, which it can extend up to 70 meters. For Full HD content (1920 x 1080), it supports extension up to 100 meters. The graphic mode is specifically 4K, ensuring high-quality video transmission for demanding visual applications.
How many devices can I connect to the USB ports on this extender?
The CE801 provides five USB 2.0 ports for connecting keyboards, mice, and other USB peripherals at the remote location. These ports allow you to extend control of multiple devices over the Cat 6 connection, enabling complete workstation functionality at the extended location without requiring local computing equipment.
Can this KVM extender be mounted in a server rack?
Yes, both the transmitter and receiver units are designed for rack mounting and include two mounting kits in the package. The compact form factor with 0.98-inch height allows for efficient use of rack space, making this system ideal for data center, control room, and equipment room installations where organized equipment placement is essential.
What power requirements does the CE801 have?
Each unit operates on 5V DC power with a power consumption of 2.59W. The package includes two power adapters, one for the transmitter and one for the receiver. This low power consumption makes the system energy-efficient and suitable for always-on deployments in professional environments.
What is included in the package with the CE801 KVM Extender?
The complete package includes the CE801L local unit (transmitter), CE801R remote unit (receiver), one USB Type-A to USB Type-B cable for local computer connection, two mounting kits for rack installation, one foot pad set with eight pieces for desktop placement, two power adapters, and user instructions. This provides everything needed for immediate deployment.
