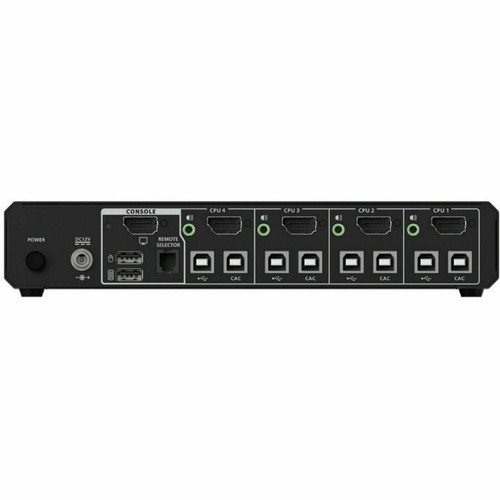

Aten CS1184DPH4C 4-Port USB 5K KVM Switch - 5120 x 2880 @60Hz - 11 USB - 5 HDMI - 5 DisplayPort - Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switch delivers advanced video handling through ATEN's proprietary Video DynaSync technology, which automatically optimizes display resolutions when switching between connected computers and eliminates common boot-up display problems. The unit supports analog audio output for speaker connectivity, enhancing multimedia compatibility.

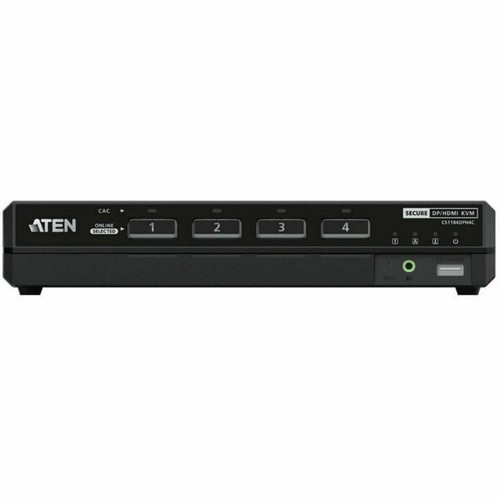

Port configuration is managed through physical pushbuttons or an optional Remote Port Selector (RPS), providing flexible control options while maintaining security through hardware-based switching. LED indicators provide clear status feedback for peripheral filtering and overall KVM security status.
This section brings together practical product details such as Connectivity Technology, Number of Computers Supported, Features, Graphic Mode, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages

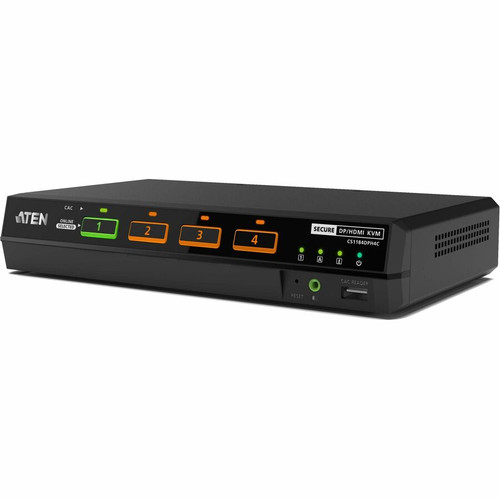

The CS1184DPH4C combines high-resolution video support with enterprise-grade security features, making it ideal for classified or multi-level security environments. Configurable port LED colors and port name labels allow administrators to visually distinguish between ports connected to different security classification levels, reducing configuration errors.
Enhanced Security Controls
Supports enable/disable CAC function by port and features intrusion detection with tamper-proof design. Port selection is restricted to pushbuttons or RPS only, preventing unauthorized switching.
- Port-based CAC control
- Intrusion detection
- Tamper-proof construction
Superior Video Performance
Delivers 5K resolution at 60Hz with automatic resolution optimization through Video DynaSync technology, ensuring consistent display quality across all connected sources.
- 5K @ 60Hz support
- Automatic resolution optimization
- Eliminates boot-up display issues
Deployment / Use Cases
This KVM switch is engineered for environments where multiple computers must be accessed from a single console with uncompromised security and video quality. Government facilities with TAA compliance requirements benefit from its secure design and certification, while financial institutions appreciate the high-resolution support for multi-monitor trading setups.
The desktop form factor makes it suitable for office environments, control rooms, and secure workstations where rack mounting isn't required. IT administrators can deploy it in server rooms for local management of multiple servers, or in design studios where artists need to switch between rendering workstations and review stations without sacrificing visual fidelity.
Secure Government/Enterprise
Ideal for TAA-compliant installations requiring secure multi-computer access with clear audit trails and physical security controls.
High-Resolution Workstations
Perfect for graphics design, video editing, and financial trading environments where 5K resolution and reliable source switching are essential.
Physical Profile
The CS1184DPH4C features a compact desktop design measuring 9.65" (245.11 mm) in length, 5.65" (143.51 mm) in width, and 1.69" (42.93 mm) in height. Its 2.67 lb (1210 g) weight makes it portable for temporary installations while the rugged metal enclosure ensures durability in demanding environments. The included foot pad set provides stable placement on various surfaces.
- Width
- 5.65" (143.51 mm)
- Height
- 1.69" (42.93 mm)
- Weight
- 2.67 lb (1210 g)
- Length
- 9.65" (245.11 mm)
What's in the Box
The package includes all necessary components for immediate deployment and secure operation.
Highlights
- Supports 4 computers with 5K resolution (5120x2880 @60Hz)
- 11 USB ports for comprehensive peripheral connectivity
- 5 HDMI and 5 DisplayPort combo connectors
- Video DynaSync technology eliminates boot-up display problems
- Configurable port LED colors and port name labels
- Port-based CAC function enable/disable support
- Intrusion detection and tamper-proof security features
- Rugged metal desktop enclosure
- TAA compliant for government procurement
- 24-month limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1184DPH4C |
| Brand Name | ATEN |
| Product Model | CS1184DPH4C |
| Product Name | CS1184DPH4C KVM Switchbox |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 4 |
| Features | LED Indicator,Intrusion Detection,Tamper Proof,Video DynaSync |
| Video | |
| Graphic Mode | 5K |
| Maximum Video Resolution | 5120 x 2880 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 11 |
| Number of HDMI Ports | 5 |
| Number of DisplayPorts | 5 |
| Power Description | |
| Input Voltage Range | 100-240V |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.69" (42.93 mm) |
| Width | 5.65" (143.51 mm) |
| Length | 9.65" (245.11 mm) |
| Weight (Approximate) | 2.67 lb (1210 g) |
| Miscellaneous | |
| Package Contents | CS1184DPH4C KVM Switchbox 1x Power adapter 1x Foot pad set 1x Port name labels 1x HDMI cable lock set 1x User instructions |
| Compatibility | KVM cables: 2L-7D02UDPX4 2L-7D02UH21X4 2L-7D02UHX4 2L-7D03UDPX4 2L-7D03UHX4 |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 24 Month |
User Manual
FAQ
What video resolution does this KVM switch support?
The ATEN CS1184DPH4C supports up to 5K resolution at 5120 x 2880 pixels with a 60Hz refresh rate. This ultra-high definition capability makes it suitable for graphics workstations, financial trading desks, and other applications requiring detailed visual clarity across multiple connected computers.
How many computers can I connect to this KVM switch?
This is a 4-port KVM switch, allowing you to connect and control four separate computers from a single console. Each computer connection supports both HDMI and DisplayPort video interfaces through dedicated combo connectors, along with USB connectivity for peripherals.
What security features does this KVM switch include?
The CS1184DPH4C includes multiple security features: intrusion detection, tamper-proof construction, port-based CAC function control, configurable port LED colors and labels for security level identification, and port selection restricted to physical pushbuttons or Remote Port Selector only. These features make it suitable for classified environments.
What is Video DynaSync technology?
Video DynaSync is ATEN's proprietary technology that automatically optimizes display resolutions when switching between different connected computers. It eliminates common boot-up display problems and ensures consistent video quality regardless of source device variations, providing a seamless user experience during computer switching.
What cables are compatible with this KVM switch?
The switch is compatible with specific ATEN KVM cables including models 2L-7D02UDPX4, 2L-7D02UH21X4, 2L-7D02UHX4, 2L-7D03UDPX4, and 2L-7D03UHX4. These cables are designed to work with the switch's combo connectors and ensure proper signal transmission for both video and USB peripherals.
Is this KVM switch TAA compliant?
Yes, the ATEN CS1184DPH4C is TAA (Trade Agreements Act) compliant, making it suitable for U.S. government procurement and other environments requiring compliance with federal acquisition regulations. The switch is manufactured in Taiwan and meets all TAA requirements for eligible products.
