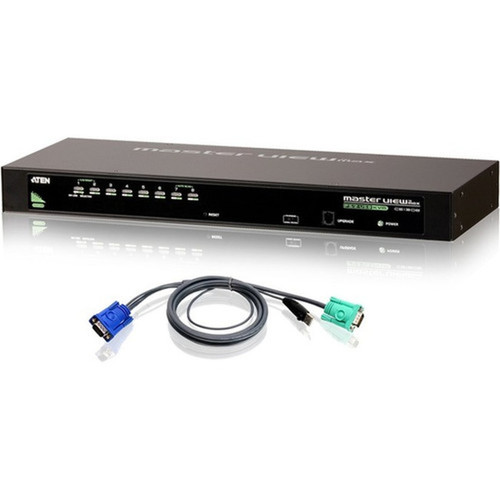

Aten CS1308KIT 8-Port PS/2-USB VGA KVM Switch - 1U Rack-mountable with 2048 x 1536 Resolution
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The CS1308KIT operates with a QXGA graphic mode and supports video resolutions up to 2048 x 1536, ensuring high-quality display output for administrative tasks. It features auto-detection for PS/2 and USB interfaces, eliminating the need for manual configuration when connecting different computer types. The switch includes a management port for enhanced control and monitoring capabilities.
This KVM switch measures 1.73 inches in height, 6.35 inches in width, and 17.21 inches in depth, fitting standard 1U rack spaces. It weighs approximately 4.16 pounds, making it lightweight yet durable for rack installation. The unit is environmentally friendly and comes with a 2-year limited warranty, providing reliability for continuous operation.
Relevant factors for this section include Number of Computers Supported, Features, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aten CS1308KIT offers significant advantages for IT professionals managing multiple systems. Its dual-interface support for PS/2 and USB devices simplifies integration into diverse hardware environments, reducing compatibility issues. The cascading capability expands control to up to 64 computers, making it scalable for growing infrastructure needs without requiring additional consoles.
Enhanced Security
Two-level password security restricts access to authorized users only, with separate profiles for up to four users and an administrator. This ensures that sensitive systems remain protected from unauthorized control.
- Password protection
- User profiles
- Administrator controls
Flexible Control Options
Computer selection can be done via front panel pushbuttons, hotkeys, or a multilingual on-screen display menu. This flexibility allows operators to choose the most efficient method for their workflow.
- Front panel buttons
- Hotkey support
- Multilingual OSD
Deployment / Use Cases
This KVM switch is ideal for server rooms and data centers where space optimization and centralized management are critical. Its 1U rack-mountable design allows for neat installation in standard server racks, conserving valuable rack space while providing easy access to multiple systems. The included cables in various lengths (4 ft., 6 ft., and 10 ft.) accommodate different rack configurations and cable management needs.
In IT labs or educational environments, the CS1308KIT supports multiplatform systems including Windows 2000/XP/Vista, Linux, Mac, and Sun. This makes it suitable for training facilities or development labs with heterogeneous hardware. The switch's ability to emulate USB or PS/2 keyboards and mice ensures that computers boot properly even when the console focus is elsewhere, maintaining system reliability during maintenance or updates.
Physical Profile
The CS1308KIT is designed for rack mounting with a 1U form factor, measuring 1.73 inches in height, 6.35 inches in width, and 17.21 inches in depth. Its compact dimensions ensure it fits seamlessly into standard server racks without occupying excessive space. The unit includes a grounding wire and foot pad set for stable installation, whether rack-mounted or placed on a flat surface. The lightweight construction at 4.16 pounds facilitates easy handling during setup or reconfiguration.
- Width
- 6.35" (161.29 mm)
- Depth
- 17.21" (437.13 mm)
- Height
- 1U
- Weight
- 4.16 lb (1886.94 g)
What's in the Box
The CS1308KIT comes as a complete package with all essential components for immediate deployment.
Highlights
- Controls 8 computers from a single USB-PS/2 console
- Cascades up to 2 levels to manage 64 computers
- Dual interface supports PS/2 and USB keyboards/mice
- Multiplatform compatibility with Windows, Linux, Mac, Sun
- Auto-detection for PS/2 and USB interfaces
- USB/PS/2 emulation ensures computers boot properly
- High video quality up to 2048 x 1536 resolution
- Computer selection via buttons, hotkeys, or OSD menu
- Two-level password security for authorized access
- Includes complete cable set and rack-mount accessories
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1308KIT |
| Brand Name | ATEN |
| Product Model | CS1308KIT |
| Product Name | 8-Port PS/2-USB VGA KVM Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Features | LED Indicator |
| Video | |
| Graphic Mode | QXGA |
| Maximum Video Resolution | 2048 x 1536 |
| Interfaces/Ports | |
| Management Port | Yes |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.73" (43.94 mm) |
| Width | 6.35" (161.29 mm) |
| Depth | 17.21" (437.13 mm) |
| Weight (Approximate) | 4.16 lb (1886.94 g) |
| Miscellaneous | |
| Package Contents | CS1308KIT KVM Switch 1 x Console Cable 1 x Firmware Upgrade Cable 1 x Grounding Wire 1 x Foot Pad Set (4 Pads) 1 x Power Adapter (AC Models) 1 x User Manual 1 x Quick Start Guide 2 x 4 ft. USB KVM Cable 4 x 6 ft. USB KVM Cable 2 x 10 ft. USB KVM Cable |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
How many computers can the Aten CS1308KIT KVM switch control directly?
The CS1308KIT directly controls 8 computers from a single console. Through its cascading capability, it can manage up to 64 computers across two levels, making it scalable for larger setups without needing additional primary switches.
What types of keyboard and mouse interfaces does this KVM switch support?
This switch supports both PS/2 and USB interfaces for keyboards and mice. It features auto-detection to automatically identify the interface type, and it can emulate USB or PS/2 devices to ensure computers boot correctly even when the console is focused elsewhere.
What is the maximum video resolution supported by the CS1308KIT?
The CS1308KIT supports a maximum video resolution of 2048 x 1536 with QXGA graphic mode and DDC2B support. This ensures clear and reliable video output for administrative tasks across all connected computers.
Can this KVM switch be installed in a server rack?
Yes, the CS1308KIT is designed for rack mounting with a 1U form factor. It measures 1.73 inches in height, fitting standard server racks, and includes a grounding wire and foot pads for stable installation in rack or desktop configurations.
What security features does the CS1308KIT offer for controlled access?
The CS1308KIT provides two-level password security, restricting access to authorized users only. It supports up to four users and an administrator, each with separate profiles, ensuring that sensitive systems are protected from unauthorized control.
What connectivity or interface options are available?
Connectivity details help confirm how Aten CS1308KIT KVM Switch - 8 x 1 - 8 x SPHD-15 Keyboard/Mouse/Video - 1U - Rack-mountable (CS1308KIT) can integrate with your network, accessories, and surrounding peripherals before rollout or replacement planning.
