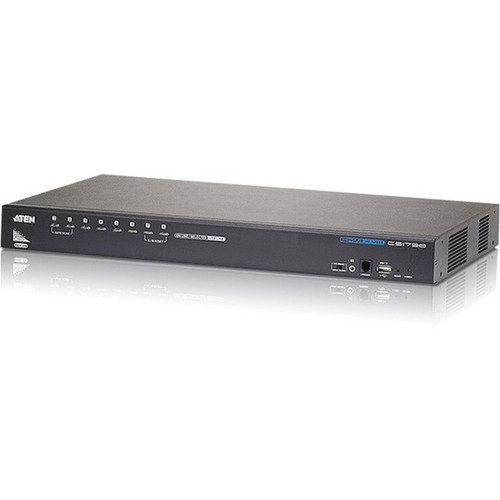

Aten CS1798 8-Port USB HDMI KVM Switch - Rack-Mountable - 1920 x 1200 WUXGA - 8 Computers - 1 Local User
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The CS1798 delivers professional-grade KVM switching with precise technical specifications. It supports a maximum video resolution of 1920x1200 in WUXGA mode, ensuring clear and detailed display output across all connected computers. The switch features nine HDMI ports for video connectivity, twelve USB ports for peripheral management, and one network RJ-45 port for remote access and control.
Control methods include front panel pushbuttons, hotkeys, and a multilingual on-screen display (OSD) for intuitive navigation. The OSD Backup/Restore feature allows administrators to save and restore switch configurations and user profiles. Firmware upgradability ensures long-term compatibility and performance enhancements. The independent switching of KVM and USB focus provides flexible management of computing resources and connected devices.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ATEN CS1798 offers several distinct advantages for efficient multi-computer management. Its cascading capability allows expansion to three levels, supporting control of up to 512 computers, making it scalable for growing IT environments. The Multi-Display feature enables stacking up to eight CS1798 units to display video from up to eight monitors, supporting dual, triple, quad, and multi-display configurations.
Video DynaSync Technology
ATEN's exclusive Video DynaSync technology resolves common display problems during boot-up and optimizes resolution when switching between KVM ports, ensuring a stable and consistent visual experience.
- Eliminates boot-up display issues
- Optimizes resolution switching
- Reduces screen flicker and distortion
Flexible Control Options
The switch provides multiple control methods for seamless operation, including front panel pushbuttons, customizable hotkeys, and a multilingual on-screen display that supports various user preferences.
- Front panel pushbuttons
- Hotkey support
- Multilingual OSD
Deployment / Use Cases
The CS1798 is ideal for environments requiring centralized control of multiple HDMI computers. In data centers and server rooms, it simplifies management of rack-mounted servers, reducing clutter and improving accessibility. For broadcasting and media production studios, the switch facilitates control of editing workstations and playback systems, supporting high-resolution video workflows.
Educational institutions and corporate IT labs benefit from the ability to manage multiple student or employee computers from a single instructor console. The rack-mountable design and cascading capabilities make it suitable for scalable deployments in network operations centers and security monitoring facilities. The included custom USB HDMI KVM cable sets ensure reliable connectivity right from installation.
Data Center Server Management
Centralize control of up to eight HDMI servers in a rack-mountable form factor, reducing cable clutter and improving operational efficiency in high-density server environments.
Multi-Monitor Workstations
Support multi-display configurations by stacking units, enabling video output to up to eight monitors for complex visualization tasks in design, engineering, or financial trading.
Physical Profile
The CS1798 features a robust rack-mountable form factor with dimensions of 4.40 inches in height, 25.66 inches in width, and 43.72 inches in depth. Its weight of approximately 7.69 pounds ensures stability in rack installations. The design includes a foot pad set for optional desktop placement, providing flexibility in deployment scenarios. The rack mounting kit is included for secure installation in standard server racks, making it ready for integration into existing infrastructure.
- Width
- 25.66" (651.76 mm)
- Depth
- 43.72" (1110.49 mm)
- Height
- 4.40" (111.76 mm)
- Weight
- 7.69 lb (3490 g)
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- Controls up to eight HDMI computers from one USB console
- Supports WUXGA resolution up to 1920x1200
- Cascadable to three levels for up to 512 computers
- Multi-Display feature for stacking up to eight units
- Built-in 2-port USB 2.0 hub
- Computer selection via front panel, hotkeys, and multilingual OSD
- Independent switching of KVM and USB focus
- OSD Backup/Restore for configuration management
- Firmware upgradable for future enhancements
- Video DynaSync technology eliminates boot-up display issues
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1798 |
| Brand Name | ATEN |
| Product Model | CS1798 |
| Product Name | 8-Port USB HDMI KVM Switch |
| Product Type | KM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 12 |
| Number of HDMI Ports | 9 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 4.40" (111.76 mm) |
| Width | 25.66" (651.76 mm) |
| Depth | 43.72" (1110.49 mm) |
| Weight (Approximate) | 7.69 lb (3490 g) |
| Miscellaneous | |
| Package Contents | 8-Port USB HDMI KVM Switch Rack Mounting Kit 2 x Custom USB HDMI KVM Cable Sets (2L7D02UH) 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Foot Pad Set (4 pcs) 1 x Quick Start Guide |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
User Manual
FAQ
How many computers can the ATEN CS1798 KVM switch support?
The ATEN CS1798 supports up to eight computers directly. Additionally, it can be cascaded up to three levels, allowing control of up to 512 computers when multiple units are connected in a cascaded configuration. This scalability makes it suitable for expanding IT environments and large-scale deployments.
What is the maximum video resolution supported by this KVM switch?
The CS1798 supports a maximum video resolution of 1920 x 1200 in WUXGA graphic mode. This resolution ensures detailed and clear display output for connected computers, making it suitable for professional applications that require high-definition visual clarity.
Can this KVM switch be rack-mounted?
Yes, the CS1798 features a rack-mountable form factor and includes a rack mounting kit in the package. Its dimensions of 4.40 inches height, 25.66 inches width, and 43.72 inches depth are designed for standard server racks, providing a secure and organized installation in data centers or server rooms.
What control methods are available for switching between computers?
The switch offers three primary control methods: front panel pushbuttons for direct port selection, customizable hotkeys for keyboard-based switching, and a multilingual on-screen display (OSD) for intuitive navigation. These options provide flexibility to suit different user preferences and operational workflows.
Does the CS1798 include cables for connecting computers?
Yes, the package includes two custom USB HDMI KVM cable sets (model 2L7D02UH). These cables are specifically designed for reliable connectivity between the switch and computers, ensuring optimal performance and reducing the need for additional purchases.
What is Video DynaSync technology and how does it benefit users?
Video DynaSync is ATEN's exclusive technology that eliminates common boot-up display problems and optimizes resolution when switching between KVM ports. It reduces screen flicker, distortion, and synchronization issues, providing a stable and consistent visual experience during computer switching operations.
