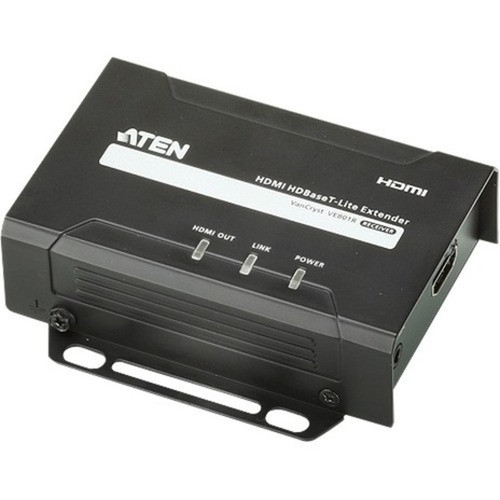

Aten VE801R HDMI HDBaseT-Lite Receiver - HDBaseT Class B Video Extender - 4K 4096 x 2160 - 70. 87" (1800 mm) Range - 2x RJ-45 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The VE801R operates as a wired connectivity solution that extends HDMI signals over a single Cat 5e, Cat 6, Cat 6a, or ATEN 2L-2910 Cat 6 cable. This receiver supports one output device and delivers plug-and-play functionality without requiring complex configuration or software installation.
Video performance includes support for 4K graphics modes with a maximum resolution of 4096 x 2160, along with HDCP 2.2 compliance for protected content playback. The HDBaseT Class B implementation ensures reliable transmission at distances up to 35 meters with Cat 5e/6 cables or 40 meters with Cat 6a or ATEN 2L-2910 Cat 6 cables.
This section brings together practical product details such as Connectivity Technology, Number of Output Devices Supported, Maximum Operating Distance, Graphics Modes, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The VE801R combines extended reach with professional-grade video quality in a compact, rack-mountable form factor. Its HDBaseT anti-jamming technology actively resists signal interference, making it suitable for installations where clean video transmission is critical.
Extended Cable Reach
Transmits HDMI signals up to 70.87" (1800 mm) using standard Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cables, eliminating the distance limitations of traditional HDMI cables.
- Supports 4K@35m with Cat 5e/6
- Extends to 4K@40m with Cat 6a or ATEN 2L-2910 Cat 6
Professional Installation Ready
Designed with rack-mountable form factor and compact dimensions for seamless integration into AV racks and equipment cabinets.
- Dimensions: 3.43" × 3.88" × 1.18" (87 × 98.60 × 30 mm)
- Lightweight at 240 g
Comprehensive Compatibility
Supports HDMI features including 3D and Deep Color while maintaining HDCP 2.2 compliance for protected content playback across compatible sources and displays.
Deployment / Use Cases
The VE801R HDMI HDBaseT-Lite Receiver is ideal for professional AV installations requiring extended HDMI connectivity without signal degradation. Its compact design and reliable performance make it suitable for conference rooms, digital signage deployments, educational facilities, and residential home theater systems.
Common deployment scenarios include extending 4K video signals from media players or computers to displays in separate rooms, connecting source equipment in equipment racks to wall-mounted displays, and integrating with existing structured cabling infrastructure for simplified installation. The receiver's compatibility with standard twisted-pair cables reduces installation costs compared to specialized HDMI extension solutions.
Conference Room AV
Extend laptop or media player HDMI outputs to ceiling-mounted projectors or wall displays while maintaining 4K video quality and HDCP compliance for presentations and video conferences.
Digital Signage Networks
Connect media players in secure equipment rooms to displays in retail spaces, lobbies, or public areas using existing Cat 6 infrastructure for simplified cabling and maintenance.
What's in the Box
The package includes all necessary components for immediate deployment of the HDMI HDBaseT-Lite extender system.
Highlights
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
- Supports 4K resolution at 4096 x 2160 with HDCP 2.2 compliance
- HDBaseT anti-jamming technology resists signal interference
- Maximum operating distance of 70.87" (1800 mm)
- Plug-and-play operation without software installation
- Rack-mountable form factor for professional installations
- Two RJ-45 network ports for flexible connectivity
- Compact dimensions: 3.43" × 3.88" × 1.18" (87 × 98.60 × 30 mm)
- Environmentally friendly construction
- Manufactured in Taiwan with ATEN quality assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE801R |
| Brand Name | ATEN |
| Product Line | VanCryst |
| Product Model | VE801R |
| Product Name | HDMI HDBaseT-Lite Receiver (HDBaseT Class B) |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 70.87" (1800 mm) |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a |
| Physical Characteristics | |
| Receiver Height | 1.18" (30 mm) |
| Receiver Width | 3.43" (87 mm) |
| Receiver Depth | 3.88" (98.60 mm) |
| Form Factor | Rack-mountable |
| Receiver Weight (Approximate) | 240 g |
| Miscellaneous | |
| Package Contents | VE801R HDMI HDBaseT-Lite Extender 1 x Power Adapters 1 x User Instructions |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
User Manual
FAQ
What is the maximum distance this HDMI extender can transmit 4K video?
The ATEN VE801R HDMI HDBaseT-Lite Receiver can transmit 4K video up to 70.87 inches (1800 mm) using compatible cabling. With Cat 5e or Cat 6 cables, it supports 4K resolution at distances up to 35 meters, while Cat 6a or ATEN 2L-2910 Cat 6 cables extend this to 40 meters for maximum flexibility in installation scenarios.
What types of cables are compatible with this HDMI extender?
This receiver is compatible with standard twisted-pair cables including Cat 5e, Cat 6, and Cat 6a, as well as the ATEN 2L-2910 Cat 6 cable. The device supports Category 6a cable standard for optimal performance, allowing installers to use existing structured cabling infrastructure rather than requiring specialized HDMI extension cables.
Does this receiver support HDCP 2.2 for protected content?
Yes, the ATEN VE801R is HDCP 2.2 compliant, ensuring compatibility with protected 4K content from sources such as Blu-ray players, streaming devices, and gaming consoles. This compliance allows for seamless playback of copyright-protected material without signal interruption or quality degradation during transmission.
How many devices can be connected to this HDMI extender receiver?
The VE801R supports one output device through its single HDMI output port. The receiver is designed as part of an extender system where it receives signals from a compatible transmitter unit, making it ideal for point-to-point video extension applications rather than distribution to multiple displays.
Is this receiver rack-mountable for professional installations?
Yes, the VE801R features a rack-mountable form factor with compact dimensions of 3.43" wide × 3.88" deep × 1.18" high (87 × 98.60 × 30 mm). This design allows for secure installation in standard equipment racks, making it suitable for commercial AV deployments, conference rooms, and digital signage installations where organized equipment mounting is required.
What video resolutions and features does this extender support?
The receiver supports 4K graphics modes with a maximum video resolution of 4096 x 2160. It maintains full HDMI feature compatibility including 3D video and Deep Color support. The HDBaseT technology ensures reliable transmission of these high-quality video signals while providing anti-jamming protection against interference during transmission.
What resolution or display format is specified?
It features a display specification of 4096 x 2160, giving you clear visuals for work and media use.
