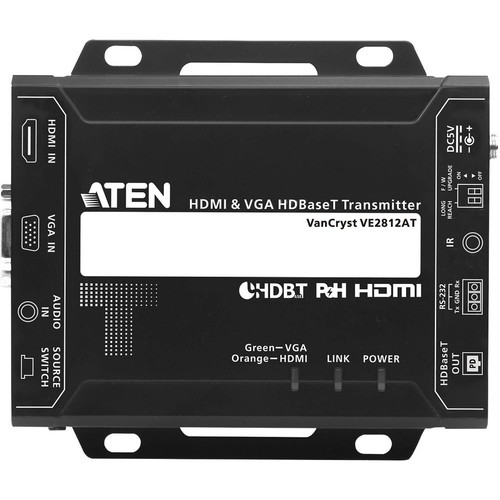

ATEN HDMI & VGA HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A) - 2 Input Device - 492.13 ft (150000 mm) Range - 1 x Network (VE2812AT)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- HDMI & VGA HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A)
- 1 x RS-232 Terminal Block
- 4 x Foot Pads
- 1 x Power Adapter
- 1 x User Instructions
Connectivity Technology: Wired
Number of Input Devices Supported: 2
Maximum Operating Distance: 492.13 ft (150000 mm)
Graphics Modes: 4K UHD
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI In: Yes
VGA In: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Inputs: 1
Number of VGA Inputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Transmitter Height: 1.18" (30 mm)
Transmitter Width: 4.84" (123 mm)
Transmitter Depth: 5.64" (143.20 mm)
Form Factor: Desktop,Rack-mountable
Transmitter Weight (Approximate): 1.04 lb (470 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Extends HDMI or VGA signals, providing superior video quality: : HDMI: 4K / 1080p at distance up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable : VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep color, 4K); HDCP compatible
- Supports HDBaseT Long Reach Mode - up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Built-in PoH (Power over HDBaseT) function - the VE2812AT receives power supply from the HDBaseT output port on the connected device
- Supports Auto Switch - allows the VE2812AT to automatically switch to a newly plugged-in source
- Functions as a switch or a converter: : A Switch: Connects two sources (HDMI or VGA) : A converter: Applies receivers with different interface (DVI, DisplayPort,or HDMI)
- RS-232 Channel Transmission - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Compatible Receivers - VE2812R, VE1812R, VE811R, VE814AR, VE801R, VE802R, VE601R, VE901R, or future ATEN HDBaseT Receivers
- Plug-and-play with no software installation required
- Rack mountable
[custom-specifications]
| Specifications | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE2812AT |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | VanCryst |
| Product Model | VE2812AT |
| Product Name | HDMI & VGA HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A) |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Maximum Operating Distance | 492.13 ft (150000 mm) |
| Video | |
| Graphics Modes | 4K UHD |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| VGA In | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of VGA Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a |
| Physical Characteristics | |
| Transmitter Height | 1.18" (30 mm) |
| Transmitter Width | 4.84" (123 mm) |
| Transmitter Depth | 5.64" (143.20 mm) |
| Form Factor | Desktop,Rack-mountable |
| Transmitter Weight (Approximate) | 1.04 lb (470 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
