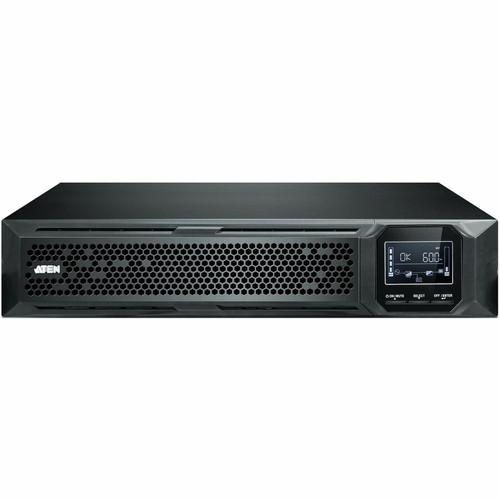

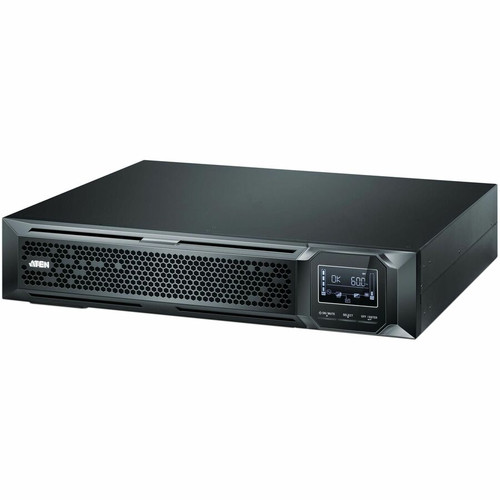

Aten OL2000LV Professional 2000VA Rack/Tower UPS - 2U Form Factor - 120V AC Input - Sine Wave - 8 Outlets - 3 Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS provides full isolation from utility power issues, converting AC to DC and back to AC with a pure sine wave output. It maintains output voltage regulation within 1% for superior performance in sensitive applications. The transfer time is 4 ms, ensuring seamless switchover to battery power without interrupting connected equipment.
Power efficiency reaches 97% in Eco Mode, reducing energy consumption and operational costs. The unit includes a high-power-factor charger with up to 1000W capacity and low ripple current for optimal battery health. Input voltage range is wide, accepting 80-150V AC and 55-150V AC, while output frequencies support both 50 Hz and 60 Hz systems.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ATEN OL2000LV UPS combines robust power protection with advanced management features for reliable operation in demanding environments. Its hot-swappable battery design allows maintenance or replacement without shutting down connected equipment, maximizing uptime. The smart battery charger adjusts charging voltage based on ambient temperature to extend battery service life.
Programmable Power Management
Users can independently control outlet groups to prioritize mission-critical devices during outages, extending battery runtime by shutting down non-essential loads.
Multiple Communication Options
SNMP, USB, and RS-232 interfaces enable remote monitoring and management via network or direct connection, with simultaneous operation for flexible integration.
Comprehensive Protection
Includes surge suppression, over-voltage cut-off, and MOV-based surge immunity for full-time equipment safety, along with an audible alarm and cold-start function.
Deployment / Use Cases
This UPS is ideal for protecting critical IT infrastructure where power quality and uptime are paramount. Its 2U rack-mount design fits standard server cabinets, making it a natural fit for data centers, server rooms, and network operations centers. The included tower stand set also allows for standalone deployment in office settings or smaller IT closets.
Typical applications include backing up desktop computers, servers, networking switches, and storage systems. The programmable outlets enable users to segment loads, ensuring longer runtime for essential devices like network core switches or security appliances during extended outages. The Emergency Power Off (EPO) port supports remote shutdown from a safe location, adding an extra layer of control in emergency situations.
Physical Profile
The UPS measures 20.08" (510 mm) in height, 17.24" (438 mm) in width, and 3.46" (88 mm) in depth, with a 2U rack height for standard cabinet compatibility. It weighs approximately 46.52 lb (21.1 kg), providing a solid, durable build. The rack/tower form factor includes a rail slide kit and rack mounting hardware for secure installation, while the tower stand set offers stability for floor placement.
- Width
- 17.24" (438 mm)
- Height
- 20.08" (510 mm)
- Weight
- 46.52 lb (21100 g)
- Length
- 6 ft (1.83 m)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 2000VA/1930W double-conversion online UPS with pure sine wave output
- 2U rack-mount or tower deployment with included mounting hardware
- Eight NEMA 5-20R battery and surge-protected outlets
- Hot-swappable battery design for maintenance without downtime
- SNMP, USB, and RS-232 management interfaces for remote monitoring
- 97% efficiency in Eco Mode to reduce energy costs
- LCD display shows input voltage, battery status, and estimated runtime
- Programmable outlets allow load prioritization during outages
- 3-hour typical battery recharge time
- Emergency Power Off (EPO) port for remote shutdown capability
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | OL2000LV |
| Brand Name | ATEN |
| Product Line | Professional |
| Product Name | Professional 2000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 4 ms |
| Efficiency Detail | 97% (Eco Mode) |
| Application/Usage | Desktop Computer,Electronic,IT |
| Surge Suppression | Yes |
| Features | Cold Start Function,Audible Alarm |
| Power Description | |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.93 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 80 V AC - 150 V AC,55 V AC - 150 V AC |
| Input Current | 17.60 A |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.97 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Controls/Indicators | |
| Status Indicators | LCD Interface: input voltage battery capacity power status battery status operating status assessed backup runtime |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Number of USB Ports | 1 |
| Battery Information | |
| DC System Voltage | 48 V DC |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 3.19 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Storage Temperature | -4°F (-20°C) - 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 20.08" (510 mm) |
| Width | 17.24" (438 mm) |
| Length | 3.46" (88 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 46.52 lb (21100 g) |
| Miscellaneous | |
| Package Contents | Professional 2000VA Rack/Tower UPS 1 x Rack Mounting Kit 1 x Rail Slide Kit 1 x RS-232 Cable 1 x USB Type A to B Cable 1 x Tower Stand Set |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the power capacity of this UPS?
The ATEN OL2000LV provides 2000VA (2 kVA) and 1930 watts of power capacity. This rating supports a range of IT equipment, including servers, networking gear, and desktop computers, ensuring reliable backup during power interruptions.
How long will the UPS run on battery at full load?
At full load, the backup runtime is 3.19 minutes. At half load, runtime extends to 10 minutes. These figures allow for orderly shutdown of connected equipment or short-term ride-through during brief power outages.
Can this UPS be mounted in a server rack?
Yes, it is designed for both rack and tower use. The 2U form factor fits standard 19-inch server racks, and the package includes a rack mounting kit and rail slides for secure installation. A tower stand set is also provided for standalone placement.
What type of power output does this UPS provide?
It delivers a pure sine wave output, which is essential for sensitive electronic equipment like servers and networking devices. Sine wave power ensures compatibility with active PFC power supplies and reduces the risk of equipment damage or instability.
How many outlets are available, and what type are they?
There are eight NEMA 5-20R outlets, all providing battery backup and surge protection. These outlets are suitable for standard North American plugs and allow multiple devices to be connected and protected simultaneously.
What management and monitoring options are included?
The UPS offers SNMP/HTTP for network-based remote monitoring, plus USB and RS-232 interfaces for direct connection. These options enable real-time status checks, configuration changes, and alerts for power events, ensuring proactive management of your power infrastructure.
What power capacity is listed for this UPS?
The listed power specification is 2 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 8, which helps buyers understand how many connected devices it can support in its intended deployment.
