Aten CE990 USB True 4K DisplayPort/HDMI Optical KVM Extender - 10 km Fiber - 4K @ 60 Hz - 1 Local & 1 Remote User - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for reliable long-distance operation, the CE990 uses fiber optic cabling to extend DisplayPort/HDMI video, keyboard/mouse control, stereo and embedded audio, RS-232 serial control, and USB 2.0 signals. The system consists of a local transmitter unit and a remote receiver unit, each powered by a 12 V DC adapter and designed for standard 19-inch rack mounting with included kits.
Its dual console operation supports one local and one remote user simultaneously, with configurable privilege modes (Auto/Local and Auto/Remote) for streamlined access management. The built-in USB 2.0 hub provides dedicated ports for keyboard/mouse devices and other peripherals, while hotkey-enabled EDID priority switching allows quick toggling between local and remote display settings.
Key Product Advantages
The CE990 delivers exceptional value for environments requiring uncompromised signal extension over extended ranges. Its fiber optic design eliminates electromagnetic interference and signal degradation, providing a stable, high-bandwidth link suitable for 4K video production, medical imaging, and secure server room access.
Ultra-Long Distance Clarity
Transmits full 4K video, USB, and audio up to 10 kilometers without quality loss, far exceeding copper-based extenders.
- Fiber optic immunity to EMI/RFI
- Supports 4096 x 2160 @ 60 Hz
- Maintains HDCP and HDR10
Flexible Console Management
Dual user operation with privilege modes enables efficient local and remote control, reducing hardware footprint and simplifying workflow.
- Configurable Auto/Local and Auto/Remote modes
- Hotkey EDID priority switching
- Supports wide screen formats
Comprehensive Connectivity
Combines DisplayPort and HDMI support with abundant USB ports and independent audio channels for all-in-one extension.

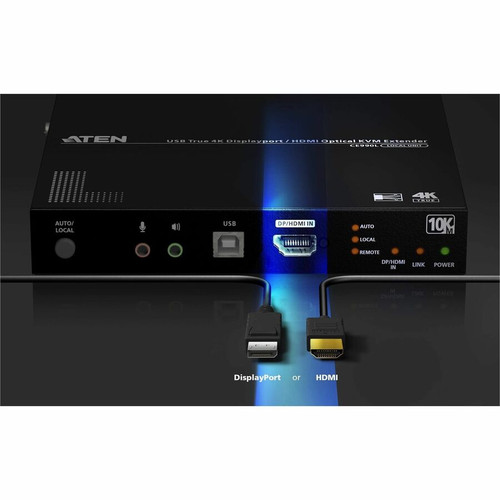

- DisplayPort/HDMI combo connector
- 10 USB ports (2 for KB/MS)
- Dual stereo audio (mic and speaker)
Deployment / Use Cases
This KVM extender is ideal for scenarios where computing equipment must be physically separated from user workstations or control panels. Its 10-kilometer reach and rack-mountable form factor make it a robust choice for centralized server rooms, broadcast studios, digital signage networks, and industrial automation systems where real-time visual feedback and peripheral control are essential.
In data center environments, the CE990 allows administrators to manage servers from a secure, remote location without sacrificing 4K video quality. For broadcast and post-production, it enables high-resolution video monitoring and editing across separate facilities. In industrial settings, it extends control interfaces to hazardous or inaccessible areas while maintaining reliable signal integrity over fiber.
What's in the Box
The package contains all necessary components for immediate setup and operation.
Highlights
- Extends DisplayPort/HDMI video, USB, and audio up to 10 km over fiber optic cabling
- Supports True 4K video at 4096 x 2160 / 3840 x 2160 @ 60 Hz with 4:4:4 chroma
- HDCP 2.2/2.3 compliant and HDR10 enabled for protected, high-quality content
- Dual console operation for one local and one remote user with privilege modes
- DisplayPort/HDMI combo connector provides flexible video interface support
- USB 2.0 hub with 10 total ports (2 dedicated for keyboard/mouse)
- Hotkey-enabled EDID priority switching between local and remote units
- Rack-mountable form factor with included mounting kits
- Dual independent stereo audio channels for microphone and speaker
- Includes SFP modules, cables, and power adapters for complete deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CE990 |
| Brand Name | ATEN |
| Product Name | USB True 4K DisplayPort/HDMI Optical KVM Extender (True 4K @ 10 km) |
| Product Type | KVM Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 32808.40 ft (10000000 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K UHD |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Ports | 3 |
| Number of USB Ports | 10 |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.13" (28.70 mm) |
| Transmitter Width | 6.15" (156.21 mm) |
| Receiver Height | 1.13" (28.70 mm) |
| Receiver Width | 6.15" (156.21 mm) |
| Transmitter Weight (Approximate) | 1.87 lb (850 g) |
| Receiver Weight (Approximate) | 1.85 lb (840 g) |
| Miscellaneous | |
| Package Contents | CE990 USB True 4K DisplayPort / HDMI Optical KVM Extender (Local Unit) CE990 USB True 4K DisplayPort / HDMI Optical KVM Extender (Remote Unit) 1x DisplayPort cable 1x HDMI cable 1x microphone cable 1x speaker cable 1x USB Type-A to USB Type-B cable 2x SFP modules 2x mounting kits 1x foot pad set (8 pcs) 2x power adapters and power cords 3x HDMI combo port cable locks 1x user instructions |
User Manual
FAQ
What is the maximum distance this KVM extender can transmit signals?
The ATEN CE990 extends video, USB, and audio signals up to 32808.40 feet (10,000,000 mm or 10 kilometers) over fiber optic cabling. This ultra-long distance capability makes it suitable for connecting equipment across separate buildings, large campuses, or within extensive data center complexes without signal degradation.
What video resolutions and refresh rates does the CE990 support?
This extender supports True 4K video at a maximum resolution of 4096 x 2160 or 3840 x 2160 with a 60 Hz refresh rate and 4:4:4 chroma sampling. It maintains full HDCP 2.2/2.3 compliance for protected content and includes HDR10 support for enhanced dynamic range and color accuracy in compatible applications.
How many users can operate the system simultaneously?
The CE990 supports dual console operation with one local user and one remote user. It features configurable privilege modes (Auto/Local and Auto/Remote) that streamline access management, allowing administrators to define control priorities and switch between local and remote access efficiently via hotkey commands.
What types of connectors and ports are available on this extender?
The unit includes a DisplayPort/HDMI combo connector that supports both video interfaces, three HDMI ports, and ten USB 2.0 ports (with two dedicated for keyboard/mouse devices). It also provides separate microphone and speaker audio connections, RS-232 serial control, and uses SFP modules for fiber optic connectivity.
Is this KVM extender rack-mountable?
Yes, both the transmitter and receiver units are designed for standard 19-inch rack mounting. The package includes two mounting kits and a foot pad set for flexible installation options, allowing the system to be integrated into server racks, broadcast consoles, or industrial control panels with a low-profile footprint.
What is included in the package for setup and installation?
The package contains the local transmitter unit, remote receiver unit, DisplayPort and HDMI cables, microphone and speaker cables, a USB Type-A to Type-B cable, two SFP modules, two mounting kits, a foot pad set, two power adapters with cords, three HDMI combo port cable locks, and user instructions for complete out-of-box deployment.
