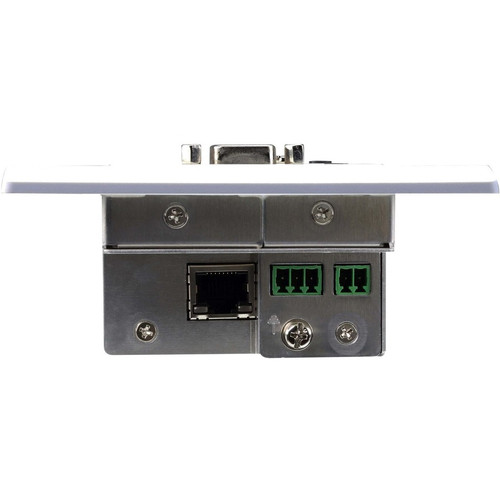

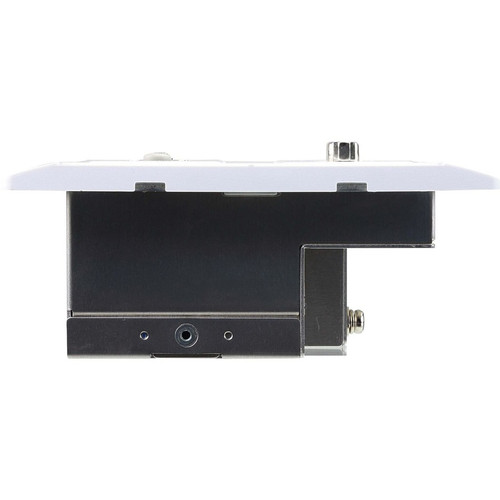

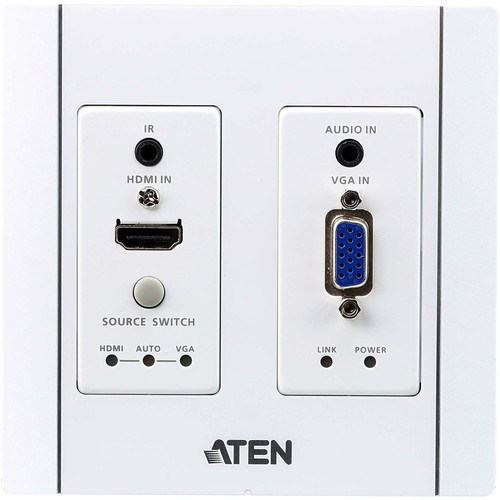

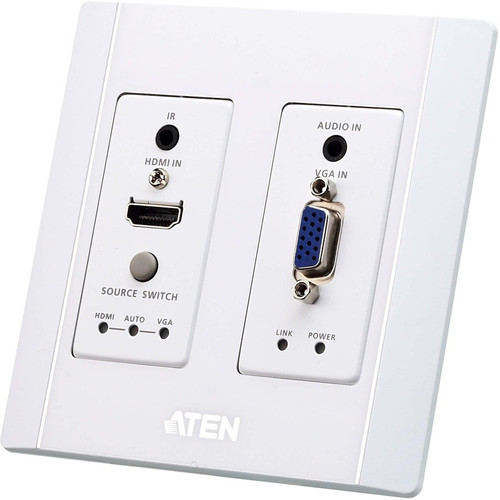

Aten VE2812AUST Video Extender Transmitter - 2 Inputs - 492 ft Range - 4K/Full HD - HDMI/VGA/RJ-45
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The VE2812AUST delivers high-fidelity video extension with support for 4K (4096 x 2160) and Full HD graphics modes, ensuring crisp, detailed imagery across extended runs. It operates over twisted-pair Category 6a cable, which provides stable transmission up to 492.13 feet (150 meters) without signal degradation.
Connectivity is handled through dedicated ports: one HDMI input, one VGA input, and one RJ-45 network port. This wired design eliminates wireless interference concerns, offering a dependable link for presentations, broadcasts, and monitoring applications. The transmitter’s internal processing maintains signal integrity across the entire operating distance.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Maximum Operating Distance, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This extender transmitter stands out for its combination of long-range performance, high-resolution support, and installation flexibility. It simplifies AV system design by reducing cable clutter and enabling centralized source management.
Long-Distance Clarity
Extend 4K and Full HD signals up to 492 feet without quality loss, ideal for large venues and distributed displays.
- Uses standard Cat6a cable
- Maintains signal integrity over full range
Versatile Input Support
Connect both modern HDMI and legacy VGA sources alongside network feeds, accommodating mixed equipment environments.
- HDMI for digital sources
- VGA for older projectors or monitors
Installation Flexibility
Mount on walls, embed in wall plates, or place on tables, adapting to various room layouts and aesthetic requirements.
- Low-profile design
- Multiple mounting options
Deployment / Use Cases
The VE2812AUST is engineered for professional AV scenarios where source equipment must be located far from displays or projectors. Its reliable wired extension makes it a go-to choice for environments that demand consistent performance.
In corporate boardrooms and training facilities, it allows presenters to connect laptops or media players from a central podium while displaying content on remote screens. For digital signage networks, it enables centralized media players to drive multiple displays across a building without running bulky HDMI cables. In control rooms and security monitoring setups, it extends video feeds from cameras or computers to large video walls, ensuring operators have clear, real-time visuals.
Highlights
- Extends video signals up to 492.13 feet (150 meters) over Cat6a cable
- Supports 4K resolution (4096 x 2160) and Full HD graphics modes
- Accepts two input sources: HDMI and VGA, plus RJ-45 network
- Wired connectivity ensures stable, interference-free transmission
- Compact design with wall plate, wall mount, and table mount options
- Dimensions: 3.46" W x 4.10" D x 2.04" H, weight 7.41 oz
- Ideal for conference rooms, digital signage, and control rooms
- Uses standard twisted-pair cable for easy integration
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE2812AUST |
| Brand Name | ATEN |
| Product Model | VE2812AUST |
| Product Name | VE2812AUST Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Maximum Operating Distance | 492.13 ft (150000 mm) |
| Video | |
| Graphics Modes | 4K,Full HD |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| VGA In | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of VGA Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a |
| Physical Characteristics | |
| Transmitter Height | 2.04" (51.90 mm) |
| Transmitter Width | 3.46" (87.90 mm) |
| Transmitter Depth | 4.10" (104.20 mm) |
| Form Factor | Wall Plate,Wall Mountable,Table Mount |
| Transmitter Weight (Approximate) | 7.41 oz (210 g) |
User Manual
FAQ
What is the maximum distance this video extender transmitter can cover?
The ATEN VE2812AUST extends video and network signals up to 492.13 feet (150 meters) when using Category 6a twisted-pair cable. This long-range capability makes it suitable for large venues like auditoriums, warehouses, or distributed digital signage networks where source equipment is far from displays.
What video resolutions does the VE2812AUST support?
This transmitter supports up to 4K resolution at 4096 x 2160, along with Full HD modes. It handles high-definition graphics without compression artifacts, ensuring crisp imagery for presentations, broadcasts, and monitoring applications across the extended distance.
What types of inputs does this extender transmitter accept?
It accepts two input devices through dedicated ports: one HDMI input for modern digital sources like laptops or media players, and one VGA input for legacy analog devices such as older projectors. Additionally, it includes one RJ-45 network port for data transmission over the same cable run.
What kind of cable is required for installation?
The VE2812AUST requires Category 6a twisted-pair cable (Cat6a) to achieve its maximum operating distance of 492 feet. This standard network cable is widely available and easy to terminate, simplifying installation compared to specialty AV cables while providing reliable signal integrity.
How can this transmitter be mounted or installed?
It offers multiple mounting options: as a wall plate for flush installation, wall mountable for surface attachment, or table mount for portable setups. Its compact dimensions (3.46" W x 4.10" D x 2.04" H) allow discreet placement in AV racks, behind displays, or on presentation podiums.
Is this a wireless or wired video extender?
This is a wired video extender transmitter, using Cat6a cable for connectivity. Wired operation eliminates interference concerns common in wireless systems, providing a stable, secure link ideal for professional environments where reliability is critical, such as boardrooms or control centers.
