Aten VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder - Rack-Mountable - 18 Gbps - HDR
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

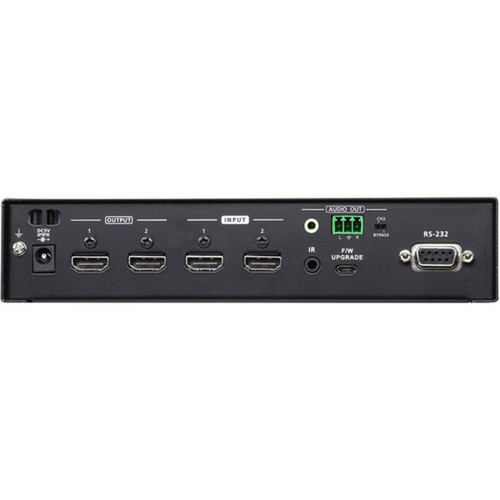

This HDMI matrix switch operates with cable-based connectivity, supporting up to two input devices and two displays simultaneously. It delivers 4K graphics modes at a native resolution of 4096 x 2160, ensuring compatibility with ultra-high-definition content sources. The unit includes two HDMI inputs and two HDMI outputs, plus one USB port for auxiliary connectivity, all housed in a durable rack-mountable chassis.
Advanced video processing supports Consumer Electronics Control (CEC), enabling interconnected HDMI devices to communicate and respond to a single remote control. The switch maintains signal integrity over distances up to 5 meters, making it suitable for medium-range installations. Its compact dimensions—1.65" height, 7.87" width, and 2.99" depth—allow for efficient rack space utilization, with an approximate weight of 1.32 lb for easy handling.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The VM0202HB stands out with its audio de-embedding functionality, which separates audio from HDMI signals for output to external audio systems—ideal for setups requiring independent audio routing. This feature, combined with support for high-quality audio formats like Dolby True HD and DTS HD Master Audio, ensures immersive sound experiences alongside stunning 4K visuals.
Flexible Control

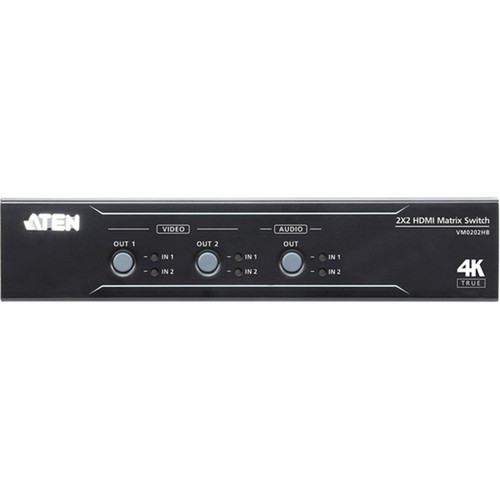

Manage the switch through front-panel buttons, an included IR remote, or RS-232 serial commands, offering adaptability for both manual and automated AV systems.
- IR remote included
- RS-232 for integration
- Front-panel intuitive controls
High-Performance Video
Delivers True 4K resolution with HDR and 4:4:4 color sampling, maintaining image quality for professional presentations, digital signage, and home theater applications.
- True 4K up to 4096 x 2160
- HDR compatibility
- 60Hz refresh rate
Deployment / Use Cases

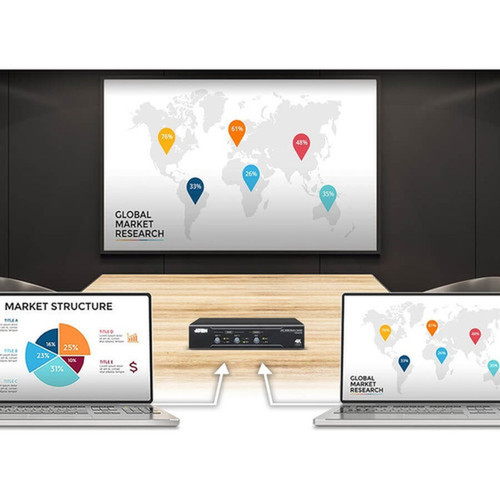

This matrix switch is ideal for environments requiring dynamic source-to-display routing, such as conference rooms, retail displays, command centers, and residential home theaters. In corporate settings, it allows presenters to switch between laptops and media players across multiple screens without manual cable swapping. For digital signage deployments, it enables content rotation from two sources to two displays, enhancing engagement with varied media.
In home entertainment systems, the switch supports seamless switching between gaming consoles, streaming devices, and Blu-ray players to different TVs or projectors. The rack-mountable design makes it suitable for AV racks in integrated installations, while the audio de-embedder facilitates connection to surround sound systems or audio processors. Its auto-switching feature reduces setup complexity, automatically detecting active sources for plug-and-play convenience.
Commercial AV
Use in boardrooms or training facilities to route presentation sources to multiple displays, supporting high-resolution content for clear visuals.
- 2x2 matrix flexibility
- 4K for detailed graphics
- Rack-mountable for tidy installs
Residential Integration
Integrate into home theaters to switch between media sources, with audio extraction for enhanced sound systems and CEC for unified control.
- Audio de-embedding for soundbars
- HDR for movie watching
- IR remote for easy use
Physical Profile
The switch features a sleek, rack-mountable form factor with dimensions of 1.65" (42 mm) in height, 7.87" (200 mm) in width, and 2.99" (76 mm) in depth, designed to fit standard 19-inch racks using the included mount kit. Its compact build minimizes space usage while providing robust connectivity. Weighing approximately 1.32 lb (600 g), it is lightweight yet durable, suitable for both permanent installations and portable setups. The front panel includes intuitive controls for manual operation, and the unit is backed by a 3-year limited warranty for reliable performance.
- Width
- 7.87" (200 mm)
- Depth
- 2.99" (76 mm)
- Height
- 1.65" (42 mm)
- Weight
- 1.32 lb (600 g)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- Connects 2 HDMI sources to any 2 HDMI displays for flexible routing
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz with HDR and 4:4:4 chroma
- Audio de-embedder extracts HDMI audio to stereo or line-out outputs
- Maximum data rate of 18.0 Gbps (6.0 Gbps per lane) for high-bandwidth content
- Auto-switching detects and switches to new sources upon connection
- Multiple control methods: front-panel pushbuttons, IR remote, and RS-232 serial
- HDCP 2.2 compatible with support for 3D, Deep Color, and CEC
- Rack-mountable form factor with compact dimensions for easy installation
- Includes rack mount kit, IR remote, and power adapter for complete setup
- Backed by a 3-year limited warranty for reliable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VM0202HB |
| Brand Name | ATEN |
| Product Model | VM0202HB |
| Product Name | 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 2 |
| Device Supported | Display |
| Number of Displays Supported | 2 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 2 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.65" (42 mm) |
| Width | 7.87" (200 mm) |
| Depth | 2.99" (76 mm) |
| Weight (Approximate) | 1.32 lb (600 g) |
| Miscellaneous | |
| Package Contents | 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder 1 x 3-pole Terminal Block 1 x Power Adapter 1 x IR Remote Control 1 x IR Receiver 1 x Rack Mount Kit 1 x User Instructions |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the maximum video resolution supported by this HDMI matrix switch?
The ATEN VM0202HB supports True 4K video resolutions up to 4096 x 2160 at 60Hz with 4:4:4 chroma sampling. This ensures compatibility with ultra-high-definition content, including HDR formats, for crisp and detailed visuals in professional and home theater environments.
How many HDMI inputs and outputs does this switch have?
This switch features two HDMI inputs and two HDMI outputs, allowing you to connect up to two source devices (e.g., laptops, media players) and route them independently to two displays. This 2x2 matrix configuration provides flexibility for multi-display setups without manual cable changes.
What is audio de-embedding and how does it work in this device?
Audio de-embedding extracts audio signals from the HDMI input and outputs them separately to stereo or line-out audio ports. In the VM0202HB, this allows you to send audio to external sound systems, such as amplifiers or soundbars, while video is routed to displays, enhancing audio quality and integration in AV installations.
What control methods are available for managing the switch?
You can control the switch through three methods: front-panel pushbuttons for manual operation, an included IR remote for wireless control, and RS-232 serial commands for integration into automated AV systems. This versatility supports both simple user interactions and advanced managed environments.
Is this switch rack-mountable and what are its dimensions?
Yes, the switch is designed for rack mounting with included rack mount kit. Its dimensions are 1.65" (42 mm) in height, 7.87" (200 mm) in width, and 2.99" (76 mm) in depth, making it compact for standard 19-inch racks. The approximate weight is 1.32 lb (600 g) for easy installation.
What is included in the package with this HDMI matrix switch?
The package includes the 2x2 True 4K HDMI Matrix Switch with Audio De-Embedder, a 3-pole terminal block, power adapter, IR remote control, IR receiver, rack mount kit, and user instructions. This comprehensive set ensures you have all components needed for immediate setup and operation in various installations.
