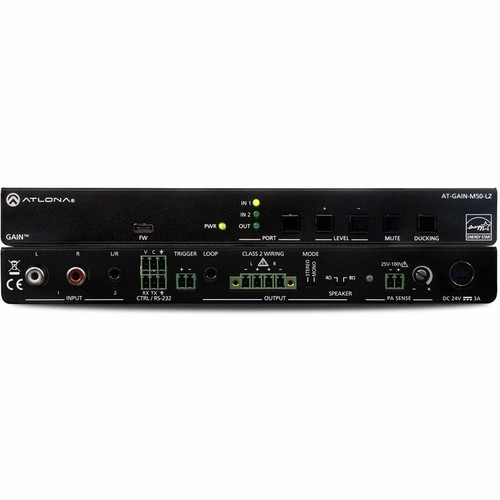

Atlona 2 Channel 50 W RMS Amplifier USB Enabled 20 Hz To kHz 64.30 AT-GAIN-M50-LZ
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Minimum Frequency Response: 20 Hz
Maximum Frequency Response: 20 kHz
Impedance: 8 Ohm
Classification: D
Features: Digital Signal Processing
Audio Channels: 2
RMS Output Power: 50 W
USB: Yes
Number of Analog Audio Inputs: 2
Input Voltage: 120 V AC,230 V AC,41 V DC
Operating Power Consumption: 64.30 W
Height: 1.02" (26 mm)
Width: 8.62" (219 mm)
Depth: 5.98" (152 mm)
Weight (Approximate): 1.94 lb (880 g)
Energy Star: Yes
Country of Origin: China
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- Two-Input mixer amplifier
- 2 x 25 watts (stereo) or 1 x 50 watts (bridged) @ 4/8 ohms output
- Duck audio on input 1 when signal detected on input 2
- Mute audio with PA sense or contact closure
- RS-232 control for integration with control systems
- Compact, plenum rated enclosure
- Optional AT-GAIN-VOL volume control wallplate
[custom-specifications]
| Specifications | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-GAIN-M50-LZ |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Model | AT-GAIN-M50-LZ |
| Product Name | Mixer Amplifier - 50 Watts |
| Product Type | Amplifier |
| Technical Information | |
| Minimum Frequency Response | 20 Hz |
| Maximum Frequency Response | 20 kHz |
| Impedance | 8 Ohm |
| Classification | D |
| Features | Digital Signal Processing |
| Audio | |
| Audio Channels | 2 |
| RMS Output Power | 50 W |
| Interfaces/Ports | |
| USB | Yes |
| Number of Analog Audio Inputs | 2 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC,41 V DC |
| Operating Power Consumption | 64.30 W |
| Physical Characteristics | |
| Height | 1.02" (26 mm) |
| Width | 8.62" (219 mm) |
| Depth | 5.98" (152 mm) |
| Weight (Approximate) | 1.94 lb (880 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
