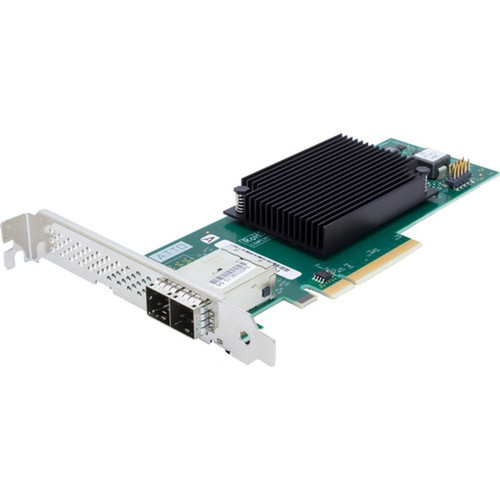

ATTO ESAH-1280-GT0 ExpressSAS GT Host Bus Adapter - 8 External Port 12Gb/s SAS/SATA - PCIe 4.0 x 8 Plug-in Card with RAID Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The ATTO ExpressSAS GT ESAH-1280-GT0 host bus adapter delivers enterprise-grade storage connectivity with eight external 12Gb/s SAS/SATA ports through a high-bandwidth PCI Express 4.0 x8 interface. Designed for demanding data processing environments, this plug-in card enables scalable external storage expansion with hardware RAID support for data protection.
Built on ATTO's ExpressSAS GT platform, this adapter addresses the availability and performance requirements of modern storage infrastructures. The PCIe 4.0 architecture provides increased bandwidth that reduces data transfer bottlenecks, improving overall system efficiency while supporting extensive operating system compatibility across Windows, Linux, and macOS environments.
Relevant factors for this section include Host Interface, Controller Type, RAID Supported, Total Number of SAS Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This SAS controller implements a 12Gb/s SAS interface that supports both SAS and SATA devices simultaneously through eight external SFF-8644 connectors. The PCI Express 4.0 x8 host interface delivers maximum theoretical bandwidth of approximately 16GB/s, ensuring minimal latency for high-density storage configurations.
Hardware RAID acceleration supports levels 0, 1, 1E, and 10 without consuming host CPU resources. The controller's firmware includes ATTO's performance optimization features that maintain data integrity during intensive I/O operations across supported enterprise operating systems.
Relevant factors for this section include Host Interface, Controller Type, RAID Supported, Total Number of SAS Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ExpressSAS GT adapter combines high port density with next-generation PCIe 4.0 bandwidth to address scalability challenges in storage-intensive applications. ATTO's hardware engineering delivers reliable performance with built-in data protection features that require no additional software licensing costs.
High-Density Connectivity
Eight external ports provide extensive storage expansion capabilities for servers and workstations requiring multiple direct-attached storage arrays.
- Supports SAS and SATA devices
- SFF-8644 external connectors
- 12Gb/s per port throughput
Performance Engineered
PCIe 4.0 interface doubles available bandwidth compared to previous generations, reducing data transfer bottlenecks in high-throughput environments.
- 16GB/s theoretical bandwidth
- Hardware acceleration
- Optimized firmware algorithms
Enterprise Reliability
Extensively tested hardware with comprehensive operating system support ensures stable operation across diverse IT environments.
- 3-year limited warranty
- RoHS compliant construction
- Broad OS compatibility
Deployment / Use Cases
This host bus adapter serves as a connectivity solution for expanding external storage capacity in servers, workstations, and specialized computing systems. The eight external ports support daisy-chaining multiple storage enclosures or connecting individual drives for high-capacity direct-attached storage configurations.
Ideal applications include video editing workstations requiring fast access to large media libraries, research computing systems with extensive data acquisition requirements, and server environments needing additional external storage beyond internal bay limitations. The hardware RAID support provides data protection for critical storage arrays without compromising performance.
Media Production Workflows
Connect multiple high-speed storage arrays for simultaneous access to large video files during editing and rendering processes.
Research Data Acquisition
Support extensive sensor data collection and analysis systems requiring high-throughput storage connectivity for real-time processing.
Highlights
- Eight external 12Gb/s SAS/SATA ports for high-density storage connectivity
- PCI Express 4.0 x8 interface delivers maximum bandwidth for data-intensive applications
- Hardware RAID support for levels 0, 1, 1E, and 10 with no additional software costs
- Broad operating system compatibility including Windows, Linux, macOS, and FreeBSD
- SFF-8644 connectors provide reliable external storage connections
- Plug-in card form factor installs in standard PCIe slots
- RoHS compliant construction meets environmental standards
- 3-year limited warranty supports enterprise deployment confidence
Specifications
| Specifications | |
|---|---|
| Manufacturer | Atto Technology |
| Manufacturer Part Number | ESAH-1280-GT0 |
| Brand Name | ATTO |
| Product Line | ExpressSAS |
| Product Model | ESAH-1280-GT0 |
| Product Name | 8 External Port 12Gb/s SAS/SATA to PCIe 4.0 Host Bus Adapter |
| Product Type | SAS Controller |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0,1,1E,10 |
| Operating System Supported | Windows,CentOS,FreeBSD OS,macOS,SuSE Linux Enterprise Server,Windows Server,Red Hat Enterprise Linux,illumos,Fedora |
| Interfaces/Ports | |
| Total Number of SAS Ports | 8 |
| Number of SAS Ports (External) | 8 |
| SAS Connector Details | SFF-8644 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Miscellaneous | |
| Platform Supported | PC,Linux,Mac |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What types of storage devices can I connect to this SAS controller?
The ATTO ESAH-1280-GT0 supports both SAS (Serial Attached SCSI) and SATA (Serial ATA) storage devices through its eight external 12Gb/s ports. You can connect individual drives, multi-drive enclosures, or storage arrays that utilize SFF-8644 connectors. The controller automatically detects and configures connected devices, supporting mixed environments with both SAS and SATA drives simultaneously.
What RAID configurations does this host bus adapter support?
This adapter provides hardware RAID support for levels 0 (striping), 1 (mirroring), 1E (enhanced mirroring), and 10 (striped mirroring). The hardware-based RAID implementation offloads parity calculations from the host CPU, maintaining performance during RAID operations. These configurations offer different balances of performance, capacity, and data protection suitable for various storage requirements.
Which operating systems are compatible with this SAS controller?
The controller supports Windows (desktop and server editions), multiple Linux distributions including CentOS, Red Hat Enterprise Linux, SuSE Linux Enterprise Server, and Fedora, macOS, FreeBSD, and illumos. ATTO provides certified drivers for these operating systems, ensuring stable operation across diverse IT environments from workstations to enterprise servers.
What is the advantage of PCI Express 4.0 for this storage controller?
PCI Express 4.0 doubles the bandwidth per lane compared to PCIe 3.0, with the x8 interface providing approximately 16GB/s of theoretical bandwidth. This increased throughput reduces potential bottlenecks when multiple high-speed storage devices operate simultaneously, particularly important for the eight 12Gb/s SAS ports. The higher bandwidth supports faster data transfers in demanding applications like video editing, scientific computing, and database operations.
How many storage devices can I connect to this adapter?
The adapter provides eight external SAS/SATA ports, each supporting a direct connection to a storage device or enclosure. Through SAS expanders or multi-drive enclosures, you can connect significantly more devices than the eight physical ports. The 12Gb/s per port bandwidth ensures adequate throughput for multiple high-performance drives operating concurrently in expanded configurations.
What type of warranty comes with this host bus adapter?
ATTO provides a 3-year limited warranty for the ESAH-1280-GT0 ExpressSAS GT host bus adapter. This warranty covers defects in materials and workmanship under normal use conditions. The adapter also features RoHS (Restriction of Hazardous Substances) compliant construction, meeting environmental standards for deployment in regulated environments.
