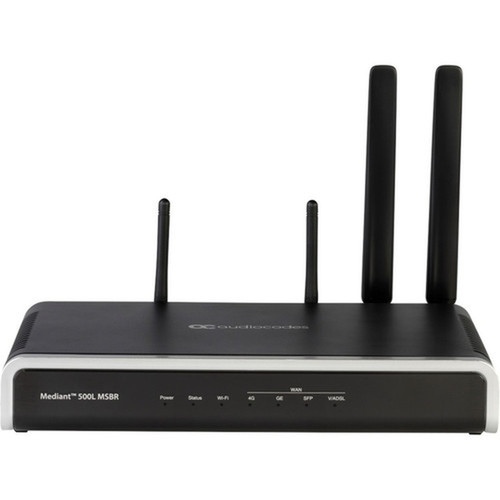

AudioCodes M500L-I-AGECSLE Multi-Service Business Router - VoIP Gateway - Gigabit Ethernet - VDSL2/ADSL2+ - GSM/EDGE/LTE SIM Support - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This router delivers high-performance networking with Gigabit Ethernet (1000Base-T) for fast local data transfer and internet connectivity. It supports VDSL2/ADSL2+ broadband transmission, enabling compatibility with a wide range of DSL services for primary or backup WAN connections.
The integrated cellular module offers GSM, EDGE, and LTE data connectivity, providing a failover option when wired connections are unavailable. An SFP slot allows for fiber optic expansion, while the USB port facilitates additional peripheral connections. The device operates as a VoIP gateway, handling voice-over-IP traffic efficiently across these multiple network interfaces.
Relevant factors for this section include USB, Broadband Transmission Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The M500L-I-AGECSLE combines multiple connectivity technologies into a compact, deployment-ready package, reducing the need for separate devices and simplifying network management.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Multi-Technology Integration, Flexible Deployment.
Multi-Technology Integration
Integrates Gigabit Ethernet, DSL broadband, and cellular data in one device, providing redundancy and flexibility for diverse network environments.
- Primary connectivity via Gigabit Ethernet or VDSL2/ADSL2+
- Cellular backup with GSM/EDGE/LTE support
- SFP slot for fiber expansion
Flexible Deployment
Supports both rack-mount and desktop configurations, allowing seamless integration into existing IT infrastructure without requiring specialized mounting hardware.
- 1U rack-mountable design
- Desktop placement option
- Compact footprint for space-constrained locations
Deployment / Use Cases
This router is ideal for businesses that require reliable VoIP services alongside robust internet connectivity. Its multi-technology approach ensures continuity even if one connection type fails, making it a dependable choice for critical communication applications.
Common deployment scenarios include small office VoIP systems, retail point-of-sale networks, remote branch offices with limited IT support, and locations where cellular backup is necessary for business continuity. The device can serve as the primary gateway for voice traffic while managing data routing across Ethernet, DSL, and cellular interfaces.
Small Office VoIP Gateway
Acts as the central communication device for VoIP phone systems, providing high-quality voice calls over Gigabit Ethernet or DSL connections with cellular failover.
Retail & Hospitality Networks
Supports POS systems and guest Wi-Fi while handling voice communications, with the compact 1U form factor fitting neatly in server closets or behind counters.
Physical Profile
The router features a durable metal chassis designed for both rack-mount and desktop use. With dimensions of 12.20" wide, 8.27" deep, and 1.72" high, it occupies minimal space in a standard 19-inch rack or on a desktop surface. The 1U height maximizes rack density while providing adequate ventilation for continuous operation. Weighing approximately 4.40 lb, the device is substantial enough for stable mounting yet lightweight for easy installation and repositioning.
- Width
- 12.20" (310 mm)
- Depth
- 8.27" (210 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 4.40 lb (1995.81 g)
Highlights
- Gigabit Ethernet (1000Base-T) for high-speed networking
- VDSL2/ADSL2+ broadband transmission technology
- GSM, EDGE, and LTE cellular data connectivity
- SIM card support for cellular network access
- SFP expansion slot for fiber optic connectivity
- USB port for peripheral connections
- 1U rack-mountable form factor
- Desktop deployment option for flexible placement
- Compact dimensions: 12.20"W × 8.27"D × 1.72"H
- Approximate weight: 4.40 lb for easy installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | AudioCodes Limited |
| Manufacturer Part Number | M500L-i-AGECSLE |
| Brand Name | AudioCodes |
| Product Line | Mediant |
| Product Model | 500L |
| Product Name | Multi-Service Business Router |
| Product Type | VoIP Gateway |
| Interfaces/Ports | |
| USB | Yes |
| Media & Performance | |
| Broadband Transmission Technology | VDSL2/ADSL2+ |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| SIM Card Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 1000Base-T |
| Wireless Specifications | |
| Cellular Data Connectivity Technology | GSM,EDGE,LTE |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Desktop |
| Compatible Rack Unit | 1U |
| Height | 1.72" (43.70 mm) |
| Width | 12.20" (310 mm) |
| Depth | 8.27" (210 mm) |
| Weight (Approximate) | 4.40 lb (1995.81 g) |
FAQ
What type of device is the AudioCodes M500L-I-AGECSLE?
The AudioCodes M500L-I-AGECSLE is a Multi-Service Business Router that functions as a VoIP gateway. It integrates voice-over-IP capabilities with data routing across multiple network technologies including Gigabit Ethernet, VDSL2/ADSL2+ broadband, and GSM/EDGE/LTE cellular connectivity in a single 1U rack-mountable unit.
What network connectivity options does this router support?
This router supports three primary connectivity methods: Gigabit Ethernet (1000Base-T) for wired LAN and internet access, VDSL2/ADSL2+ for broadband DSL connections, and GSM/EDGE/LTE cellular data through its integrated module with SIM card support. It also includes an SFP expansion slot for fiber optic connections and a USB port for additional peripherals.
Can this router be used in a rack-mount configuration?
Yes, the router is designed for both rack-mount and desktop deployment. It has a 1U form factor compatible with standard 19-inch racks, with dimensions of 12.20" wide, 8.27" deep, and 1.72" high. The rack-mountable design makes it suitable for server rooms, network closets, or any environment where space optimization is important.
How does the cellular connectivity function on this device?
The router includes built-in support for GSM, EDGE, and LTE cellular networks. It features SIM card compatibility, allowing you to insert a mobile data SIM for internet access. This cellular connectivity serves as a backup or primary WAN connection, providing network redundancy when wired broadband services are unavailable or unreliable.
What is the purpose of the SFP expansion slot?
The SFP (Small Form-factor Pluggable) expansion slot allows for fiber optic network connections. This enables the router to connect to fiber-based networks for higher bandwidth or longer distance connectivity than traditional copper Ethernet. The slot accepts standard SFP modules, providing flexibility to choose the appropriate fiber type and speed for your specific network requirements.
Is this device suitable for small business VoIP systems?
Yes, the M500L-I-AGECSLE is well-suited for small business VoIP deployments. As a VoIP gateway, it handles voice traffic efficiently while providing multiple internet connectivity options. The combination of Gigabit Ethernet, DSL broadband, and cellular backup ensures reliable voice communication even if one connection type fails, making it ideal for businesses that depend on consistent phone service.
