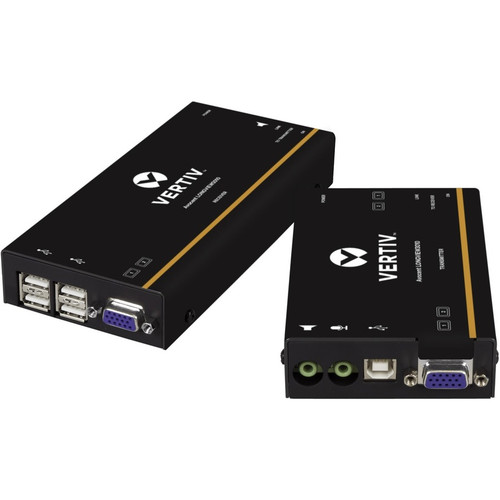

AVOCENT LV3010P-001 KVM Extender Kit - 1000 ft Range - 1920 x 1200 VGA - 2U Rack-Mountable - 1 Computer/User
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM extender operates over wired connections, supporting a single computer with one local and one remote user simultaneously. It features two VGA ports, two RJ-45 network ports, and five USB ports, providing flexibility for various peripheral connections.
Power is supplied via included power supplies with a broad input voltage range of 100-240VAC, ensuring compatibility with international power standards. The transmitter and receiver are both rack-mountable in a 2U form factor, with compact dimensions for efficient space utilization in server racks.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Extended Control Range, High-Quality Video and Audio, Plug-and-Play Simplicity.
Extended Control Range
Operates reliably up to 1000 feet, allowing secure placement of computers away from user areas without sacrificing control quality.
- Uses standard CATx cabling
- Maintains signal integrity over long distances
High-Quality Video and Audio
Delivers crisp 1920x1200 resolution video and clear audio, supporting professional desktop and multi-screen setups.
- WUXGA graphic mode
- Includes 3.5 mm audio cable for sound transmission
Plug-and-Play Simplicity
Installs quickly with no drivers or software required, featuring a local feed-through port for immediate local console access.
- No on-site configuration needed
- Supports isochronous USB devices like webcams and touchscreens
Deployment / Use Cases
This KVM extender is ideal for environments where computing equipment must be secured or isolated from user workspaces, such as data centers, server rooms, or industrial control rooms. It enables IT staff to manage servers and workstations from a central location while keeping hardware in optimized environmental conditions.
Common applications include extending control to training rooms, laboratories, or manufacturing floors where computers need protection from dust, temperature fluctuations, or unauthorized access. The kit's support for USB peripherals makes it suitable for setups requiring webcams, audio interfaces, or specialized input devices.
Data Center Server Management
Allows remote KVM access to servers racked in secure, cooled aisles, improving physical security and thermal management.
Industrial and Control Rooms
Extends control to computers located in harsh or restricted environments, ensuring reliable operation without exposing hardware to risks.
Highlights
- Extends KVM control up to 1000 feet over CATx cabling
- Supports high-resolution 1920x1200 (WUXGA) video
- Includes transmitter and receiver for complete extension kit
- Features 2 VGA ports, 2 RJ-45 ports, and 5 USB ports
- Plug-and-play operation with no drivers or software required
- Rack-mountable 2U form factor for server room integration
- Local feed-through port allows immediate local console access
- Supports USB devices like webcams, audio, and touchscreens
- Broad input voltage range (100-240VAC) for global compatibility
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | LV3010P-001 |
| Brand Name | Vertiv AVOCENT |
| Product Line | LV |
| Product Series | 3000 |
| Product Model | LV3010 |
| Product Name | LV3010 Single VGA KVM Extender |
| Packaged Quantity | 1 |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 1000 ft (304800 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of VGA Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
| Power Description | |
| Input Voltage | 120 V AC,240 V AC |
| Input Voltage Range | 100 - 240VAC |
| Power Consumption | 12 W |
| Physical Characteristics | |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Transmitter Height | 3" (76.20 mm) |
| Transmitter Width | 6.10" (154.94 mm) |
| Transmitter Depth | 1" (25.40 mm) |
| Receiver Height | 3" (76.20 mm) |
| Receiver Width | 6.10" (154.94 mm) |
| Receiver Depth | 1" (25.40 mm) |
| Transmitter Weight (Approximate) | 15.17 oz (430 g) |
| Receiver Weight (Approximate) | 12.35 oz (350 g) |
| Miscellaneous | |
| Platform Supported | PC |
| Country of Origin | United Kingdom |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance this KVM extender supports?
The AVOCENT LV3010P-001 supports a maximum operating distance of 1000 feet (304800 mm) using standard CATx cabling. This allows you to relocate computers to secure locations while maintaining full keyboard, video, and mouse control from a remote console.
What video resolution does this extender support?
This KVM extender supports a maximum video resolution of 1920 x 1200 pixels, which corresponds to the WUXGA graphic mode. It delivers high-quality video for single or multi-screen desktop setups, ensuring clear and detailed display output over extended distances.
How many computers and users can this KVM extender handle?
The extender supports one computer with one local user and one remote user simultaneously. This configuration is ideal for scenarios where both local and remote access to a single computer is needed, such as in server rooms or shared work environments.
What types of ports are available on this KVM extender?
The extender includes two VGA ports for video connections, two RJ-45 network ports for data transmission over CATx cables, and five USB ports for connecting peripherals like keyboards, mice, webcams, and audio devices. This port selection supports comprehensive control and peripheral integration.
Is this KVM extender rack-mountable?
Yes, both the transmitter and receiver units are rack-mountable with a 2U height form factor. This design allows for easy installation in standard server racks, making it suitable for data center and enterprise deployments where space optimization is important.
Does this KVM extender require any software or drivers for installation?
No, the AVOCENT LV3010P-001 features a plug-and-play design that requires no drivers, software, or on-site configuration. It includes a local feed-through port for immediate local console access, simplifying deployment and reducing setup time in various IT environments.
